Summary of Contents for ETLOC ETLOC-50 ONLINE
-
Page 3: Table Of Contents

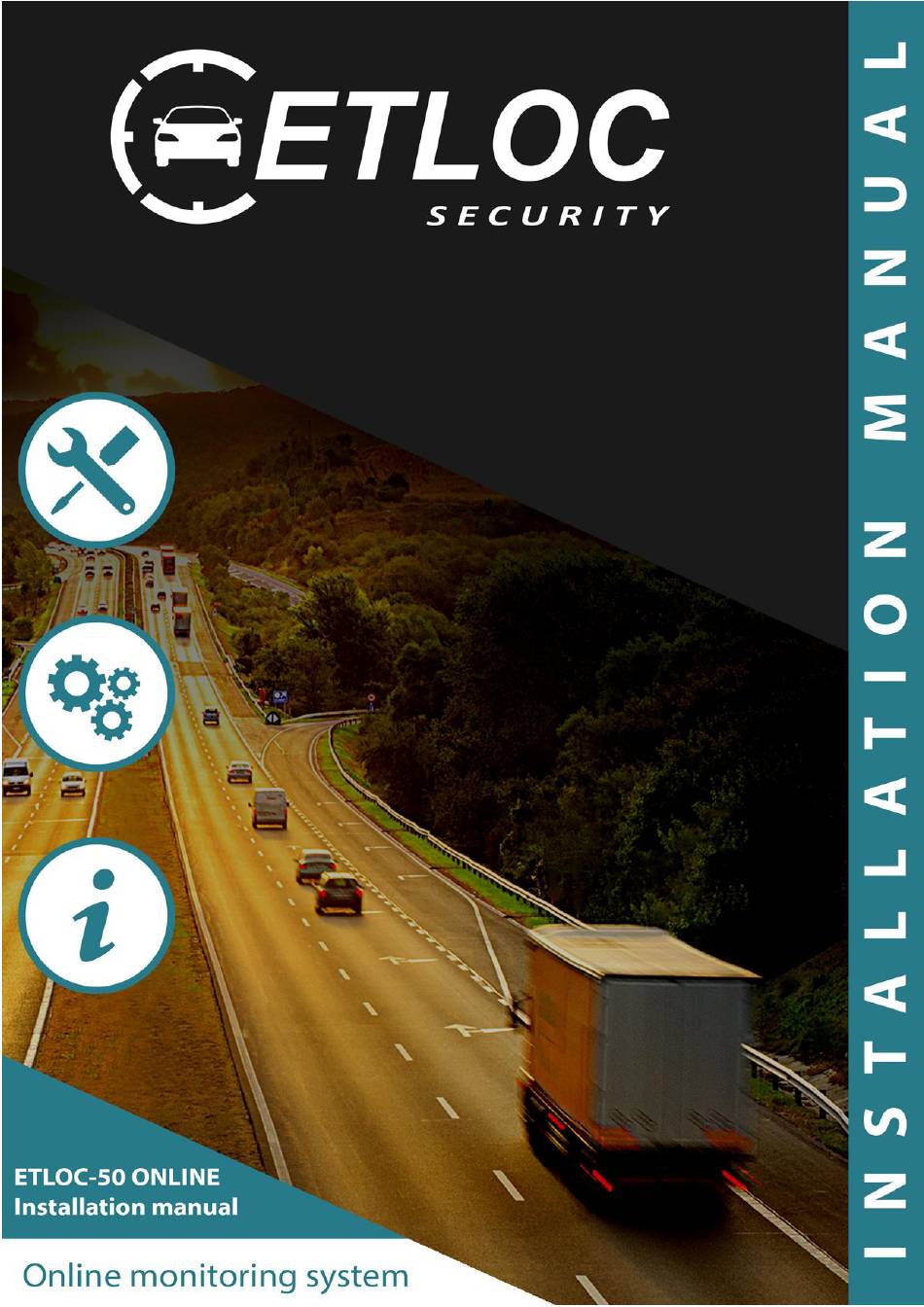

Installation manual (v. 2/2017) Vehicle unit ETLOC-50 ONLINE Contents I. Introduction - basic information II. Vehicle installation 1. Placement of the unit 2. Connecting the wiring 2.1 Input IGNITION 2.2 Input BUSINESS JOURNEY 2.3 Input 3 2.4 Input 4 2.5 Output SWITCHING RELAY 2.6 Output STOP... -
Page 4: Introduction - Basic Information
Vehicle unit ETLOC-50 ONLINE I. Introduction - basic information The vehicle unit ETLOC-50 ONLINE already contains an activated SIM card. Each unit is always paired with a specific vehicle - you can find the information label with the license plate of the vehicle on the box. -
Page 5: Connecting The Wiring
Installation manual (v. 2/2017) Vehicle unit ETLOC-50 ONLINE IMPORTANT The vehicle unit must not be placed in close proximity to solid metal structures (the vehicle unit has an integrated GSM antenna) or in close proximity to other devices with increased electromagnetic radiation (e.g. - Page 6 (yellow wire). Individual wires of the wiring harness must be shortened to the absolutely necessary length. Cut the unused wires at the connector and insulate their ends. Description of the vehicle unit ETLOC-50 ONLINE connector Pin 1 2 x black...
-
Page 7: Input Ignition
Installation manual (v. 2/2017) Vehicle unit ETLOC-50 ONLINE 2.1 Input IGNITION (connection of this input is mandatory) Input IGNITION is used to monitor a running engine of a vehicle. IMPORTANT When the engine is running there must always be a voltage +12/24V on the input. -
Page 8: Output Switching Relay
Installation manual (v. 2/2017) Vehicle unit ETLOC-50 ONLINE 2.4 Input 4 Input 4 is used as an independent information input, which monitors status or activities of a particular device within the vehicle (e.g. alarm activation, switching of a cooling device, usage of a beacon or warning lights, SOS button activation, working position of a plow, opening the lid of a tank, opening of a cargo space etc.). -
Page 9: Mounting The Gps Antenna
Installation manual (v. 2/2017) Vehicle unit ETLOC-50 ONLINE 3. Mounting the GPS antenna Pay very close attention to the selection of a suitable place for installation of the GPS antenna. The location and orientation of the GPS antenna has a major impact on the accuracy of vehicle positioning. -
Page 10: Activation Of The Vehicle Unit
Installation manual (v. 2/2017) Vehicle unit ETLOC-50 ONLINE Note: In case the vehicle is equipped with a metallized windshield (a heated windshield is not a problem for GPS signal reception) it is necessary to place the GPS antenna, for example, into the side mirror, front plastic bumper or other location where its view to the sky will not be obstructed. -
Page 11: Connecting The Backup Battery
Installation manual (v. 2/2017) Vehicle unit ETLOC-50 ONLINE 5. Connecting the backup battery (optional accessory) The backup battery allows localization of the vehicle even with the car battery disconnected. The backup battery is connected through a wiring harness - white-red (+6V) and black (GND) wire with FASTON connector.
