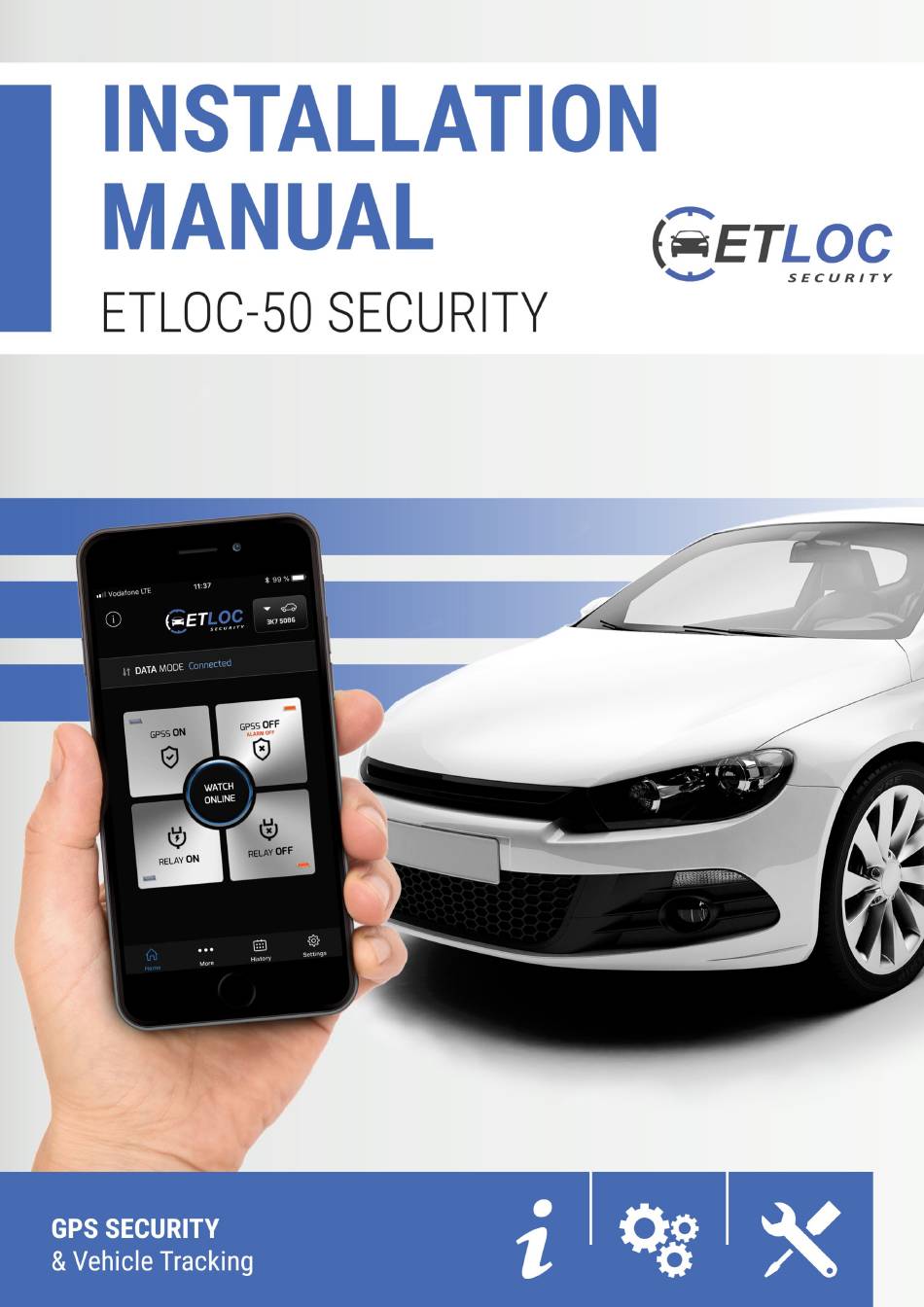

ETLOC -50 SECURITY Installation Manual

Gps security & vehicle tracking
Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ETLOC-50 SECURITY and is the answer not in the manual?

Questions and answers

Related Manuals for ETLOC ETLOC-50 SECURITY

Summary of Contents for ETLOC ETLOC-50 SECURITY

  • Page 2: Table Of Contents

    Installation manual (ver. 2/2018) ETLOC-50 SECURITY Table of contents I. SIM card preparation II. Installation into a vehicle Placement of the unit Connecting the cable harness 2.1. Input IGNITION 2.2. Input ALARM 1 2.3. Input ALARM 2 2.4. Output (switching relay) 2.5.

  • Page 3: Sim Card Preparation

    Make sure the new SIM card is active and disable its PIN code protection (the PIN can be disabled via mobile phone). You can use either a prepaid or tariff SIM card. The ETLOC unit communicates via mobile data and optionally via SMS commands – please pay attention to the prices for these services during the selection of your provider.

  • Page 4: Connecting The Cable Harness

    While connecting to the vehicle wiring, the wiring harness must be disconnected from the vehicle unit. Basic installation is done via three wires (black, red and yellow). The remaining wires are used for specific features of the vehicle unit. The wiring diagram of the ETLOC-50 SECURITY unit...
  • Page 5 (yellow wire). The individual wires of the wiring harness must be shortened to the absolute necessary length. Cut the unused wires at the connector and insulate their ends. Description of the vehicle unit ETLOC-50 SECURITY connector Pin 1 2 x black...

  • Page 6: Input Ignition

    Installation manual (ver. 2/2018) ETLOC-50 SECURITY 2.1. IGNITION Input (connection of this input is compulsory) This input is used for monitoring the condition of the vehicle's ignition. IMPORTANT With the ignition ON (vehicle engine running) there must always be a voltage of +12/24 V on this input.

  • Page 7: Mounting The Gps Antenna

    Installation manual (ver. 2/2018) ETLOC-50 SECURITY 3. Mounting the GPS antenna Please pay attention to the selection of a suitable place for installation of the GPS antenna. The positioning and orientation of the GPS antenna has a major impact on the accuracy of vehicle location.

  • Page 8: Activation Of The Unit

    Installation manual (ver. 2/2018) ETLOC-50 SECURITY Note: If the vehicle is equipped with a metallized windshield, it is necessary to place the GPS antenna, for example, into the side mirror, front plastic bumper or other location where its view to the sky won't be shielded.

  • Page 9: Connecting The Backup Battery

    Installation manual (ver. 2/2018) ETLOC-50 SECURITY 5. Connecting the backup battery (optional accessory) The backup battery allows location of the vehicle even when the car battery is disconnected. As a backup battery, please use only valve regulated lead acid batteries 6 V / 1,3 Ah.
