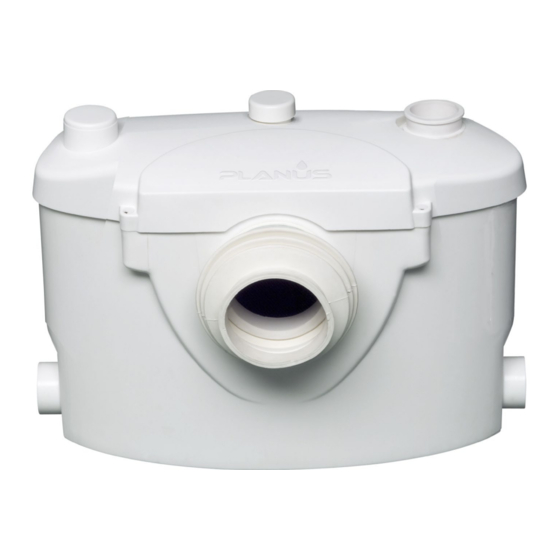

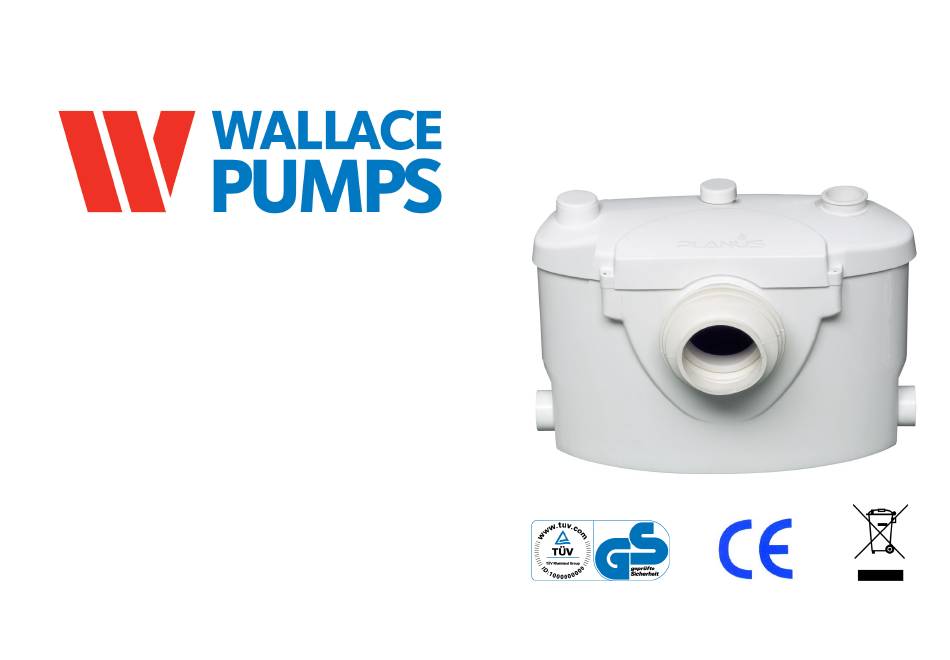

- Page 1 Sanismart Fully Automatic Sewage and Waste Water Pump Package Auckland Christchurch Wellington 09 622 9100 03 365 6453 04 567 8125 A division of Consolidated Alloys (NZ) Limited www.wallacepumps.co.nz...
-
Page 2: Warranty
Inlet Connections Blanking Plug (Inlets not used) WARRANTY Valves Supplied The Sanismart Macerator comes with a 2 Year Back- To-Base warranty on both parts and labour Isolating Valve Swing Check Non Return Valve (The Sanismart unit must be returned to the... -
Page 3: Operating Principle
Fig. 5 Sanismart can be connected to any type of WC with a wall discharge to European standards, and the WC will be operated like a conventional toilet without needing Fig 1... -
Page 4: Technical Data
ILLUSTRATIONS 3. TECHNICAL DATA Fig. 2 Input Voltage AC 220-240V, 50Hz Input Power 400W Degree of protection IPX4 Max. Input flow 14.5 l/min Horizontal discharge 100m Discharge head Discharge hose 25/32mm . PLUMBING INSTALLATION Toilet connection (Fig. 2) - Put liquid soap on the toilet spigot in order to lubricate and to facilitate connection. - Insert the toilet spigot into the rubber coupling on the tank and fix it with the supplied hose clamp using a screwdriver. -
Page 5: Electrical Installation
- Horizontal pipe runs must have a minimum fall of 1:100 (10mm per meter) up to the NB: The Sanismart should not be used in a permanent dwelling as the only discharge point (1% gradient).
