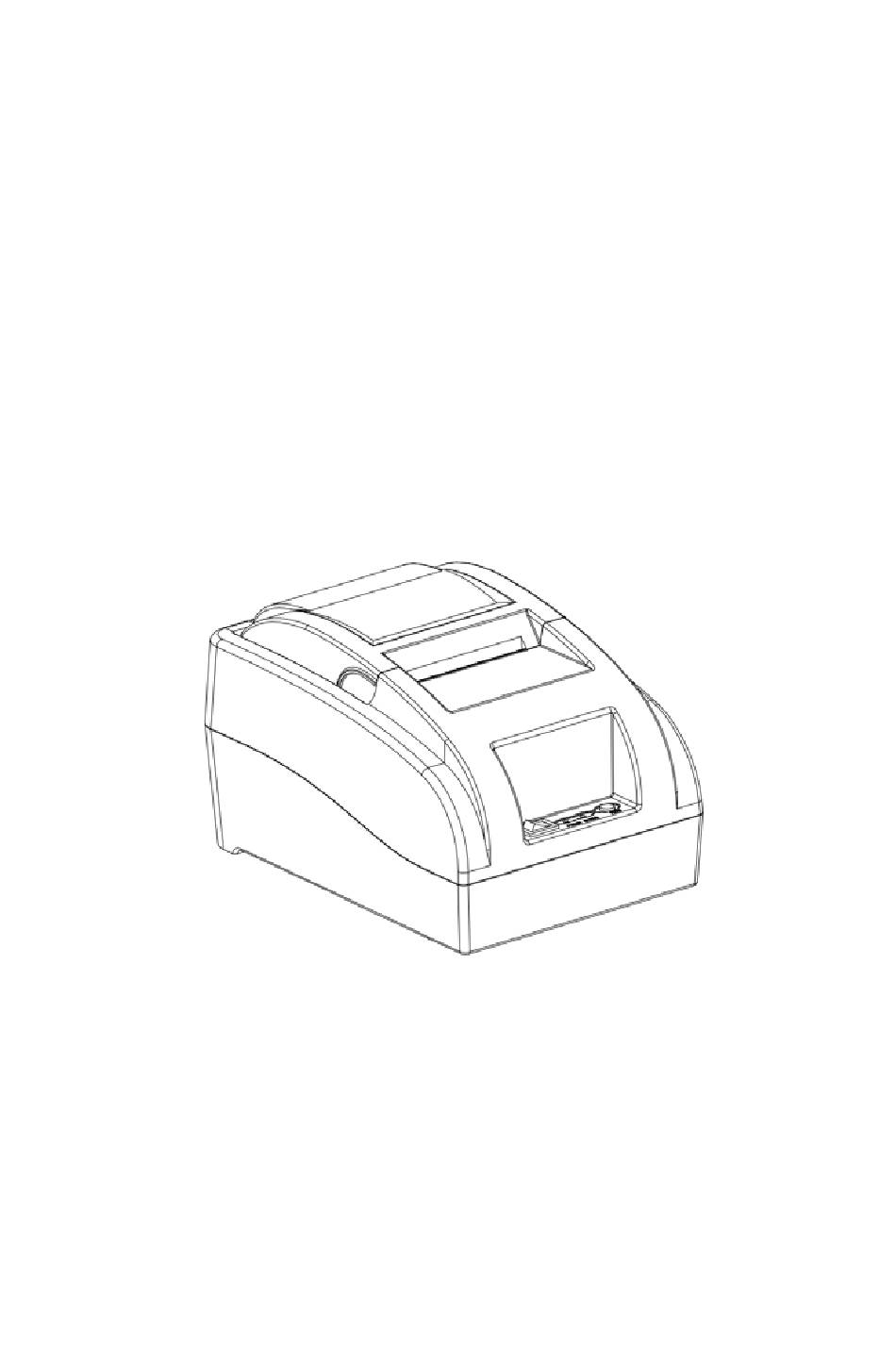

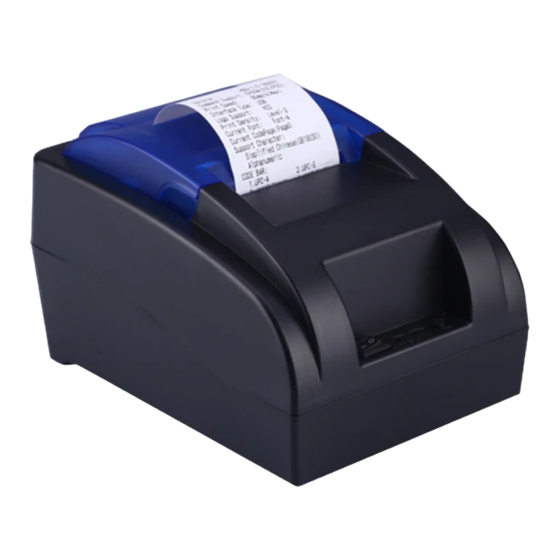

- Page 1 58MM Thermal Receipt Printer User manual Please read this manual carefully before using it, and keep it for future reference.
- Page 2 About this manual Thank you for your purchase of our company's 58MM thermal printer. This manual can help you learn to use this product. Please read this manual before use, and safekeeping, so that all the use of this product can read it.
- Page 3 Package: ◆Printer ◆Adaptor Power line 1 PC ◆Paper roll 1 ROLL ◆USB Data cable 1PC ◆Use manual 1PC ◆Driver CD 1PC Product Features： Print quality is high, low cost Low noise, high speed printing Support raster bitmap printing Easy paper install structure, simple and convenient to operate Built-in power supply design, to save space and more convenient to configure;...
- Page 4 Parameters： Items Parameters Printing Method Thermal Line Printing Method 48MM Resolution 384dots/Line（8dots/mm，203dpi） Printing Speed 70mm/Second Interface Type USB,COM,Bluetooth, WIFI 3.75 mm （Can adjust line spacing by command） Line Spacing Font A:32 character /Line Print Line No. Font B:42 character/Line parameters Simple/traditional Chinese-16 lines Standard GB18030...
- Page 5 Feed Method Easy feed(Clameshell feed) Commands Commands ESC/POS Input：AC 100V-240V,50-60Hz Power Adaptor Output：DC 12V/2A Power Casher Drawer DC 12V/1A output Input Buffer 32K bytes Buffer NV Flash 120K bytes (5pcs*24K Bytes) Physical Weight 590g characterist Dimension 185*130*112(MM) Temp：5 ~ 45 ,Humidity：10 ~ 80% Working Environme Temp：...
- Page 6 Install the print paper 58MM series thermal printer using 58MM thermal paper, using easy paper structure, convenient to install paper. 1.thumb and forefinger pinch the flip cover front place , pull up to open the printer's flip cover. 2.Put thermal print paper in the paper holder according to the pic below.
- Page 7 The indicator light on indicates that the printer is connected to the power supply, this light off indicates that the printer power is off. Self test: Printer self-test method are as follows: when the printer connected to the power adapter, press (feed) key and open the printer power at the same time, released the button after approximately 2 seconds, printers will print out current printer status and settings.
- Page 8 success, no need to configure the USB port. 2 Android system Bluetooth printer connect description (Bluetooth interface version applicable) Turn on the printer power switch; Open the Android mobile phone (or PDA) Bluetooth, commonly used path: system settings - conventional - Bluetooth; Click "search Bluetooth"...
- Page 9 Failure Analysis: Failure phenomenon Failure cause Solution Printer status 1.Printer lack of paper 1.Install paper correctly indicator flashing 2.The printer head is 2.Open cover too hot dissipate heat fully then go on 3.The flip not closed printing. well 3. Cover the flip well When printer Print...
