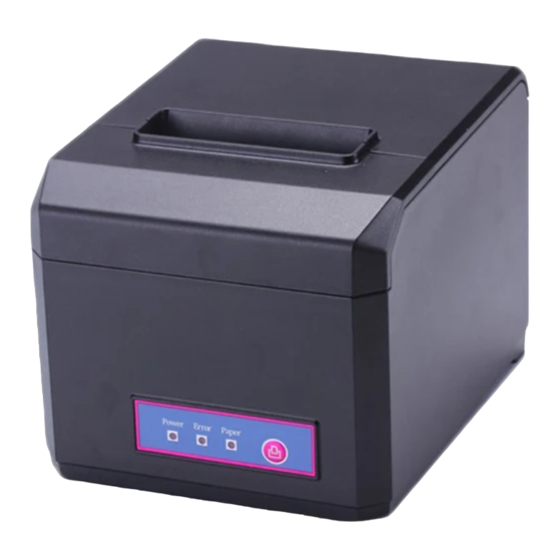

- Page 1 80MM Thermal Receipt Printer User Manual Please read this manual carefully before using it, and keep it for future reference.
- Page 2 About this manual Thank you for your purchase of our company's 80MM thermal printer. This manual can help you learn to use this product. Please read this manual before use, and safekeeping, so that all the use of this product can read it.
- Page 3 ●Do not store and use the printer in the environment of high temperature, high humidity, and heavy pollution. ●The power adapter of the printer should be connected to the grounding socket, should be avoided to connected to the same socket with large motor or other can lead to voltage fluctuation equipments, or may lead abnormal to printer and even damage to the printer.
- Page 4 ●Excellent waterproof, anti - oil, anti-dust structure design ●Support wall hanging function, meet the special environment printing ●Movable baffle design, support 80MM, 58MM different width of the paper roll printing ●Support 80MM large diameter roll ●Support kitchen printing and Internet printing ●Support printer monitoring function,to avoid losing bills...
- Page 5 ●2048K super input buffer,to avoid losing bills ●Support LOGO Graphical download and print ●Support 1D,2D bar code printing ●Support order come remind and error alarm ●Support black mark orientation and re-print Large font ●Support Multi language printing ●Richinterface:Internet(100M)+USB+COM;Internet(100M)+USB+ WIFI;USB+GPRS;USB+COM;USB+Bluetooth ●Built-in WEB server,configure printer by IE browser ●Compatible with ESC/POS print instruction mode ●Support Windows,Linux,Android and IOS system printing Printer Parameters:...
- Page 6 PC737/WPC/1257/ThaiVietnam/PC864/ Character PC1001/(Latvian)/(PC1001)/(PT151,1251)/ (WPC1257)/(PC864)/(Vietnam)/(Thai) 1D bar code： Bar code UPC-A/UPC-E/JAN13(EAN13)/JAN8(EAN8)/ CODE39/ITF/CODABAR/CODE93/CODE128 2D barcode：QRCODE Graphics Graphics Supports bitmap download and print printing printing Cutter Full cut/Half cut Cutter Function Type Thermal Width 79.5±0.5mm ≤80mm Paper Diameter Feed Easy feed(Clameshell feed) method...
- Page 7 Print Comman ESC/POS commands Power Input：AC 100V-240V,50～60Hz Output：DC 24V/2.5A Adaptor Power Cash DC 24V/1A Drawer output Buffer Input 2048K bytes Buffer NV Flash 256K bytes physical Weight 1.2KG characterist Dimensio 186*145*133(MM) Temp：5 ~ 45 ℃ ， Humidity：10 ~ 80% Environme Working ℃...
- Page 8 3.the cashier drawer cable connected with printer interface . Install the print paper 80MM series thermal printer using 58MM thermal paper, using easy paper structure, convenient to install paper. 1 Pressing down the cover open button, open the printer cover...
- Page 9 Note: take care of the roll direction, if reverse direction, the content won’t be print out. Set print mode (DIP switch) DIP switch settings can change the printer's cutting knife, beep, print density, language, font size, print width, print speed, etc.. VIII...
- Page 10 SW-4 Character mode Chinese Foreign language (double byte) (single byte) SW-5 Number of characters per line SW-6 Printing width 80MM 58MM SW-7 Transmission speed (COM port is valid) SW-8 SW-7 SW-8 Transmission speed 9600 19200 38400 115200 (BPS or bit / sec)
- Page 11 1 power switch The switch can turned on and off the printer power supply. 2 (feed) key (FEED) Press the button can feed, if keep on press this button will continued to feed. 3 (short paper) light (Paper) This indicator and the Error lamp flashing at the same time indicates that the printer is short of paper, this indicator and the Error lamp off means the printer has paper.
- Page 12 Note: do not force open the cover, as to avoid unrecoverable damage to the print head and the cutter. Printer driver 80MM series thermal printer driver mode has two kinds, one is using the port for directly drive printing, one is in stall driver in Windows system to print.
- Page 13 In this way, do not need to install the driver, only need to output the character (instructions and data) directly to a port, and to achieve character conversion of print by internal printer hard character library , using port directly drive, make the print control more convenient. If you use port direct drive mode, you need to use the print command set to control the printer's printing, 58MM series thermal printer has been integrated within the ESC/POS instruction set.
- Page 14 （3） Select "I accept this Agreement", click "next" （4） Click "install" XIII...
- Page 15 （5） Setup software will automatically identify the version of the Windows system, click "Next " （6） Select the corresponding port and click "OK"...
- Page 16 （7） Click "finish" to complete the driver installation Printer Repair and maintenance 1. printer external and warehouse cleaning: please use a wet cloth gently wipe the printer surface and internal paper warehouse.
- Page 17 2. Printer core clean: printer core must be clean on time, especially the quality of printing is decline, cleaning methods are as follows: put cotton dipped in anhydrous alcohol and gently wipe the printer core ceramic parts as shown in the picture below until clean enough. 3.If find water inside printer, pls immediately disconnect the printer power, and dry the printer naturally.
- Page 18 character Pls choose high quality colour in thermal thermal paper paper no good There power Pls check power adaptor is response of printer adaptor connected well connected not,power switch is turn on or not Printer can self test, Driver port Pls select the correct print but can not print selection error...
