Summary of Contents for Alpha Outback Energy SPCIIIS-5000-48

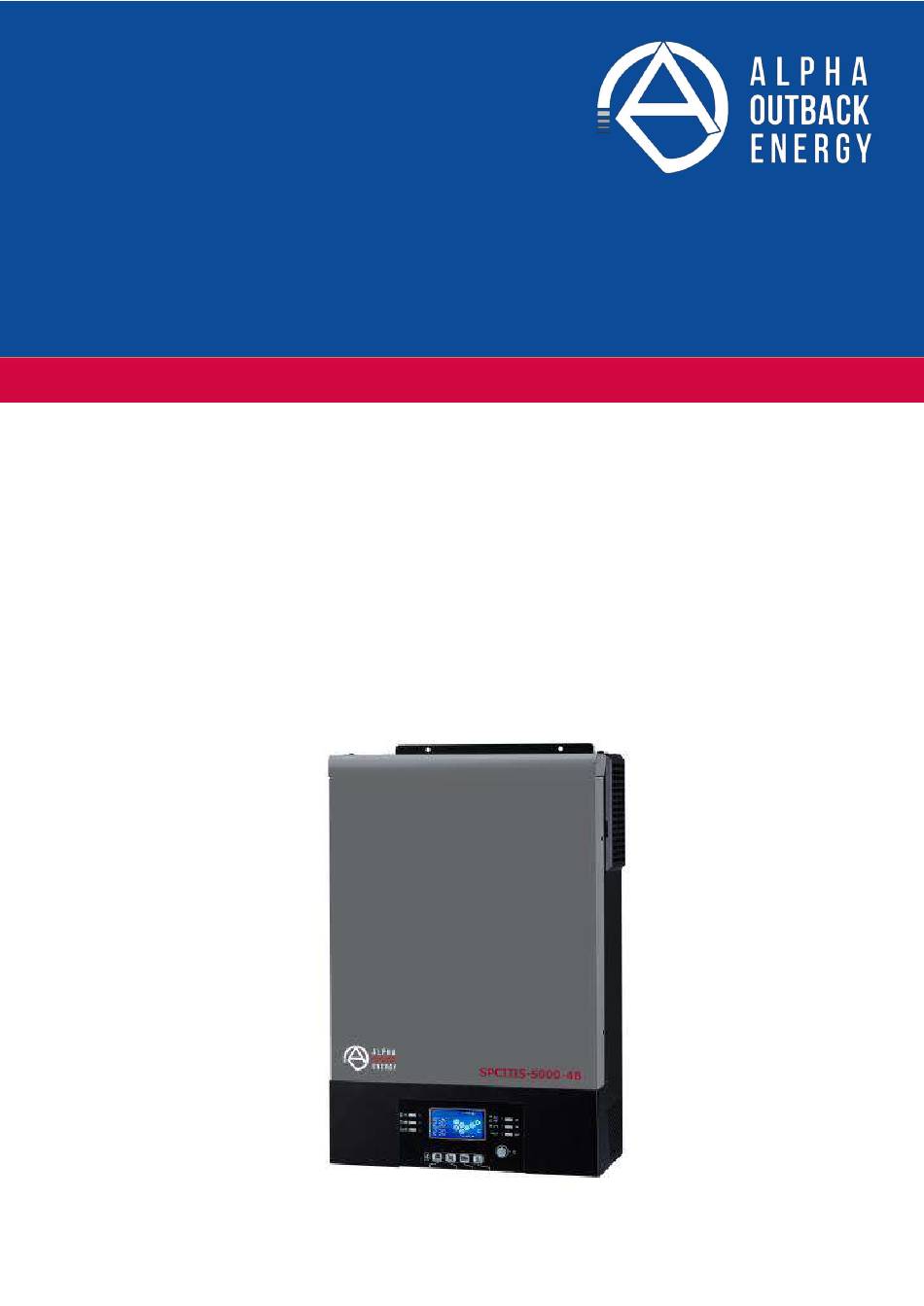

- Page 1 User Manual SPCIIIS-5000-48 5kW with MPPT Solar Charger Inverter/Charger Version: 1.3...
-
Page 2: Table Of Contents
Table of Contents ABOUT THIS MANUAL ............................1 Purpose ..............................1 Scope ..............................1 SAFETY INSTRUCTIONS ........................... 1 INTRODUCTION ..............................2 Product Overview ..........................3 INSTALLATION ..............................4 Unpacking and Inspection ........................4 Preparation ............................4 Mounting the Unit ..........................4 Battery Connection .......................... -
Page 3: About This Manual
ABOUT THIS MANUAL Purpose This manual describes the assembly, installation, operation and troubleshooting of this unit. Please read this manual carefully before installations and operations. Keep this manual for future reference. Scope This manual provides safety and installation guidelines as well as information on tools and wiring. SAFETY INSTRUCTIONS WARNING: This chapter contains important safety and operating instructions. -
Page 4: Introduction
INTRODUCTION This off-grid PV inverter can provide power to connected loads by utilizing PV power, utility power and battery power. Figure 1 Basic PV System Overview Depending on different power situations, this inverter is designed to generate continuous power from PV solar modules (solar panels), battery, and the utility. -
Page 5: Product Overview
Product Overview Appendix I NOTE: For parallel mode installation and operation please check LCD display Status indicator Charging indicator Fault indicator Function buttons Power on/off switch AC input connectors AC output connectors (Load connection) PV connectors 10. Battery connectors 11. Circuit breaker 12. -
Page 6: Installation
INSTALLATION Unpacking and Inspection Before installation, please inspect the unit. Be sure that nothing inside the package is damaged. You should have received the following items inside of package: Inverter unit Software CD Manual RS-232 cable Parallel communication cable Current sharing cable NOTE: Parallel communication cable and Current sharing cable are only used for parallel mode installation. -
Page 7: Battery Connection
Install the unit by screwing three screws. It’s recommended to use M4 or M5 screws. Battery Connection CAUTION: For safety operation and regulation compliance, it’s requested to install a separate DC over-current protector or disconnect device between battery and inverter. It may not be required to have a disconnect device in some applications, however, it’s still required to have over-current protection installed. -
Page 8: Ac Input/Output Connection
WARNING: Shock Hazard Installation must be performed with care due to high battery voltage in series. CAUTION!! Do not place anything between the flat part of the inverter terminal and the ring terminal. Otherwise, overheating may occur. CAUTION!! Do not apply anti-oxidant substance on the terminals before terminals are connected tightly. -
Page 9: Pv Connection
4. Insert AC output wires according to polarities indicated on terminal block and tighten terminal screws. Be sure to connect PE protective conductor ( ) first. →Ground (yellow-green) L→LINE (brown or black) N→Neutral (blue) 5. Make sure the wires are securely connected. CAUTION: Important Be sure to connect AC wires with correct polarity. - Page 10 PV Module Selection: When selecting proper PV modules, please be sure to consider below parameters: 1. Open circuit Voltage (Voc) of PV modules not exceeds max. PV array open circuit voltage of inverter. 2. Open circuit Voltage (Voc) of PV modules should be higher than min. battery voltage. Solar Charging Mode Max.
-
Page 11: Final Assembly
Final Assembly After connecting all wirings, please put bottom cover back by screwing two screws as shown below. -
Page 12: Remote Display Panel Installation
Remote Display Panel Installation The LCD panel can be removable and installed in a remote site with an optional communication cable. Please follow below steps to implement this remote panel installation. Step 1. Loosen the screw on the bottom of LCD panel and push down the panel from the bottom case. Then, pull out the cable from the remote communication port. -
Page 13: Communication Connection
Step 3. Connect LCD panel to the inverter with an optional RJ45 communication cable as below chart. RS-232 communication Remote To PC communication USB communication To PC BMS communication Communication Connection Serial Connection Please use supplied communication cable to connect to inverter and PC. Insert bundled CD into a computer and follow on-screen instruction to install the monitoring software. -
Page 14: Dry Contact Signal
Dry Contact Signal There is one dry contact (3A/250VAC) available on the bottom of the display panel. It could be used to deliver signal to external device when battery voltage reaches warning level. Unit Status Condition Dry contact port: NC & C NO &... -
Page 15: Operation
OPERATION Power ON/OFF Once the unit has been properly installed and the batteries are connected well, simply press On/Off switch (located on the display panel) to turn on the unit. Operation and Display Panel The operation and display panel, shown in below chart, is on the front panel of the inverter. It includes six indicators, six function keys, on/off switch and a LCD display, indicating the operating status and input/output power information. -
Page 16: Lcd Display Icons
Function Keys Function Key Description Exit the setting USB function setting Select USB OTG functions Timer setting for the Setup the timer for prioritizing the output source Output source priority Timer setting for the Setup the timer for prioritizing the charger source Charger source priority To last selection Down... - Page 17 bars will flash in turns. Voltage mode Bottom three bars will be on and the top bar > 2.167 V/cell will flash. Floating mode. Batteries are fully charged. 4 bars will be on. In battery mode, it will present battery capacity. Load Percentage Battery Voltage LCD Display...
-
Page 18: Lcd Setting
LCD Setting General Setting ” After pressing and holding “ button for 3 seconds, the unit will enter setting mode. Press “ ” or “ ” button to select setting programs. And then, press “ ” button to confirm the selection or “ ”... - Page 19 Appliances (Default) If selected, acceptable AC input voltage range will be within 90-280VAC. AC input voltage range If selected, acceptable AC input voltage range will be within 170-280VAC. Saving mode disable If disabled, no matter connected (default) load is low or high, the on/off status of inverter output will not be effected.
- Page 20 Soltaro battery If selected, programs of 02, 26, 27 and 29 will be automatically set up. No need for further setting. BAK battery If selected, programs of 02, 26, 27 and 29 will be automatically set up. No need for further setting. Battery type LIb-protocol compatible Select “...
- Page 21 50Hz (Default) 60Hz Output frequency 30A (Default) Maximum utility charging current Note: If setting value in program 02 is smaller than that in program in 11, the inverter will apply charging current from program 02 for utility charger. 100A...
- Page 22 default setting: 46V Setting range is from 44V to 57V and increment of each click is 1V. Setting voltage point back to utility source when selecting “SBU” (SBU priority) or “SUB” (solar 5% (default) If “WECO battery” is selected in first) in program 01.
- Page 23 If this inverter/charger is working in Line, Standby or Fault mode, charger source can be programmed as below: Solar first Solar energy will charge battery as first priority. Utility will charge battery only when solar energy is not available. Utility first Utility will charge battery as first priority.
- Page 24 Return to default display If selected, no matter how users screen (Default) switch display screen, it will automatically return to default display screen (Input voltage /output voltage) after no button is pressed for 1 minute. Auto return to default display screen Stay at latest screen If selected, the display screen will not return to the default screen.
- Page 25 default setting: 56.4V If self-defined is selected in program 5, this program can be set up. Setting range is from 48.0V to 64.0V. Bulk charging voltage Increment of each click is 0.1V. (C.V voltage) default setting: 54.0V If self-defined is selected in program 5, this program can be set up.
- Page 26 If selected, inverter will judge this Automatically (Default): charging time automatically. The setting range is from 5 min to 5 min 900 min. Increment of each click is 5 min. Bulk charging time (C.V stage) 900 min If “USE” is selected in program 05, this program can be set up. Battery equalization Battery equalization disable (Default)
- Page 27 30days (Default) Setting range is from 0 to 90 days. Increment of each click is 1 day Equalization interval Enable Disable (Default) Equalization activated immediately If equalization function is enabled in program 33, this program can be set up. If “Enable” is selected in this program, it’s to activate battery equalization immediately and LCD main page will shows “...
- Page 28 For minute setting, the range is from 00 Time setting – Minute to 59. For hour setting, the range is from 00 to Time setting – Hour For day setting, the range is from 00 to Time setting– Day For month setting, the range is from 01 Time setting–...
- Page 29 Procedure LCD Screen Step 1: Press and hold “ ” button for 3 seconds to enter USB function setting mode. Step 2: Press “ ”, “ ” or “ ” button to enter the selectable setting programs (detail descriptions in Step 3). Step 3: Please select setting program by following the procedure.
-
Page 30: Display Setting
2. Timer Setting for the Charger Source Priority This timer setting is to set up the charger source priority per day. Procedure LCD Screen Step 1: Press and hold “ ” button for 3 seconds to enter Timer Setup Mode for charging source priority. - Page 31 Input frequency=50Hz Input frequency PV voltage=260V PV voltage PV current = 2.5A PV current PV power = 500W PV power AC and PV charging current=50A PV charging current=50A Charging current AC charging current=50A...
- Page 32 AC and PV charging power=500W PV charging power=500W Charging power AC charging power=500W Battery voltage=50.0V, output voltage=230V Battery voltage and output voltage Output frequency=50Hz Output frequency Load percent=70% Load percentage...
- Page 33 When connected load is lower than 1kVA, load in VA will present xxxVA like below chart. Load in VA When load is larger than 1kVA (≧1kVA), load in VA will present x.xkVA like below chart. When load is lower than 1kW, load in W will present xxxW like below chart.
- Page 34 PV energy generated this month = 388kWh, Load output energy this month = 988kWh. PV energy generated this month and Load output energy this month. PV energy generated this year energy =3.88MWh, Load output energy this year = 9.88MWh. PV energy generated this year and Load output energy this year.
- Page 35 Secondary CPU version 00001.23. Secondary CPU version. Bluetooth version 00001.03. Bluetooth version.
-
Page 36: Operating Mode Description
Operating Mode Description Operating mode Behaviors LCD display Battery is charged by utility. Standby mode / Power saving mode Battery is charged by PV energy. Note: *Standby mode: The inverter is not turned on yet but at No output is supplied this time, the inverter can by the unit but it still charge battery without AC... - Page 37 Charging by utility and PV energy. Charging by utility. Output power from utility. Charger is available. Line mode Battery is not connected, solar energy and the utility will provide the loads. Power from utility. Output power from utility. Charger is available. Power from battery and PV energy.
-
Page 38: Faults Reference Code
Faults Reference Code Fault Code Fault Event Icon on Fan is locked when inverter is off. Over temperature Battery voltage is too high Battery voltage is too low Output short circuited or over temperature is detected by internal converter components. Output voltage is too high. -
Page 39: Warning Indicator
Warning Indicator Warning Warning Event Audible Alarm Icon flashing Code Beep three times every Fan is locked when inverter is on. second Over temperature None Battery is over-charged Beep once every second Low battery Beep once every second Overload Beep once every 0.5 second Output power derating Beep twice every 3 seconds Communication interrupted... -
Page 40: Battery Equalization
BATTERY EQUALIZATION Equalization function is added into charge controller. It reverses the buildup of negative chemical effects like stratification, a condition where acid concentration is greater at the bottom of the battery than at the top. Equalization also helps to remove sulfate crystals that might have built up on the plates. If left unchecked, this condition, called sulfation, will reduce the overall capacity of the battery. - Page 41 However, in Equalize stage, when battery equalized time is expired and battery voltage doesn’t rise to battery equalization voltage point, the charge controller will extend the battery equalized time until battery voltage achieves battery equalization voltage. If battery voltage is still lower than battery equalization voltage when battery equalized timeout setting is over, the charge controller will stop equalization and return to float stage.
-
Page 42: Specifications
SPECIFICATIONS Table 1 Line Mode Specifications MODEL SPCIIIS-500-48 Input Voltage Waveform Sinusoidal (utility or generator) Nominal Input Voltage 230Vac 170Vac±7V (UPS) Low Loss Voltage 90Vac±7V (Appliances) 180Vac±7V (UPS); Low Loss Return Voltage 100Vac±7V (Appliances) High Loss Voltage 280Vac±7V High Loss Return Voltage 270Vac±7V Max AC Input Voltage 300Vac... - Page 43 Table 2 Inverter Mode Specifications Rated Output Power 5kVA / 5kW Pure Sine Wave Output Voltage Waveform 230Vac±5% Output Voltage Regulation 60Hz or 50Hz Output Frequency Peak Efficiency Overload Protection 5s@≥150% load; 10s@110%~150% load 2* rated power for 5 seconds Surge Capacity Nominal DC Input Voltage 48Vdc...
- Page 44 Table 3 Charge Mode Specifications Utility Charging Mode Charging Current (UPS) 100A @ Nominal Input Voltage Flooded 58.4 Battery Bulk Charging Voltage AGM / Gel 56.4 Battery Floating Charging Voltage 54Vdc Overcharge Protection 66Vdc Charging Algorithm 3-Step Battery Voltage, per cell Charging Current, % 2.43Vdc (2.35Vdc) Voltage...
- Page 45 Table 5 Parallel Specifications Max parallel numbers Circulation Current under No Load Condition Max 2A Power Unbalance Ratio <5% @ 100% Load Parallel communication Transfer time in parallel mode Max 50ms Parallel Kit Note: Parallel feature is disabled if only PV power is available...
-
Page 46: Trouble Shooting
TROUBLE SHOOTING Problem LCD/LED/Buzzer Explanation / Possible cause What to do Unit shuts down LCD/LEDs and buzzer automatically will be active for 3 The battery voltage is too low 1. Re-charge battery. during startup seconds and then (<1.91V/Cell) 2. Replace battery. process. -
Page 47: Appendix I: Parallel Function
Appendix I: Parallel function 1. Introduction This inverter can be used in parallel with two different operation modes. 1. Parallel operation in single phase with up to 9 units. The supported maximum output power is 45kW/45kVA. 2. Maximum nine units work together to support three-phase equipment. Seven units support one phase maximum. - Page 48 3. Wiring Connection NOTICE: It’s required to connect to battery for parallel operation. The cable size of each inverter is shown as below: Recommended battery cable and terminal size for each inverter: Ring terminal: Ring Terminal Torque Cable Dimensions AWG no. Section value D (mm)
- Page 49 Recommended breaker specification of battery for each inverter: n units* Location 1 unit* n x 135A/70V Battery side 135A/70V 135A/70V Inverter side 135A/70V *If you want to use only one breaker at the battery side for the whole system, the rating of the breaker should be X times current of 1 unit.
- Page 50 4-1. Parallel Operation in Single phase Two inverters in parallel: Power Connection Load Communication Connection Three inverters in parallel: Power Connection Load Communication Connection...
- Page 51 Four inverters in parallel: Power Connection Load Communication Connection Five inverters in parallel: Power Connection Load Communication Connection...
- Page 52 Six inverters in parallel: Power Connection Load Communication Connection Seven inverters in parallel: Power Connection Load Communication Connection...
- Page 53 Eight inverters in parallel: Power Connection Load Communication Connection Nine inverters in parallel: Power Connection Load Communication Connection 4-2. Support 3-phase equipment Three inverters in each phase: Power Connection Load Communication Connection...
- Page 54 Three inverters in one phase, three inverters in second phase and two inverter for the third phase: Power Connection Load Communication Connection Three inverters in one phase, two inverters in second phase and two inverters for the third phase: Power Connection Load Communication Connection...
- Page 55 Two inverters in each phase: Power Connection Load Communication Connection Seven inverters in one phase and one inverter for the other two phases: Power Connection Load Note: It’s up to customer’s demand to pick 7 inverters on any phase. P1: L1-phase, P2: L2-phase, P3: L3-phase. Communication Connection ①...
- Page 56 Four inverters in one phase and one inverter for the other two phases: Power Connection Load Communication Connection Three inverters in one phase, two inverters in second phase and one inverter for the third phase: Power Connection Load...
- Page 57 Communication Connection Three inverters in one phase and only one inverter for the remaining two phases: Power Connection Load Communication Connection Two inverters in two phases and only one inverter for the remaining phase: Power Connection Load...
- Page 58 Communication Connection Two inverters in one phase and only one inverter for the remaining phases: Power Connection Load Communication Connection One inverter in each phase: Power Connection Load...
- Page 59 Communication Connection WARNING: Do not connect the current sharing cable between the inverters which are in different phases. Otherwise, it may damage the inverters. 5. PV Connection Please refer to user manual of single unit for PV Connection. CAUTION: Each inverter should connect to PV modules separately.
- Page 60 6. LCD Setting and Display Setting Program: Program Description Selectable option Single: When the units are used in parallel with single phase, please select “PAL” in program Parallel: It is required to have at least 3 inverters or maximum 6 inverters to support three-phase equipment.
- Page 61 7. Commissioning Parallel in single phase Step 1: Check the following requirements before commissioning: Correct wire connection Ensure all breakers in Line wires of load side are open and each Neutral wires of each unit are connected together. Step 2: Turn on each unit and set “PAL”...
- Page 62 Step 4: Switch on all AC breakers of Line wires in AC input. If AC connection is detected and three phases are matched with unit setting, they will work normally. Otherwise, the AC icon will flash and they will not work in line mode.
- Page 63 9. Trouble shooting Situation Fault Solution Fault Event Description Code Restart the inverter. Check if L/N cables are not connected reversely in all inverters. For parallel system in single phase, make sure the sharing are Current feedback into connected in all inverters. the inverter is For supporting three-phase system, make sure the sharing cables are detected.
-
Page 64: Appendix Ii: Bms Communication Installation
Appendix II: BMS Communication Installation 1. Introduction If connecting to lithium battery, it is required to purchase a special RJ45 communication cable (P/N: SPC-COMM). Please check with your dealer or integrator for details. This SPC-COMM custom-made RJ45 communication cable delivers information and signal between lithium battery and the inverter. - Page 65 3. Installation and Operation PYLONTECH After configuration, please install LCD panel with inverter and Lithium battery with the following steps. Step 1. Use custom-made RJ45 cable (P/N: SPC-COMM) to connect inverter and Lithium battery. Note: connect the SPC-COMM cable in the RS-485 port of the battery Note for parallel system: 1.
- Page 66 WECO Step 1. Use a custom-made RJ45 cable to connect inverter and Lithium battery. Note: connect the SPC-COMM cable in the RS-485 port of the battery Note for parallel system: 1. Only support common battery installation. 2. Use one custom-made RJ45 cable (P/N: SPC-COMM) to connect any inverter (no need to connect to a specific inverter) and Lithium battery.
- Page 67 SOLTARO Step 1. Use a custom-made RJ45 cable (P/N: SPC-COMM) to connect inverter and Lithium battery. Note: connect the SPC-COMM cable in the RS-485 port of the battery Note for parallel system: 1. Only support common battery installation. 2. Use one custom-made RJ45 cable (P/N: SPC-COMM) to connect any inverter (no need to connect to a specific inverter) and Lithium battery.
- Page 68 Step 1. Use custom-made RJ45 cable (P/N: SPC-COMM) to connect inverter and Lithium battery. Note: connect the SPC-COMM cable in the RS-485 port of the battery Note for parallel system: 1. Only support common battery installation. 2. Use one custom-made RJ45 cable (P/N: SPC-COMM) to connect any inverter (no need to connect to a specific inverter) and Lithium battery.
- Page 69 4. LCD Display Information Press “UP” or “DOWN” key to switch LCD display information. It will show battery pack and battery group number before “Main CPU version checking” as below screen. Selectable information LCD display Battery pack numbers & Battery Battery pack numbers = 3, battery group numbers = 1 group numbers 5.
-
Page 70: Appendix Iii: Approximate Back-Up Time Table
Appendix III: Approximate Back-up Time Table Model Load (VA) Backup Time @ 48Vdc 200 Ah (min) Backup Time @ 48Vdc 400 Ah (min) 1226 2576 1000 1226 1500 2000 2500 5 kW 3000 3500 4000 4500 5000 Note: Backup time depends on the quality of the battery, age of battery and type of battery. Specifications of batteries may vary depending on different manufacturers.
