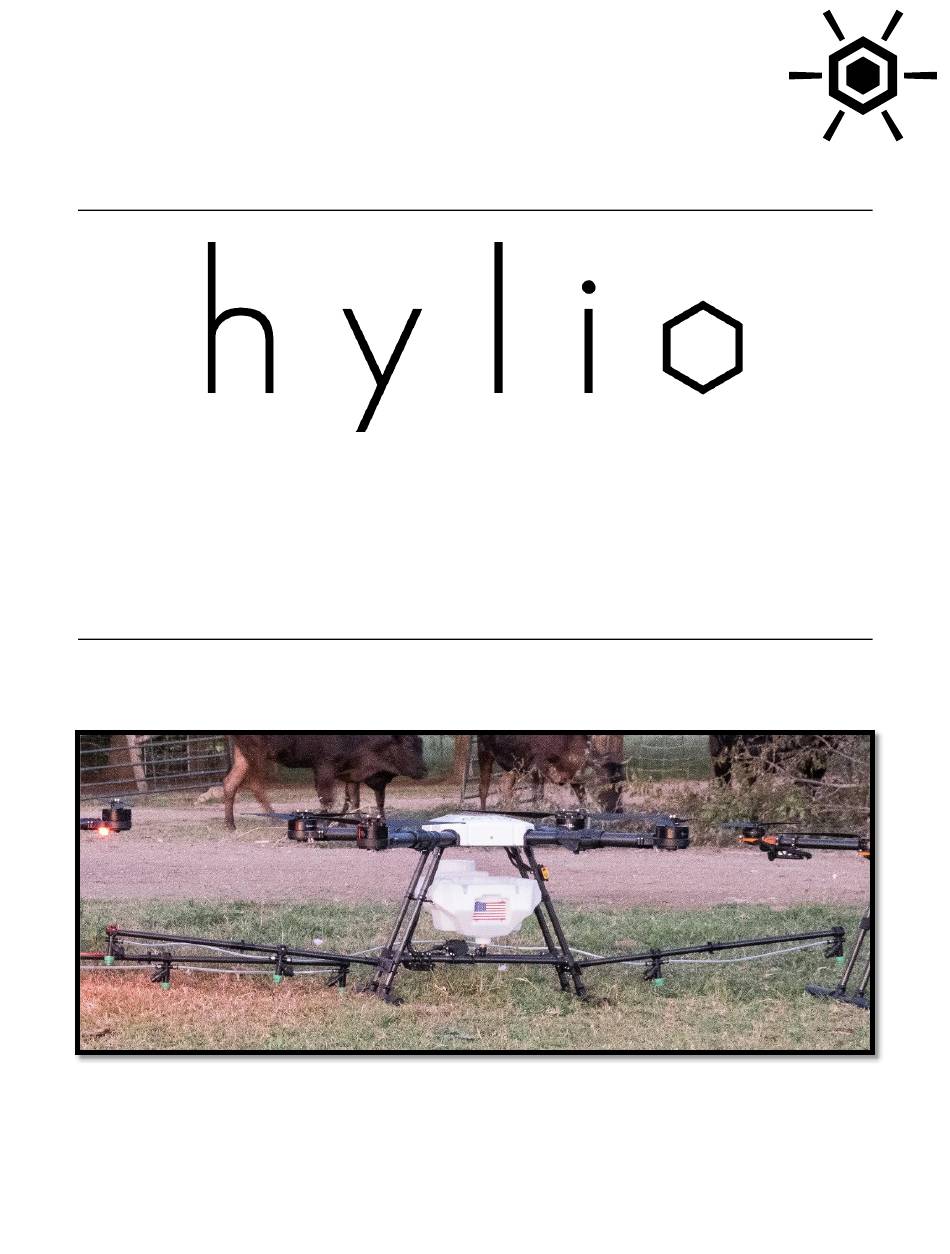

- Page 1 AgroDrone Spray System AG-110 Operations Manual V2.2...
-
Page 2: Table Of Contents
First Flight Manual Flight & RC Takeover Safety Guidelines Flight Envelope Field Marking Mission Settings Storage & Transport UAS Operation Battery Safety Chemicals and Environment Multi UAS Control Hylio Inc. Support Initial Training Customer Support ©2020 Hylio Inc. All Rights Reserved... -
Page 3: Spec Sheet
Fully autonomous (no RC), position hold manual (with RC), Fully manual GPS Flight Modes denied (with RC) 902 – 928 MHz, 2.4 GHz Operating Frequencies Ground Station Control Hylio Agrosol Software Max Transmission Range ~1 mile (5+ unobstructed) ©2020 Hylio Inc. All Rights Reserved... -
Page 4: Accessory Hardware
2. DO NOT discharge batteries below 10%. Avoid discharging below 15% 3. Storage charge batteries if they will not be used for over a week 4. Trickle charge batteries to improve longevity and performance ©2020 Hylio Inc. All Rights Reserved... -
Page 5: Remote Controller
2. ALWAYS be prepared to use the kill switch in the case of an extreme emergency. If the RC is connected, this switch will power down the motors no matter the situation or aircraft status. ©2020 Hylio Inc. All Rights Reserved... -
Page 6: Ground Control Station
RFD900 Radio Telemetry Unit and antenna (configured in AgroSol) FTDI Cable (connect RFD900 to Laptop/Tablet) Manual flight RC Ground station computer requirements: Windows 10 I3 Processor or better 8GB Ram or better Manual flight RC NOT required for standard mission operation ©2020 Hylio Inc. All Rights Reserved... -
Page 7: System Capabilities
The AG-110 contains an array of features to both enhance safety and assure its ability to effectively conduct the mission. Among these features are: Ground Control Software System - Hylio Inc. and all AG-110 owners use a UAS ground control software system known as Hylio AgroSol. Hylio Inc. developed AgroSol for the express purpose of controlling Hylio Inc. - Page 8 Safety parameters - Max altitude, distance from home, horizontal speed and vertical speed defaults are set by Hylio Inc., and the customer can set these as well based on location and operating restrictions. The AG-110 uses multiple sensor types to ensure maximum altitude is respected in the event of primary altimeter sensor failure.
- Page 9 Operational Analysis - The AG110 flight controller firmware automatically logs flight hours on the UAS. These flight hours are tracked and displayed in AgroSol. This automatic flight hour tracking is used to ensure strict adherence to maintenance procedures. ©2020 Hylio Inc. All Rights Reserved...
-
Page 10: Lost Link Failsafe
Drone has ever experienced a Fly-Away event. Prevention Measures Hylio UAS are assembled in the USA of the highest quality components from across the world, and go through an intensive QA process before delivery. All Hylio missions are geo-fenced and saved internally on the UAS, to ensure there is no possibility of a Fly-Away in the event of a communications hardware failure. -
Page 11: Obstacle Avoidance
The PIC must understand that without enabling obstacle avoidance, the drone may collide with any obstacle in the mission area. The mission area must be THOROUGHLY surveyed for potential obstacles before proceeding with avoidance disabled. ©2020 Hylio Inc. All Rights Reserved... -
Page 12: System Operation
4. After completion, notify property owner. Rinse spray system and pack up. Follow safety guidelines for equipment transportation. Step 4: Daily Maintenance 1. Follow Daily Maintenance Checklist. 2. Upload flight logs whenever possible. 3. Ensure equipment is stored safely. Follow storage safety guidelines. ©2020 Hylio Inc. All Rights Reserved... -
Page 13: Standard Flight Pattern
7. Reach Land Point. Descend to Land. Land. Motors Disarm. Cruise Altitude (ft): UAS Altitude during flight to area, RTL (return to land), and Pause mode Spray Altitude (ft): UAS Altitude Flight Speed (mph): UAS Speed during the entire mission ©2020 Hylio Inc. All Rights Reserved... -
Page 14: Preflight Checklist
C. Drone flying smooth and stable D. No strange noises from motors STEP 5: LAND 1: Monitor Monitor drone as it descends to land, be ready to pause drone and adjust Landing landing location if necessary ©2020 Hylio Inc. All Rights Reserved... -
Page 15: Calibrations
5. Go to maintenance tab and click “Calibration > Voltage”. 6. Type in the measured voltage sum and press OK. 7. Check the AgroSol voltage readout matches the measured voltage sum. 8. Repeat if the voltages do not match. ©2020 Hylio Inc. All Rights Reserved... -
Page 16: Uas Spraying Tips
Select a nozzle based on your desired particle size, flowrate, and spray profile. The TeeJet nozzles listed are commonly used by Hylio pilots around the world, and have proven to fit well with the AgroDrone’s nominal pump pressures and flight speeds. - Page 17 You can decrease altitude and increase speed as you observe the drone’s response to terrain variations. Fly along hillsides whenever possible as opposed to up and down hillsides. This is much more efficient and keeps the drone from constantly climbing up and down hills. ©2020 Hylio Inc. All Rights Reserved...
-
Page 18: First Flight
Hylio Agrodrone (AG-110) Operations Manual First Flight It is recommended to perform the first flights alongside a Hylio representative until the new owner is an adequately competent pilot. Follow this checklist, followed by the preflight checklist to ensure a safe and smooth first solo flight. -
Page 19: Manual Flight & Rc Takeover
Once you have manually taken over, the mission cannot be resumed. You must proceed land and reupload a mission. At any time during manual control, AgroSol can be used to take back over and command a PAUSE, RTL, or LAND using the telemetry link. ©2020 Hylio Inc. All Rights Reserved... -
Page 20: Safety Guidelines
Drop boundary-flags every 25 ft when marking along a curved field edge. Always mark ALL obstacles within a field. Do not rely on obstacle avoidance. Always mark field edges when spraying a field with many trees, power lines, or other obstacles near the field edge. ©2020 Hylio Inc. All Rights Reserved... -
Page 21: Mission Settings
Always strap down UAS during transport to avoid damage. Batteries in long term storage must be at a storage charge voltage level (46.2 V). Spray System must be extremely clean before long term storage to avoid damage. ©2020 Hylio Inc. All Rights Reserved... -
Page 22: Uas Operation
Be careful not to short battery leads when plugging/unplugging from UAS Always store and transport batteries in fire-proof lipo safe bags. DO NOT GET BALANCE CABLES/PORTS WET OR DAMAGE BALANCE CABLE HOUSINGS. ©2020 Hylio Inc. All Rights Reserved... -
Page 23: Chemicals And Environment
UAS RTL alts cannot be within 10 feet of each other to avoid collision. (AgroSol Enforced) If using 2 UAS on the same field, start them on similar sides of the field to avoid collision. ©2020 Hylio Inc. All Rights Reserved... -
Page 24: Hylio Inc. Support
The UAS owner will be responsible for training and certifying any new pilots to operate their AG- 110 at their own discretion. All new pilots should complete the program listed in “Hylio AG-110 Software and Training Manual>Initial Pilot Training Schedule” and follow the recurring training schedule.
