- Page 1 LSDL-13-18 Owner’s Manual TRUCK LOADER Owner’s manual Covers Models : LSDL-13GX390 - LSDL-14EX400 - LSDL-18VGDE...
-
Page 2: Table Of Contents
LSDL-13-18 Owner’s Manual CONTENTS SPECIFICATIONS________________________________________3 INSTRUCTION LABELS___________________________________4 SHIPPING CHECKLIST____________________________________5 ILLUSTRATED PARTS DIAGRAM___________________________6 PARTS LIST__________________________________________7 & 8 ASSEMBLY______________________________________________9 SAFETY INSTRUCTIONS - DO NOT DO______________________10 SAFETY INSTRUCTIONS - DO_____________________________11... -
Page 3: Specifications
Specifications LSDL-13-18 Owner’s Manual Model Number LSDL-13GX390 LSDL-14EX400 LSDL-18VGDE Engine: HP 13 (9.69 kW) 14 (10.4 kW) 18 (13.4 kW) Engine Model GX390OU1QA2 EX400DF5030 3564470011F1 HONDA ROBIN BRIGGS AND STRATTON Mounting Skid Mount Skid Mount Skid Mount Fuel Type Engine: Fuel Capacity 6.9 qt. -
Page 4: Instruction Labels
LSDL-13-18 Owner’s Manual INSTRUCTION / SAFETY LABELS AND SYMBOLS The labels shown here have been installed in various locations on the LandShark Debris loader. It is important to maintain these labels in good condition and replace them when necessary. The part numbers are included in the Illustrated parts List. -
Page 5: Shipping Checklist
LSDL-13-18 Owner’s Manual Loose Parts Check List The LandShark Debris Loader is shipped fully assembled except for a few components: Exaust Chute, Nozzle, Floating Collar, Hose Support Collar, Hose Support Boom, Hose Clamps and Miscellaneous Hardware. Hardware Bag Contents Discharge Flap Part # Description Quantity... -
Page 6: Illustrated Parts Diagram

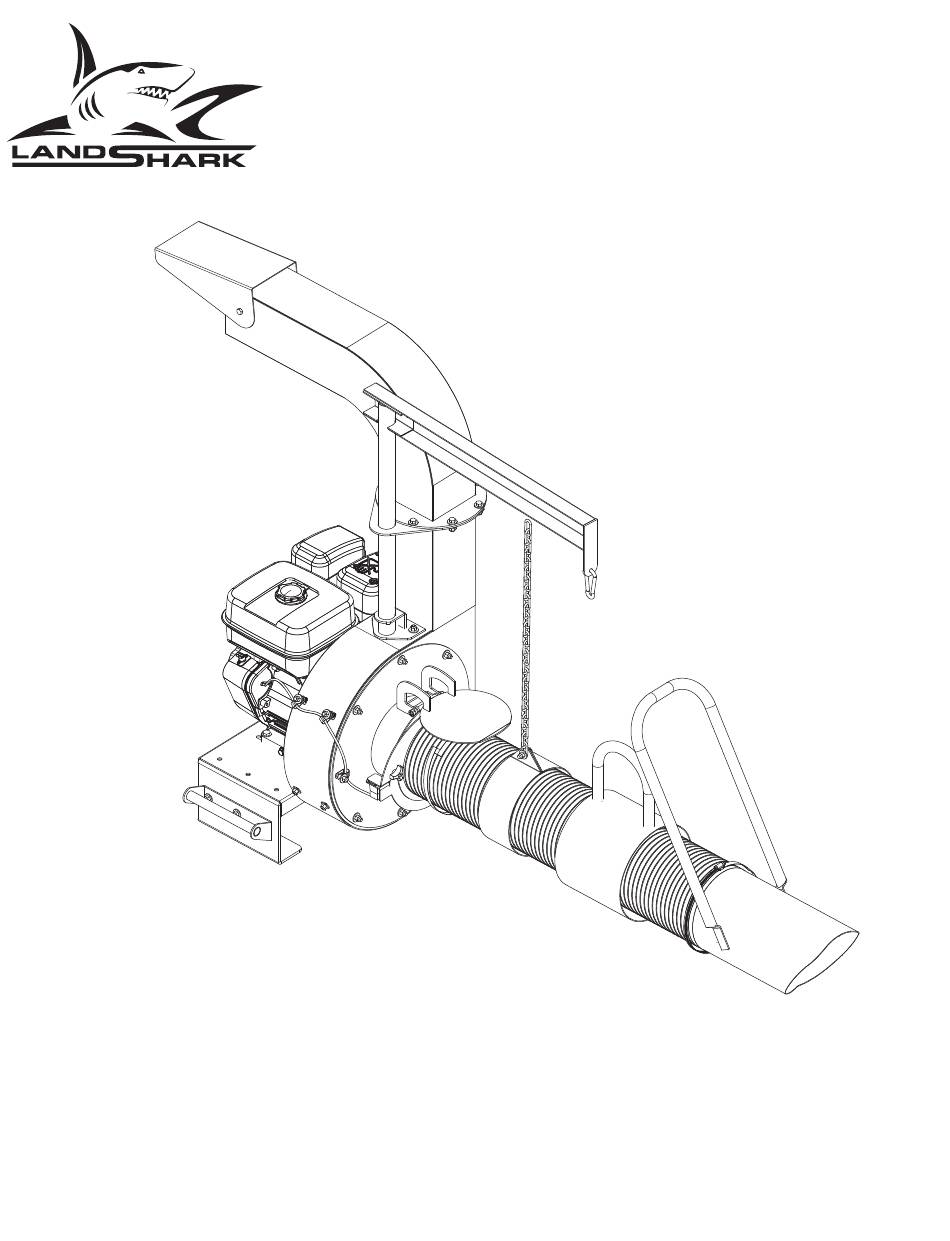

Parts Illustration... - Page 7 LSDL-13-18 Owner’s Manual Parts...
- Page 8 LSDL-13-18 Owner’s Manual Parts...
-
Page 9: Assembly
LSDL-13-18 Owner’s Manual Assembly 1) SECURELY ATTACH the Loader to the bed of a truck, trailer or install using the hanging tailgate brackets (Optional) so the exhaust discharges into an enclosed container. Keep in mind, this loader MUST be securely mounted to the bed of a truck or trailer prior to and during all operation and assembly. 2) ASSEMBLE INTAKE HOSE. -
Page 10: Safety Instructions - Do Not Do
LSDL-13-18 Owner’s Manual Safety Instructions - DO NOT DO NOT OPERATE THIS UNIT FREESTANDING. IT MUST BE SECURED USING ONE OF THE SPECIFIED MOUNTING OPTIONS. DO NOT operate this equipment with ANY safety features or guards removed DO NOT run this equipment indoors or in any poorly ventilated area. Refuel outdoors only DO NOT refuel this equipment when engine is running. -
Page 11: Safety Instructions - Do
ALWAYS store fuel in approved safety containers ALWAYS wear the appropriate personal protective equipment (PPE) when operating this machine. ALWAYS inspect replaceable wear liner daily before each use. For questions and technical information contact: Selbro, Inc. 1-800-973-5276 P.O. Box 595, Bellevue, Ohio 44811...
