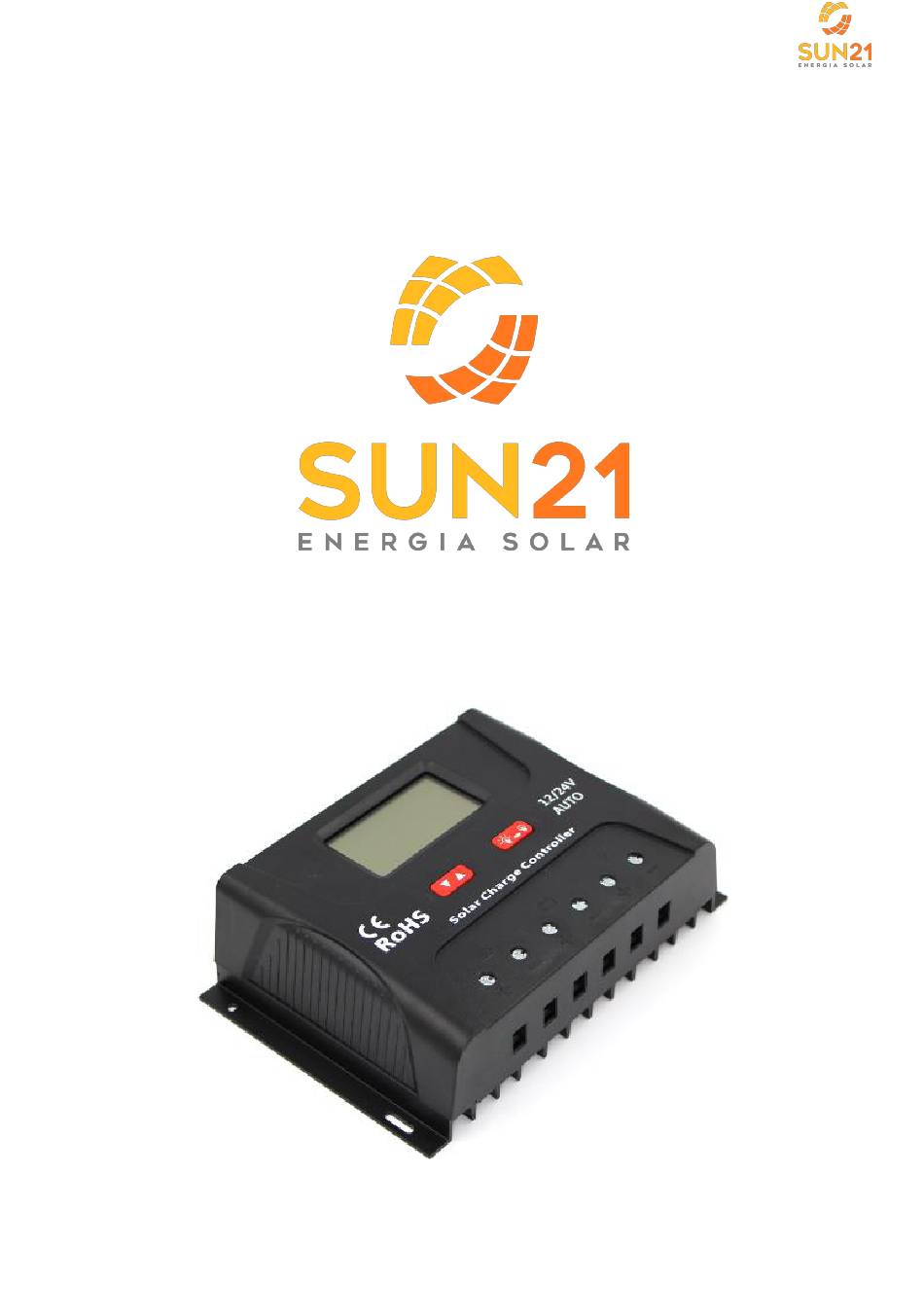

- Page 1 CCS Series Solar Charge Controller （CCS-P3024/4024/6024） User Manual...
-
Page 2: Product Features
Dear users Thank you for choosing our product. Before using the product, please read this manual carefully. 1. Product Features 1.1. Automatic system voltage identification 1.2. Charging program options for sealed, GEL and flooded lead-acid batteries and lithium batteries are available. 1.3. -
Page 3: State Indicators
3. State Indicators Meaning LCD Icon Indicated Object State Day recognition Steady on Day time Night Steady on Night time recognition Solar panel Steady on Solar panel indication BOOST Steady on Boost charging FLOAT Charging state Steady on Floating charging EQUATIZE Steady on Equalizing charging... -
Page 4: Safety Advice
e. Normal on (17): The energized load keeps in output state. Mode Mode Display Display Light control + time Pure light control mode control (9 hours) Light control + time Light control + time control (1 hour) control (10 hours) Light control + time Light control + time control (2 hours) - Page 5 In the 48V system, separate reverse connect battery or separate reverse connection of solar panel controller will not damage; but if in reverse connection of the battery and is connected solar panels, or solar panels on the reverse connection is connected to the battery may cause damage to the controller.
- Page 6 9. Setting Menu on LCD Screen When "load mode" is displayed, long press to enter into the load mode setting. Press to adjust the mode, and long press for 2s to save and exit; or else, the system will not save the setting that was just made and automatically exit the setting interface after 12s.
- Page 7 12. Load Short Circuit and Recovery Short-circuit automatic recovery time: 1st time, 5 s; 2nd time, 10 s; 3rd time, 15 s; 4th time, 20 s; 5th time, 4 hours or automatic recovery the next day; or long press to make the load resume output. 13.
-
Page 8: Error Code List
3. Precautions: ①If it is 12V system, the bottom left corner of LCD display will show 12V, 24V system will show 24V,36V syst em will show 36V, 48v system will show 48V. ② The first step is to connect the battery. If the connection is made correctly, the controller screen will light up; otherwise, check whether the connection is correct. -
Page 9: Common Problems And Solutions
16. Common Problems and Solutions Symptoms Causes and Solutions LCD screen does not light up Check whether the battery is correctly connected. Check whether the ambient temperature is too low and Incomplete display or no renewal on LCD screen whether the display recovers when the temperature rises. Check whether the solar panel is correctly connected and No charging with sunlight present contact is good and reliable. - Page 10 The lower the system No-load loss < 13mA/12V；< 15mA/24V <30mA voltage, the smaller the no-load loss. Max. Solar energy input <55 <110V voltage Max. voltage at the battery <34V <68V Parameters Battery type Flooded Sealed Lithium Default Overvoltage 16．0V protection Equalizing charging 14.8...
- Page 11 judgment time ×3/36V； ×4/48V； USB function optional Bluetooth optional function Operating -25℃to+55℃； temperature IP protection IP30 degree Net weight 390g 650g 650g note 1 Battery plate reverse connection protection , a battery reverse connection Protection protection note 2 , charging battery board short circuit protection, charging the battery functions open circuit protection, charging over current protection, overload protection, load short-circuit protection controller and over temperature protection.
