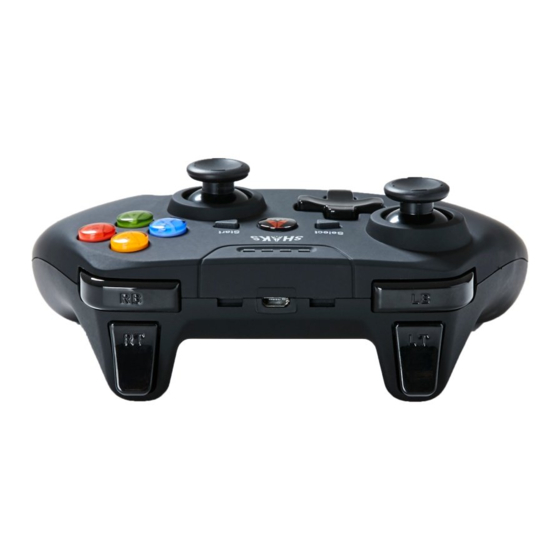

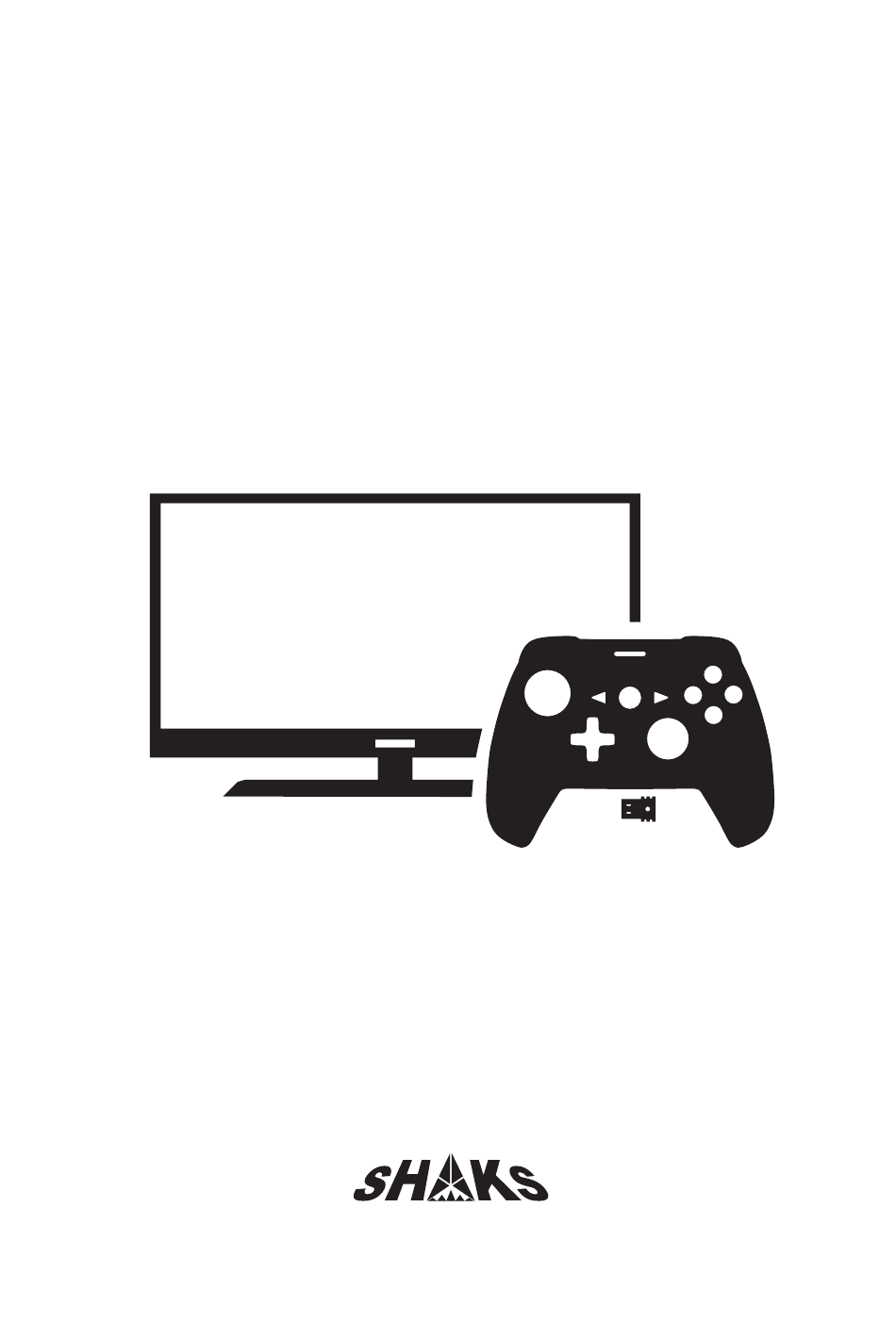

- Page 1 SHAKS S1+ Quick guide http://shaksgame.com...
- Page 2 Before use Charge gamepad fully before using at the first time. Check out this manual before using S1+. Contents SHAKS Reset USB cable SHAKS S1+ USB dongle User manual (for charging & wired connection) Controller buttons Power Select Start L-Stick(3D)
- Page 3 Technical Specification Gamepad: SHAKS S1+ Connectivity : 2.4GHz Wireless Dongle, Bluetooth 4.2 Frequency Band : 2400 ~ 2483MHz Output Power : Class 2 Transmission Range : 7 ~ 10 M Supported profiles : HID Operating Time : Up to 8 hours...
- Page 4 Connection of Windows PC/Nintendo Switch Plug USB-dongle into your PC. Press + LB button for 3 seconds. If 1st and 2nd LEDs turn on, it’s ready to play. ※ In the case of windows 7, please install ‘Xbox 360 driver’ additionally. ※...
- Page 5 Console boxes such as Xbox, Playstation, Nintendo, etc. cannot be connected. Press + X button for 3 seconds. If 3rd LED blinks, select & connect ‘SHAKS S1’ on BT device list in your device. If 3rd LED turns on, it is ready to play.
- Page 6 How to reset RESET Press reset button on the back of S1+ for 3 sec with a pin. Press button on the USB-dongle to disconnect and reconnect. Reset How to charge Charge with charging cable by connecting to PC or USB power charging device (5W). Charging while Low battery Charging...
- Page 7 Notes when using Nintendo Switch ① The S1+ LED display is the same as LED display on Switch only when wired connection. ② The following functions cannot be used, please be aware. - Capture button - Wake up with HOME button - Gyroscope sensor - Exclusive games for Joy-Con is not supported - HD vibration X (only maximum output supported)
- Page 8 Q&A – Android phone/tablet & TV STB Q1) Is there a difference between connecting via USB cable, Bluetooth and dongle? No, via Bluetooth, you need to directly register gamepad in device’s setup, but if you have USB-OTG gender, you can connect immediately. Q2) What is difference between general connection and mapping app connection? - The general connection refers to gamepad input mode supporting Android, and ‘mapping app’...
