Stellaris® LM3S8962 Evaluation Kit
README FIRST
The Stellaris LM3S8962 Evaluation Kit for Ethernet and CAN provides a low-cost way to
start designing Ethernet and controller area network (CAN) applications with Stellaris

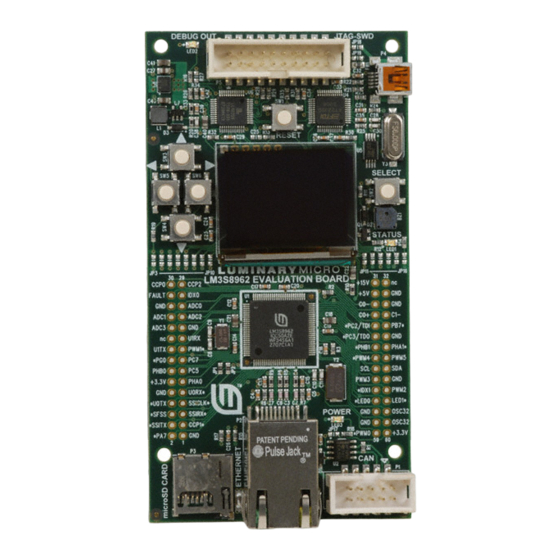

microcontrollers. The LM3S8962 Evaluation Board (EVB) can function as either a complete
evaluation target, or as a debugger interface to any external Stellaris device. The included
USB cable is all that is needed to provide power and communication to the host PC.
Stellaris One-Day Workshop - LM3S8962 README FIRST
4 - 1
Advertisement
Related Manuals for Stellaris LM3S8962
Summary of Contents for Stellaris LM3S8962
- Page 1 Stellaris® LM3S8962 Evaluation Kit README FIRST The Stellaris LM3S8962 Evaluation Kit for Ethernet and CAN provides a low-cost way to start designing Ethernet and controller area network (CAN) applications with Stellaris microcontrollers. The LM3S8962 Evaluation Board (EVB) can function as either a complete evaluation target, or as a debugger interface to any external Stellaris device.
-
Page 2: Hardware List
Procedure Hardware list: PC with a USB port, running Microsoft® Windows 2000, XP, or Vista USB cable LM3S8962 evaluation kit Software list: Workshop Installation Flash Drive 4 - 2 Stellaris One-Day Workshop - LM3S8962 README FIRST... - Page 3 1. Connect and power the EVB The LM3S8962 Evaluation Board is configured for immediate use. First, connect the LM3S8962 Evaluation Board to the LM3S2110 CAN Device Board using the 10-way ribbon cable included in the kit. The cable inserts into the header labeled CAN on each board.
-
Page 4: Quickstart Application
Exit either mode of screen saver by pressing the user pushbutton (SELECT). Press the but- ton again to start the game. The LM3S8962 Evaluation Board uses the CAN module on the LM3S8962 to communicate with the included CAN device board. During game play, the volume is adjusted by using the up and down buttons on the CAN device board. - Page 5 Since there is no DHCP server present to allocate an address to the Ethernet port on the LM3S8962 board, the lwIP stack has defaulted to a preprogrammed IP address. In order to communicate, we need to provide the PCs Ethernet port a suitable address. Depending on the OS that you’re using, the following procedure may be slightly different.
- Page 6 (if your boards’ IP address was different, simply make sure that the first three fields are the same as shown on the OLED, and the fourth is different): Click OK. Close the Local Area Connection Properties and Local Area Connection Status windows. 4 - 6 Stellaris One-Day Workshop - LM3S8962 README FIRST...
- Page 7 Start your web browser, and enter the address shown on your OLED display and press Enter. A web page, like the one below, served from the LM3S8962 should appear. If the maze image above appears as a gray box on your browser, you likely do not have Java installed on your PC.
- Page 8 Click on the symbol to expand the Ports (COM & LPT) group. Stellaris Virtual COM Part (COM#) is listed as shown in the figure below. This COM# is the device you connect to using your terminal application. In this example, the COM port is COM34 .
- Page 9 . Change the Connection Type to Serial and use the settings shown above. References The following references are included on the Stellaris LM3S8962 Evaluation Kit Docu- mentation and Software CD and are also available for download from www.ti.com/Stellaris • Stellaris LM3S8962 Evaluation Kit User's Manual •...
- Page 10 Procedure *** another blank page *** 4 - 10 Stellaris One-Day Workshop - LM3S8962 README FIRST...
