- Page 1 SGW6008 BLE WiFi Gateway User Manual Version 1.1...
- Page 2 HTTPS & MQTTS protocols with TLS1.2 standard over Wi-Fi. A connected solution for the SGW8130 BLE sensor tag and SGW111X BLE module, the SGW6008 enables hassle-free real time remote monitoring or asset tracking for IoT applications 2.
-
Page 3: Block Diagram

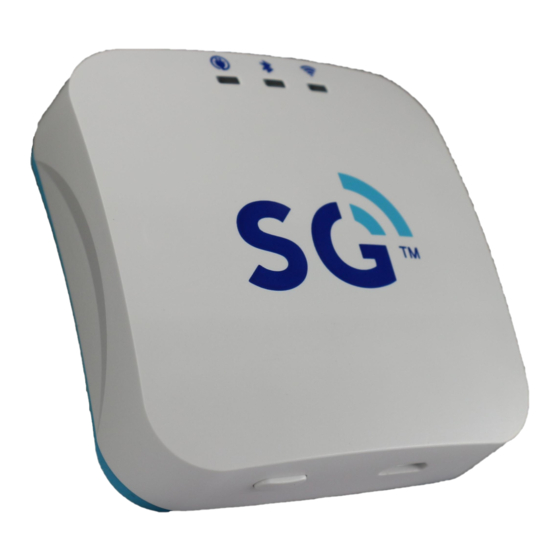

Below (Fig.1) is the block diagram of the SGW6008 BLE WiFi Gateway. Figure 1. SGW6008 BLE WiFi Gateway Block Diagram 5. SGW6008 BLE WiFi Gateway User interface and connector available on the SGW6008 BLE WiFi Gateway are shown below (Figure 2) Figure 2. SGW6008 BLE WiFi Gateway... - Page 4 SGW6008 BLE Gateway User Manual Top LEDs present on the SGW6008 BLE WiFi Gateway indicates the following status: Power LED Bluetooth LED WFi LED Normal Operation Power-on Bluetooth Signal transmission Blinking WiFi Signal transmission Blinking AP Mode Operation AP mode, Not connected...
-
Page 5: Electrical Specifications
SGW6008 BLE Gateway User Manual 6. Electrical Specifications Absolute Maximum Rating Power supply 5.5V DC Storage temperature -20°C to 80°C Recommended Operating Conditions Power supply 5.0V DC Operating temperature -10°C to 60°C BLE RF Performance Radio Operating Frequencies 2402MHz ~ 2480MHz... -
Page 6: Getting Started
Wi-Fi configuration and gateway provisioning process must be finished first in order to use the functionalities of the SGW6008. 1. Power-up the SGW6008 BLE WiFi Gateway with micro-USB cable. 2. Connect the gateway with your computer or mobile device. SSID of the SGW6008 BLE WiFi Gateway: “SGW6008_AA:BB:CC:DD:EE:FF”... - Page 7 SGW6008 BLE Gateway User Manual Wi-Fi configuration procedures: 4. Press “Scan” button in main page to scan for available Wi-Fi Access points in the area. 5. Enter the password for target Wi-Fi access point and press “+” in Action. 6. Press “OK” to confirm the setting in the Popup windows as shown below:...
- Page 8 SGW6008 BLE Gateway User Manual 7. If static IP is preferred, select “No” for DHCP and enter the IP address, Subnet Mask and DNS of the WiFi access point in the WI-FI configuration table. Press “Save Wifi Setting” button to update the setting.
- Page 9 IoT Website. Please make sure your PC or mobile device has switched to networks with proper internet connection. Edge Devices Provisioning The SGW8130 BLE Sensor Tag can be connected to the SGW6008 BLE WiFi Gateway. Provisioning procedures for edge devices SGW8130: 1. Log-in to SG Wireless IoT Dashboard Visit SG IoT Dashboard Page: “https://www.sg-iot.com”...
- Page 10 SGW6008 BLE Gateway User Manual 2. Search and Connect Edge Device Click ‘SEACH NEW BLE’ to search for nearby edge devices SGW8130. Click the Green Discovered BLE device icon which is showing the Mac Address of your target edge device Fill in the information of the edge device (name, location, description) Click “SUBMIT”...
- Page 11 8. Getting Started CE Statement Regulatory Conformance (RED) Hereby, (SG Wireless Limited) declares that the radio equipment type (SGW6008) is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following website: https://www.sgwireless.com...
-
Page 12: Revision History
SGW6008 BLE Gateway User Manual • This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter. IC Statement This device complies with RSS-247 of Industry Canada. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. - Page 13 Do not make printed or electronic copies of this document, or parts www.sgwireless.com of it, without written authority from SG Wireless. SG Wireless reserves the right to make changes to the products and LinkedIn: information herein without further notice. SG Wireless makes no warranty, representation or guarantee regarding the suitability of its https://www.linkedin.com/company/...
