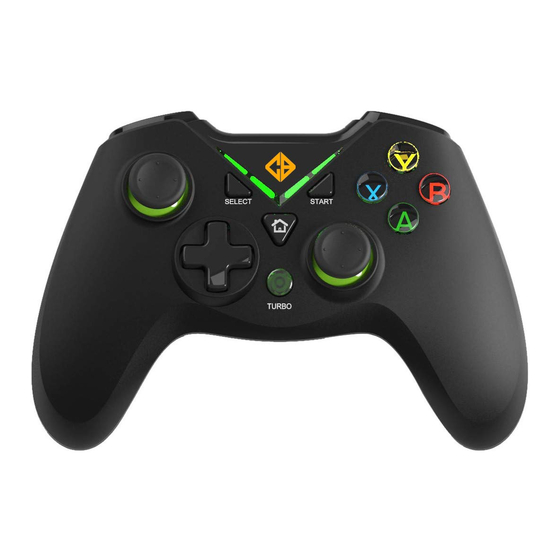

C3070W 2.4G Wireless Gamepad
SPECIFICATIONS:
Integrated Dual Mode: X-input and Direct-input for greater games compatibility
Wireless 2.4GHz technology with a range of up to 8 meters
Lithium Polymer 600mAh battery for playing up to 12 hours in a row
Charging time 2 to 3 hours
Eccentric 360˚ analog sticks for more comfort
Ultra-precise eight-way D Cross
Double triggers and analog bumpers
12 numeric buttons, including [Home], [Start], [Select]...
Backlit Action Button, [A], [B], [X] [Y]
Special "Rapid Fire" with [Turbo] mode
Dual vibration motors for maximum Games thrill
Compatibility: PlayStation 3, Android and Windows XP above
LED indicators (connection charge, discharge...)
Comfortable rubber body
Nano USB receiver
OTG Converter for Android Phone/Tablet (support OTG function)
Length of charging cable:1m ±5cm
Dimensions:158mm*103mm*69mm
Weight: 190g ±10g
COMPATIBILITY:
The controller is compatible with games running with Xinput or Dinput Mode. The controller may
not vibrate with some games, as the game may not support vibration
POWER, BATTERY, STANDBY
Power On/Off:
The back of the gamepad has a Power On/Off switch.
CHARGING THE BATTERY:
When the controller
is running out of power, the indicator light blinks quickly, in that case, you need
charge the controller.
Advertisement
Table of Contents
Related Manuals for Cosmic Byte C3070W
Summary of Contents for Cosmic Byte C3070W

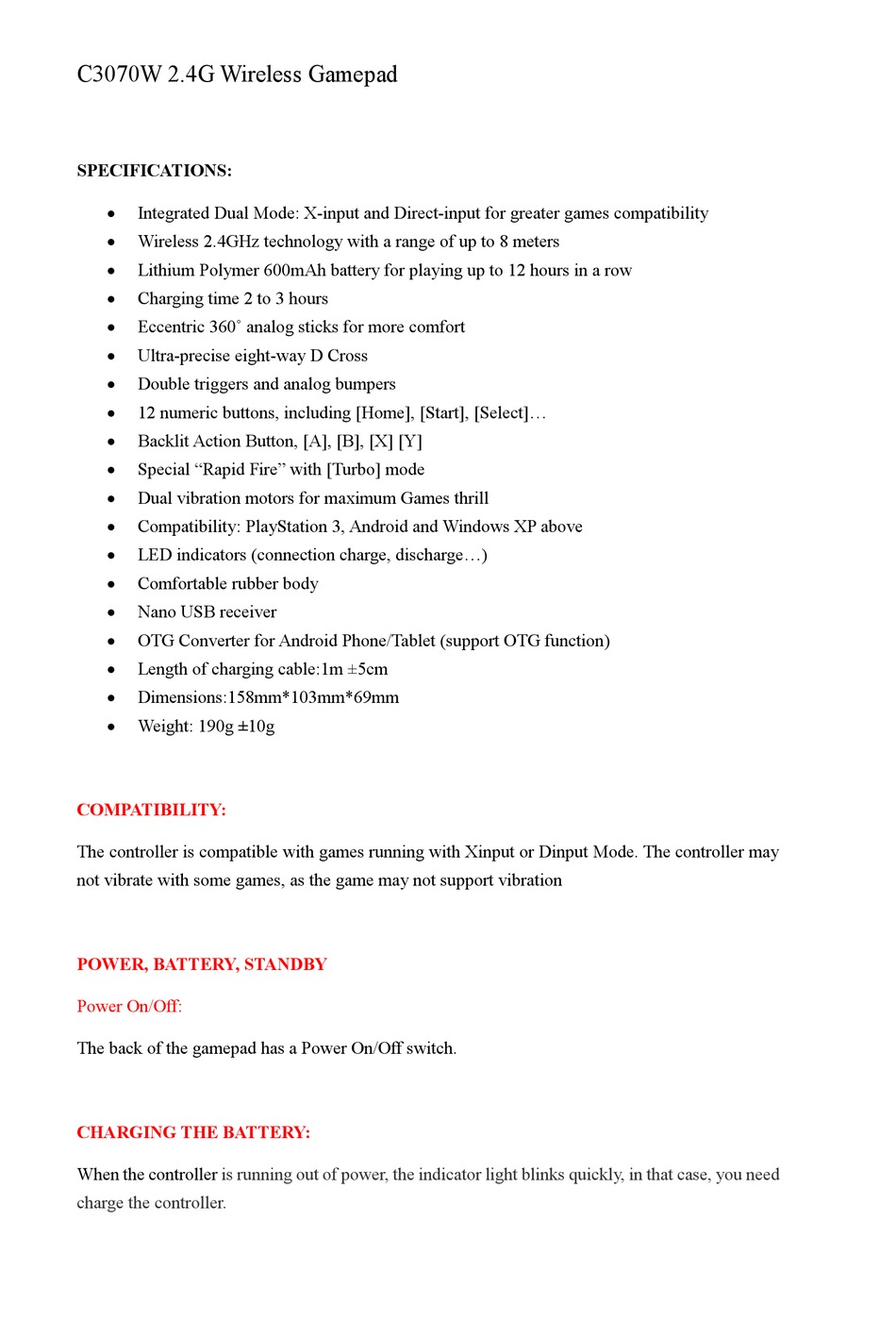

- Page 1 C3070W 2.4G Wireless Gamepad SPECIFICATIONS: Integrated Dual Mode: X-input and Direct-input for greater games compatibility Wireless 2.4GHz technology with a range of up to 8 meters Lithium Polymer 600mAh battery for playing up to 12 hours in a row ...
- Page 2 1. Connected mode: Keep the controller turned on, when the gamepad is charging, the indicator light that shows the current mode will blink slowly; when it’s fully charged, the indicator light will stop blinking and couple of minutes later, the indicator light will turn off and the controller goes into sleep.
- Page 3 HOW TO ACTIVATE THE TURBO MODE? Turbo mode is often used for FPS! It allows you auto-fire by pressing the selected button (A, B,X,Y). Thus, you avoid repetitive pressure of the same key. To activate the Turbo mode: 1.Hold the [TURBO] button 2.Then press the selected button(A, B, X, Y) 3.The Turbo function is enabled...
- Page 4 5.To operate vibration mode under Dinput mode, please install the Cosmic Byte driver COSMIC BYTE DRIVER INSTALLATION: DRIVER INSTALLATION IS ONLY REQUIRED FOR WINDOWS XP Browse the CD and double click on “Setup” and follow the instructions to install the Cosmic Byte driver. To access the settings of your controller, click [START]>[Control Panel]>[Game...
- Page 5 HOW TO CONNECT THE COSMIC BYTE CONTROLLER TO YOUR PS3? 1.Plug the USB Nano receiver to your PlayStation 3 2.Turn on your controller by setting the switch to [ON] and press [START] 3.The 4 LED indicators flash 4.Your controller is connected to your PS3 when the First LED remains on...
- Page 6 WARRANTY: Because your satisfaction is our prime concern, each Cosmic Byte product has one year warranty from date of purchase from authorized resellers only. Keep your invoice safely, we recommend stapling it to your user guide.
- Page 7 YOUR COSMIC BYTE GAMEPAD COSMIC BYTE and the Environment: CE declaration of compliance: Cosmic Byte declares that this product conforms to the main requirements and other provisions of the applicable CE directives. WEEE (Waste Electrical and Electronic Equipment): the use of this symbol indicates that this...
- Page 8 To reduce the use of hazardous substances in the manufacture of our products, Cosmic Byte undertakes to offer you the best technology in an environmentally respectful manner.
