• Cases are designed to operate at 75 degrees Fahrenheit and 55% relative humidity
Self-Contained
Remote
Length with (2) ends
Length without ends
Height with ends
Height without ends
Depth with ends
Depth without ends
Endless Design
(Dimensions are +/-1/4")
• Specification subject to change without notice

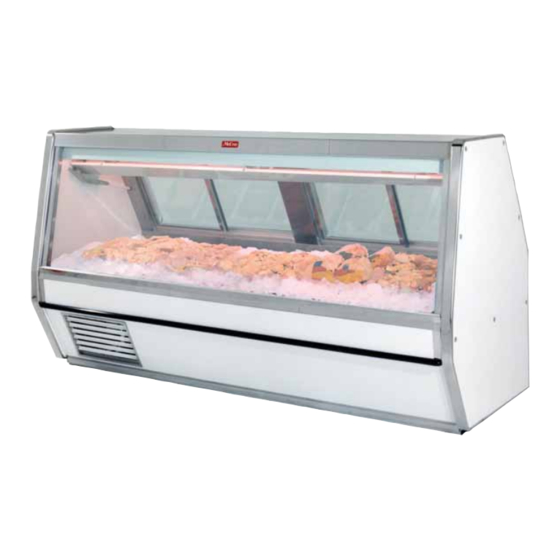

40E Series - Endless Design
Single Duty - Fish and Poultry
SC-CFS40E-8
R-CFS40E-8
100-1/2"
96"
53"
52-1/2"
40"
39-1/2"
YES
• PRODUCT SPECIFICATIONS SHEETS
SC-CFS40E-12
R-CFS40E-12
148-1/2"
144"
53"
52-1/2"
40"
39-1/2"
YES
Advertisement
Related Manuals for Howard McCray R-CFS40E-12
Summary of Contents for Howard McCray R-CFS40E-12
- Page 1 Endless Design (Dimensions are +/-1/4") • Specification subject to change without notice 40E Series - Endless Design Single Duty - Fish and Poultry • PRODUCT SPECIFICATIONS SHEETS SC-CFS40E-8 SC-CFS40E-12 R-CFS40E-8 R-CFS40E-12 100-1/2" 96" 53" 52-1/2" 40" 39-1/2" 148-1/2" 144" 53"...
- Page 2 Standard Specifications and Optional Features CONSTRUCTION UL Classified to ANSI/NSF 7 Foamed in place CFC free foam Triple pane insulated front glass- 28"H Heavy gauge steel super structure Single duty display Endless design allows for continuous line up Drain is included for cleaning INTERIOR Designer white interior ends Air insulated baffle (prevents moisture from...
- Page 3 Self Contained Remote 58" 47" 109" Self contained 983# Remote 890# 170ft 2501 Grant Avenue • Philadelphia, PA 19114 USA SC-CFS40E-12 R-CFS40E-12 148-1/2" 144" 53" 52-1/2" 40" 39-1/2" 38°F to 40°F 38°F to 40°F R134a R134a 1 per day 1 per day...
