L10004 REV B
Jan 2016
www.sonicairsystems.com

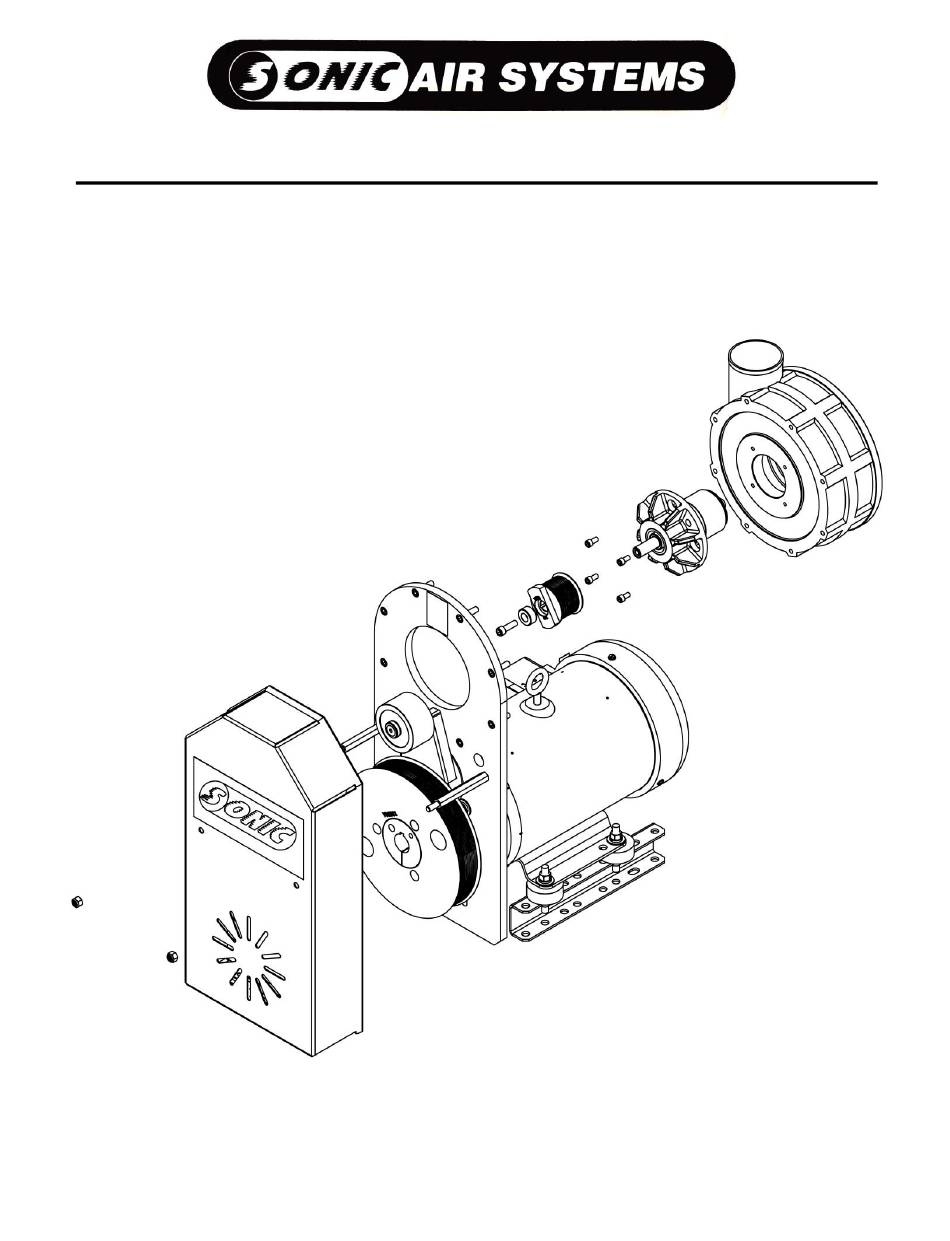

BEARING CARTRIDGE (BC) INSTALLATION QUICKGUIDE
BLOWER MODELS: SONIC 70, 85, 100, 150, 200 & 300
PART NO. 14452 – 14453 (Air Cooled "Standard")
PART NO. 16221 – 16222 (Water Cooled)
Sonic Air Systems, Inc.
1050 Beacon St
Brea, CA 92821
Tel: 714-255-0124 Fax: 714-255-8366

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SONIC 70 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Sonic Air Systems SONIC 70

  • Page 1 L10004 REV B Jan 2016 www.sonicairsystems.com BEARING CARTRIDGE (BC) INSTALLATION QUICKGUIDE BLOWER MODELS: SONIC 70, 85, 100, 150, 200 & 300 PART NO. 14452 – 14453 (Air Cooled “Standard”) PART NO. 16221 – 16222 (Water Cooled) Sonic Air Systems, Inc.
  • Page 2  Use safety glasses and hearing protection when working around the blower / motor and / or air knife assembly while the system is running. TORQUE SPECIFICATIONS Sonic 70/85 Sonic 100/150 Blower Mounting Screws 25 ft-lbs / 34 Nm Blower Cover Screws...
  • Page 3 REMOVAL INSTALLATION Remove Belt Guard (A) Note: Bearing Cartridge Kit includes (1) O-Ring (Outer) Remove Drive Belt (not shown) for Standard Blowers & (2) O-Rings(Outer + Inner) for Water-Cooled Blowers Remove Water Cooled Lines (Water Cooled Units ONLY) Add Grease (included) to O-Ring(s) installed on Bearing Remove Blower Head (C) from Bracket (B) Cartridge (G) Remove (8) Blower Cover screws, and paper Shim (D)
