Summary of Contents for IFeed HandiJet B1-6105HH

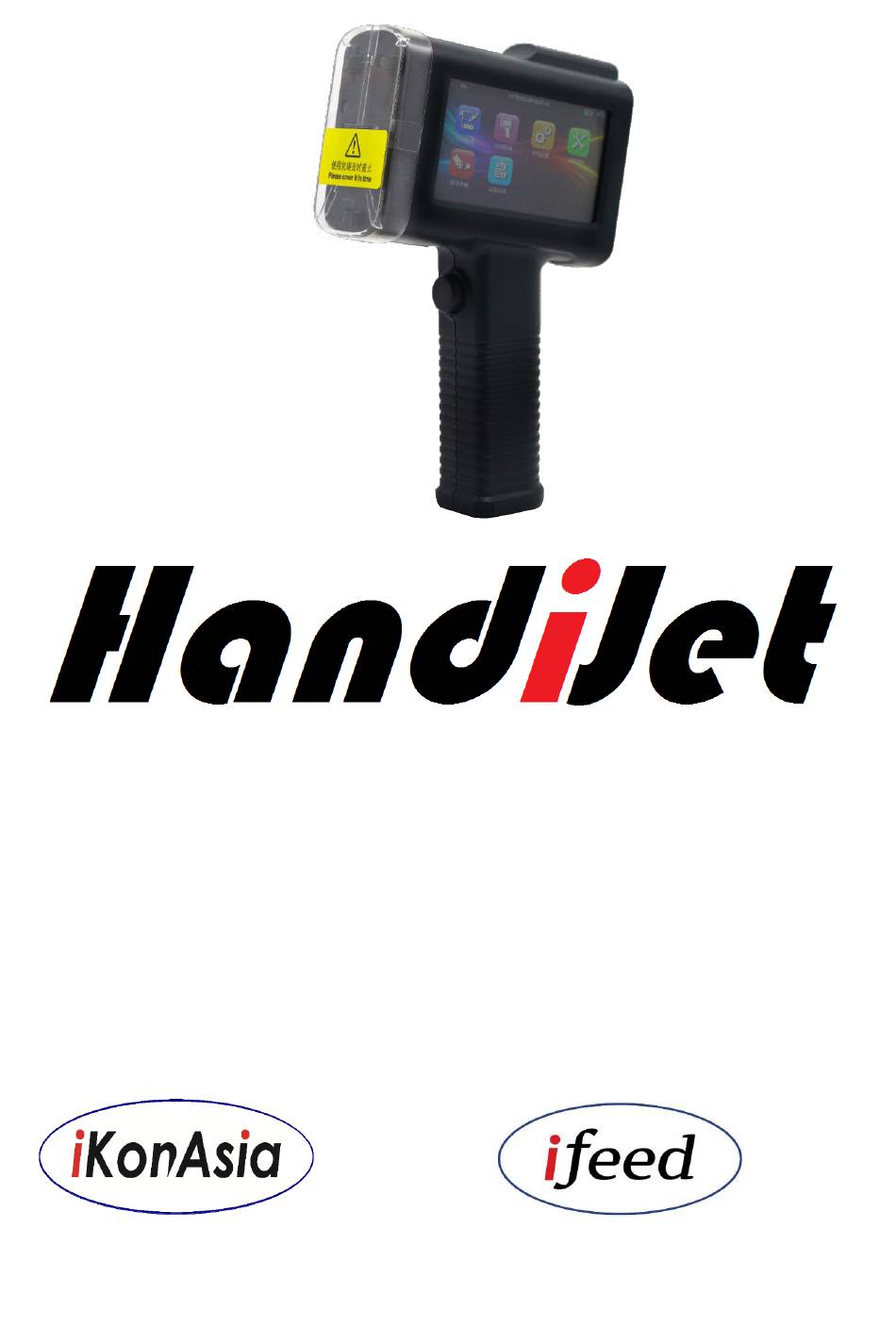

- Page 1 Hand Held TIJ Printer Model: B1-6105HH Instruction Manual Version: B1.01 www.ifeedasia.com April 2019...
- Page 2 Printer Description page 1 Light Indicator Printer ON/OFF button Open button for Ink Cartridge top cover Ink Cartridge top cover Ink Cartridge nozzle cap cover Print-go trigger button Roller Wheel Printing slot area Encoder wheel 10. External Photocell connection 11. USD Slot 12.
-
Page 3: Printer Features
Printer features page 2 1. 4.3” colour HD LCD capacitive touch screen 2. 600dpi high resolution print quality 3. Thermal Ink Jet 2.5 technology 4. Quad core CPU 5. Large capacity rechargeable battery Technical specification Content Specifications Print head Thermal Ink Jet (TIJ 2.5) Operating system Linux External source interface... - Page 4 How to insert the Ink Cartridge page 3 1. Press the Open button (3) to open the ink cartridge top cover (4). Insert the ink cartridge with the nozzle pointing downward into the printer ink cartridge compartment as shown in the picture below 2.
- Page 5 Main Menu – Home Page page 4 Create, Save, Edit and Print Message . How to create and save new message - go to Home page and press Edit - press Add - select Text, QR code, Barcode, Picture, Time or Number as required - once message has been created, press Save and create file name for Save Message...
- Page 6 How to edit current message from file page 5 - press Open and select message to be edited and press Confirm - touch the message in the display window and then press Edit - after editing press Confirm and save under current name or new name How to open and load message for printing - go to Home page, press Edit - press Open...
- Page 7 How to select message for Group printing : page 6 - open Group print and press Add - select the messages required for Group printing and press Confirm - the selected message will appear in the display window - to arrange the message in print sequence, press the Up and Down arrow icon to select the message to be printed in sequence - once the print sequence is correct, press Print - press the print-go trigger once for each message and at the end of the print...
-
Page 8: Maintenance
6. Time – adjustment of Real Time Calendar page 7 7. Language – selection of operating languages available 8. Factory Default – reset of printer to factory default setting Maintenance This section is for the maintenance of the ink cartridge, nozzle testing and test page print and Firmware upgrade. - Page 9 Precautions page 8 Always replace the ink cartridge cap cover when printing is completed or if the printer is not in used for long period to prevent the nozzle from drying or clogging. Always used a dry lint free cloth or materials to wipe the print nozzle before or after printing to prevent dry ink from clogging the nozzle.
