TECNARIA P560 Operating Instructions

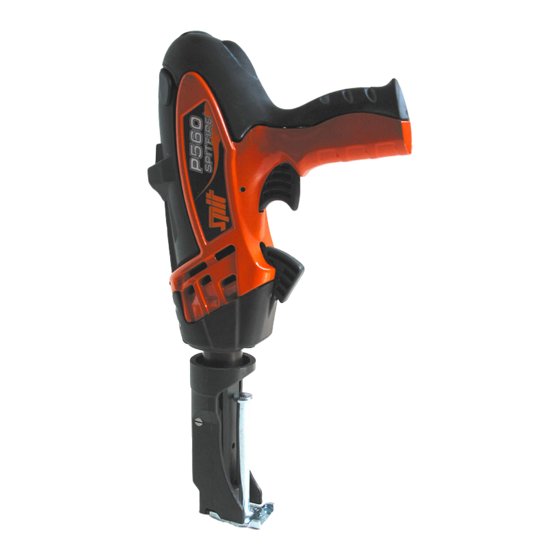

OPERATING INSTRUCTION FOR THE SPIT P560 TOOL
with special adaptor (Pin Guide) for DIAPASON connector
Cover n° 23
1
2
3
Pin guide n°1

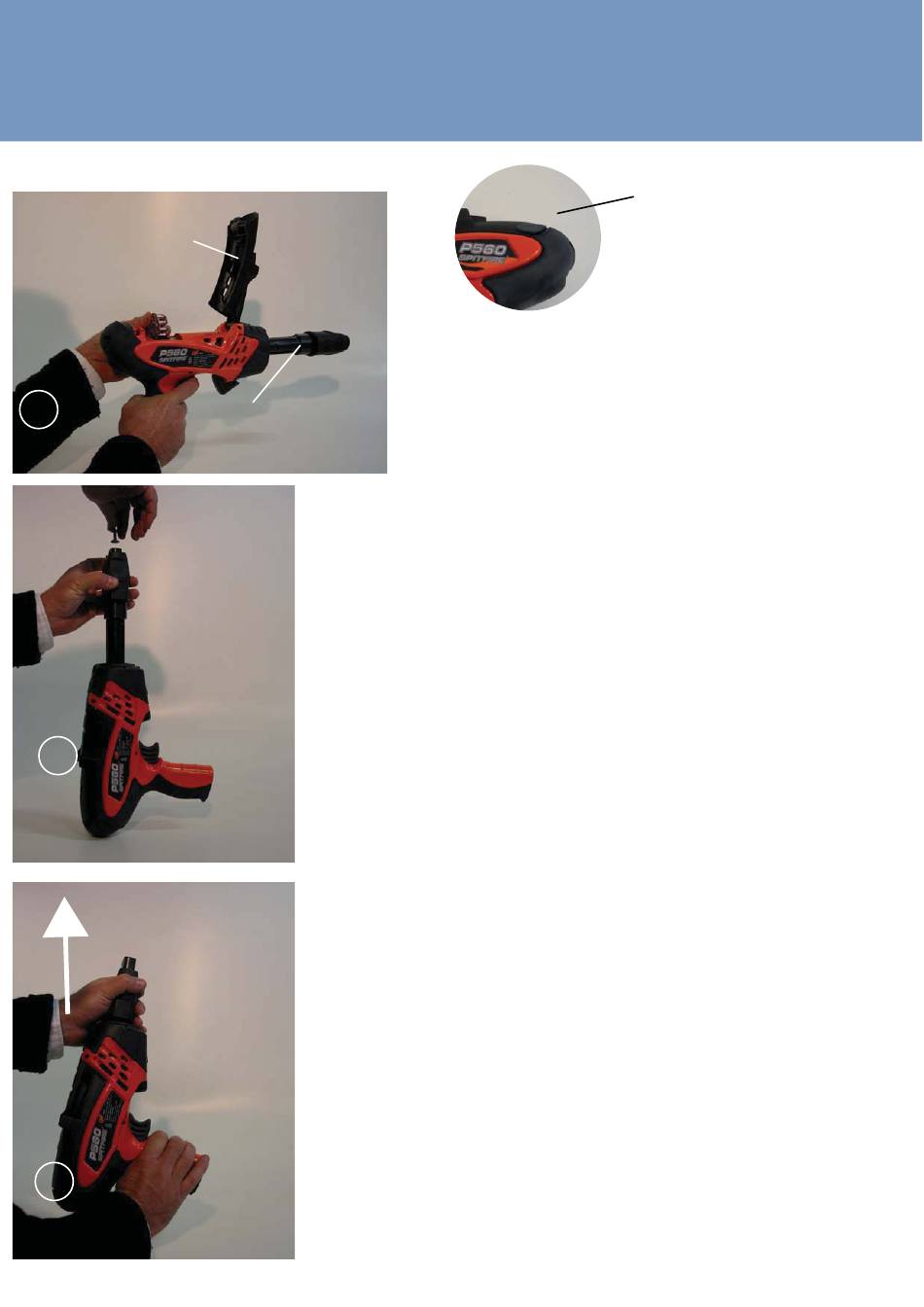

LOADING THE CARTRIDGES

LOADING THE PINS

RELOADING
1) Press the button (n° 24) to open the cover (n° 23)
2) Fully open the pin guide (n°1)
3) Place the disc in the housing
4) Close the cover (n° 23)
Fully open the pin guide (n°1).
Hold the tool with the pin guide pointing vertically
upwards. Insert the nail into the hole of the pin guide
(head first). A magnet will keep the nail in the correct
position.
Point the tool towards the ground. Now the tool is ready
for firing.
Hold the tool and the connector perpendicular to the
work surface, press firmly against the working surface
and pull the trigger.
In order to reload the tool fully extract the pin guide and
repeat the procedure. Each disc contains 10 cartridges
TECNARIA Spa
http://www.tecnaria.com
tel * 39 (0)424 502029 r.a.
Technical assistance: Mr. Pavel
Black cover button n° 24
