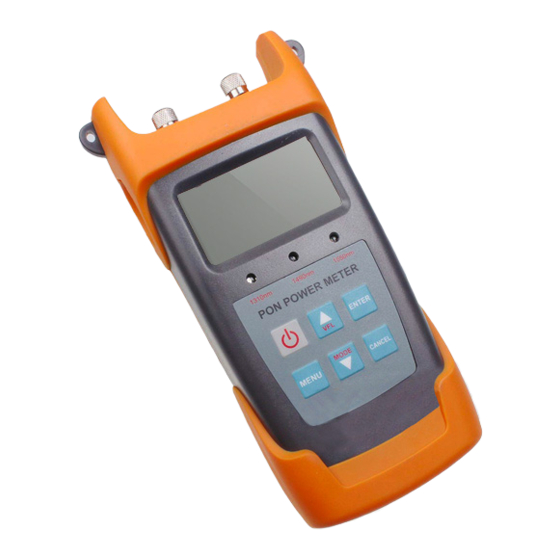

- Page 1 ST-3213 PON Optical Power Meter User Manual PON Optical Power Meter ST-3213 Series Version：V2.00...
-
Page 2: Notes
ST-3213 PON Optical Power Meter Notes Icon Meaning： In this manual will appear some text with the below icon，The meaning as follows： Warning：Improper behavior and operation, to prevent any wrongdoing and harm. Note： Due to the improper operation may cause harm to the human body or product, so special note to warn the user. -
Page 3: Table Of Contents
ST-3213 PON Optical Power Meter To prevent electric shock, please do not open the product case, must be the company authorized by a qualified professional personnel for repair; Do not expose this product in the rain or damp environment, so as to avoid fire or click on the occurrence of danger! Due to the laser can cause the big harm to eyes, please do not look directly into the laser output when you use the tester. -
Page 4: Standard Configuration
1.5VAA Battery Chapter 2. Overview ST-3213 Series PON Optical Power Meter target at the FTTx application and maintenance. This power meter is able to simultaneously test and estimate the signals of the voice, data and video. It is an essential and ideal tool for the construction and maintenance of the PON projects. -
Page 5: Technical Specifications
ST-3213 PON Optical Power Meter ⑷．Use the software connect with PC, setting the threshold, data transfer, and calibration the wavelength. ⑸．USB communication port enables data transfer to a PC.1000measurement items can be saved in ST-3213 PON power meter or computer for data review. ⑹... - Page 6 ST-3213 PON Optical Power Meter Output power(max) 15dBm Isolation@1310/1550(dB) >40dB 1550 downstream measurement Pass Zone(nm) 1535nm～1570nm MeasurementRange(dBm -40dBm～+20dBm Output power(max) 25dBm Isolation@ >40dB （1310/1490nm） Measurement Accuracy Connatural ±0.5dB uncertainty(dB) Linearity(dB) ±0.1dB Passing through insertion <1.5dB Loss(dB) General Information Detector Type InGaAs Optical Connector FC/SC/ST Interchangeable/2.5 universal...
- Page 7 ST-3213 PON Optical Power Meter ： Normal Optical Power Meter Module： Normal Optical Power ② ST-3213 ST-3213A ST-3213AP Meter Measurement Accuracy Connatural ±0.5dB uncertainty(dB) Linearity(dB) None ±0.1dB Measurement -70dBm～+6dBm Range(dBm) General Information Measurement Unit dB/dBm Resolution (dB) 0.01dB None Calibration 1300/1310/ 850/1300/1310/ Wavelength(nm)
-
Page 8: Instruction
ST-3213 PON Optical Power Meter Chapter 4.Instruction ST-3213 / ST-3213A two models are different between functions and the form, detailed in this chapter, please check carefully. 1. Description OLT/VIDEO：1490nm/1550nm Down Stream （1310nm） ONT：1310nmUp Stream Port 3- VFL or OPM Port 4- Display 5- ONT 1310nmUp Stream Port LEDs... - Page 9 ST-3213 PON Optical Power Meter 10- ENTER: Confirmation the function selection and saving the data. 11- MENU: PON/CW Power meter module Option 12- DOWM,In the first interface,Switch betweenVFL in continuous light (the CW) and pulse light (HZ) 13- CANCEL:Function cancel 14- USB PORT ④：Only ST-3213A and ST-3213AV up/down keys for VFL function PON Online test connection diagram...
- Page 10 ST-3213 PON Optical Power Meter Variable Optical Attenuator Data Networks Analyser Optical Splitter IXIA/Smartbits …… 1490nm Fiber 1310nm Lamda Multiplexer The sensitivity test configuration diagram Data Communication install ST-3213.EXE driver softwareCP210x_VCP_Win2K_XP_S2K3.exe. Connect ST-3213PON power meter to the computer’s port using the provided USB cable, Open the software as shown in below figure: Upload the data （1）Open the ST-3213PON power meter，first of all click...
- Page 11 ST-3213 PON Optical Power Meter （3）click the button “Del Cur”or “Del All”to delete the data. Please refer to below figure for better understanding. ： Threshold Setting From the toolbar, select “Threshold Setting”, and click “Threshold Setting”icon to type or modify the threshold value. “Upload threshold value”icon to read the threshold set.
- Page 12 ST-3213 PON Optical Power Meter “Del Cur”or “Del All”to delete the values. Click Choose “Calibration” tab, the user can perform user self-calibration operation also can choose “Factory Default” mode. For example, the current optical power at 1310nm is -10dBm, type -10dBm in the text box of input standard power, and click Calibration tab, then finished the calibration operation at 1310nm wavelength.
- Page 13 ST-3213 PON Optical Power Meter As shown in above figure, the LCD will display simultaneously three wavelengths of 1310nm upstream measurement and 1490nm,1550nm downstream measurements. When optical signal is present under test, the optical channel will display power levels in dBm, when optical signal is not available, then the optical channel will display “LOW”.
- Page 14 ST-3213 PON Optical Power Meter “ ” to choose the required threshold value,(The thresholds rang and name have already set in the software, and also download to the instrument, please check with the user manual of Chapter 6 data communication), For example choose threshold and name it as ”.
- Page 15 ST-3213 PON Optical Power Meter ” back to the testing menu. Press“ Clean the tested optic cable, connect with OLT/VIDEO port and ONT port, (SC type connector), noted with the optic adaptor type, the optical adaptor will be break, and the tested value will be faulty if the un-matched adaptor connected Pay attention to the type of the measured optical fiber connectors, does not match the type of access instrument, may damage...
- Page 16 ST-3213 PON Optical Power Meter ”, there will displaying saving on the screen, check with the Press“ ” saving, and upper pic. The data recording series No.is002. press“ “ ” for cancel, and the saving recording can be checked in the “data view”...
- Page 17 ST-3213 PON Optical Power Meter the non-matched connecting will make the damage of the connector on the instrument and also make the faulty of the measuring result. E.g.: 1310nm measurement, after connect with the optic fiber, it will displaying ”, set the -20dBm as the reference value, and it will also -20dBm, press“...
- Page 18 ST-3213 PON Optical Power Meter port (FC adaptor), after open the instruments, press “ ” to activate this function, then can see the visual laser at the breaking point or the end of the pigtails. Press “ ” to shift the CW and the Hz wavelength. And press again to close this function ⑥：ST-3213&ST-3213AP without this function.
- Page 19 ST-3213 PON Optical Power Meter Red----Represents Fail Behind“ThreshSel”displays selected threshold setting order number from 1~10, and behind “Name” displays selected threshold name, press to select the corresponding shresholds. With using ST-3213.exe software to modify the values range and names of thresholds (Detailsas explained iterm 5-Data Communication.) Status LEDs-JW3212B...
- Page 20 ST-3213 PON Optical Power Meter There are two language English and Chinese to Choose, Press ” to select “Language” option, Press “ “ ” to exit and cancel the current operation. Time setting In item 5 have “ Time Setting”Press select the “Time Set”option, and press to change year-month-date-time...
- Page 21 ST-3213 PON Optical Power Meter to highlight “History Data” option. There are three options in History data: ⑴ ．”Data View” Under “History data”, use to highlight “Data View”, press “ ” to confirm and view the history data as shown in below figure.
- Page 22 ST-3213 PON Optical Power Meter Under “History data”, use to highlight “Del Cur”, press “ ” to confirm to delete the current data as shown in below figure. ． ⑶ ．“Del All” Under “History data”, use to highlight “Del All”, press “...
-
Page 23: Troubleshooting
ST-3213 PON Optical Power Meter Chapter 5. Troubleshooting Problem Possible Cause Solution No display on 1. Power Off ” to turn 1. Press“ the LCD 1. Lower Battery 2. Change the battery 1.Optical interface 1Clean the fiber optic Inaccurate is not clean interface measurements 2. - Page 24 ST-3213 PON Optical Power Meter Chapter 6 Maintenance To help ensure long, trouble-free operation: 1) Always keep clean fiber-optic connectors before using, keep the unit free from oil and dust. 2) Do not use unclean, non-standard fiber-optic connector adapter, do not insert to bad fiber-optic connector interface which may cause the system out of the work.
-
Page 25: Warranty & Servicing
Butthe freight cost and related taxes will be shared by both parties. SUNMA will pay the shipping cost from customer side to SUNMA and pay the import taxes in China. Customer will pay the shipping cost from SUNMA to customer side and its local import taxes accordingly. - Page 26 ST-3213 PON Optical Power Meter Appendix I An important message from SUNMA SUNMA guarantees that any information you supply will remain confidential. By returning this card, you will automatically be notified about updates, modifications, and recalibration. CUSTOMER SERVICE Phone: 86-27-51779650 Fax: 86-27-51778865 info@SUNMAFiber.com...
- Page 27 Company Name: Company Address: TEL: FAX: E-mail: Note：Please fax this note within one month from the date of receiving units。 Do you have any comments on the quality of this product or the service from SUNMA? TEL：021-51779650 FAX：021-51778865 HTTP：www.SUNMAFIBER.com E-mail: INFO@SUNMAFIBER.com...
