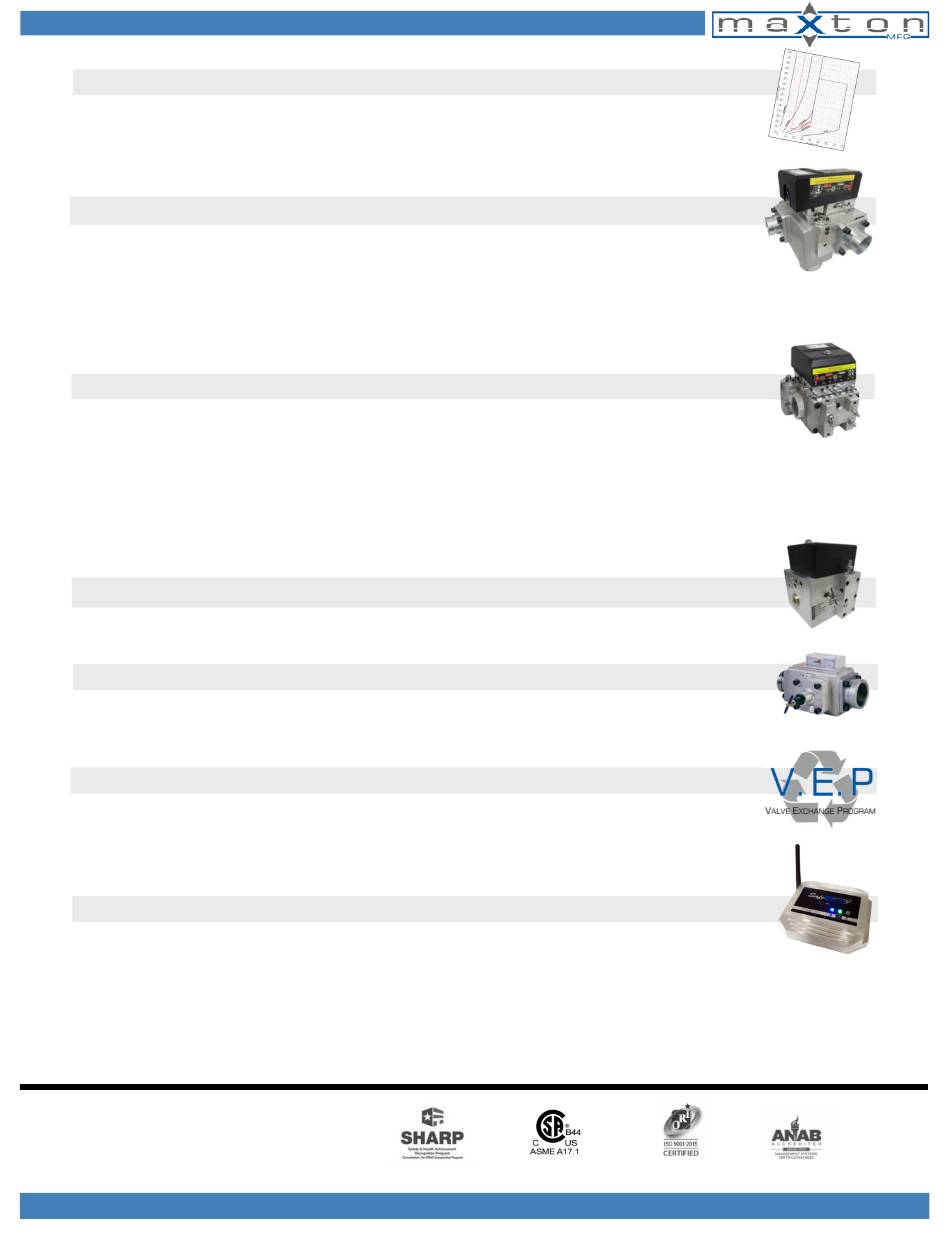

TABLE OF CONTENTS

ENGINEERING DATA............................................................................................ 1 - 12

- Table of Contents
- Terms and Conditions
- Job Specification Sheet
- Application Flow Chart
- Application Flow Chart (Down Speed Regulated Valves)
.....................................................................................................13 - 34

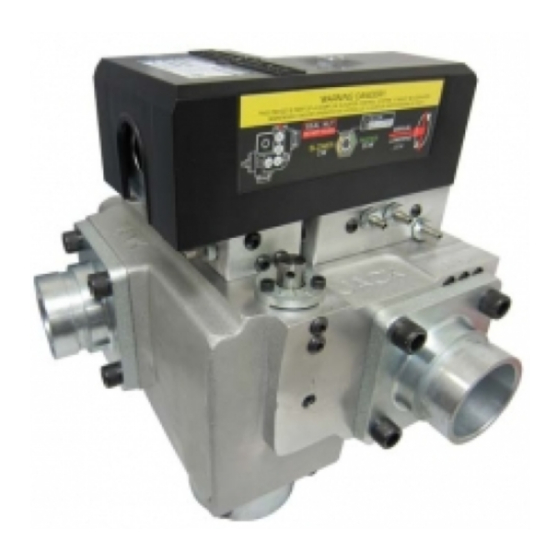

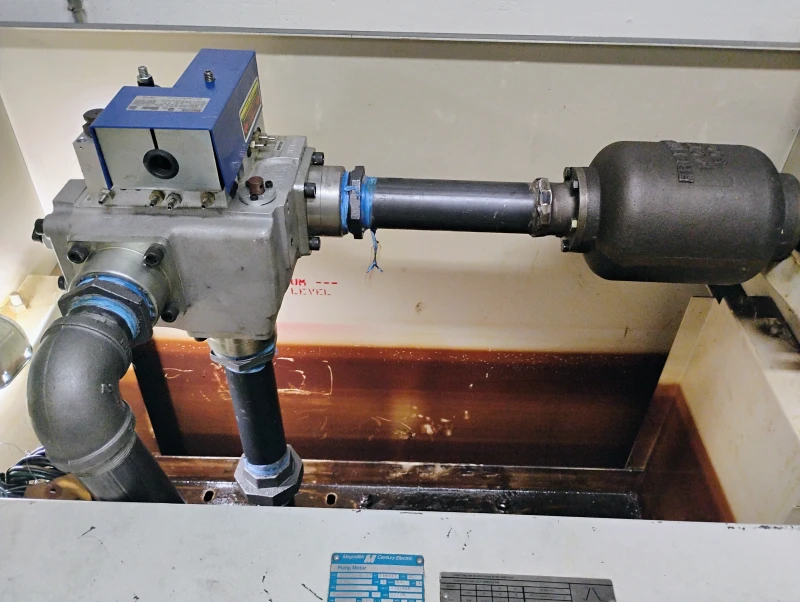

- UC1A, UC2AB44 Hydraulic Controllers
- Exterior Dimensions UC1AB44
- Exterior Dimensions UC2AB44
- Adjustment Procedure UC1, UC1A, UC2, UC2A (B44)
- Exploded View UC1AB44
- Exploded View Parts List UC1AB44
- Exploded View UC2AB44
- UC4, UC4MB44 Hydraulic Controllers
- Exterior Dimensions UC4, UC4M, UC4MR (B44)
- Guide Configurations UC4, UC4M, UC4MR (B44)
- Adjustment Procedure UC4, UC4M, B44)
- Dual Valve Adjustment Procedure
- Exploded View UC4, UC4MB44
- Exploded View Parts List UC4, UC4MB44
- Seal Ring Locations UC4, UC4M, UC4MR (B44)
EMV10................................................................................................................... 65 - 68
- EMV10B44 Hydraulic Controller
- EMV10B44 Specifications
OSV...................................................................................................................... 69 - 76
- OSV Safety Valve (Pipe Rupture) & Shut Off Valve
- OSV Adjustment Procedure
- OSV Tripping Flow Table
- OSV Tripping Speed Chart
MAINTENANCE....................................................................................................... 77- 88
- Valve Exchange Program (VEP)
- Pump Flange Replacement
- Coil Specifications
- Coil Exterior Dimensions
- Seal Kit and Safe Use Recommendations
SUPPORT PRODUCTS........................................................................................... 89 - 102
- Shut Off Ball Valves
- Bleed Port
- Interlock Hydraulic Valve
- SafeTach2
- Water Valve / Explosion Proof Coil Cover
- TA4M (Field Training Unit)

Certifications
Maxton is ISO 9001:2015 certified and all main line products are
CSAB44 and/or UL Listed.
1728 Orbit Way - Minden, Nevada 89423
.......................................................................................... 35 - 64
Copyright 2019 Maxton Manufacturing Company All Rights Reserved
P: 775-782-1700 F: 775-782-1701
- Static Pressure Table
- Rated Flow Table
- Static Pressure Table (Metric)
- Rated Flow Table (Metric)
- Single Action Cylinder Displacement
- Exploded View Parts List UC2AB44
- Seal Ring Locations UC1, UC1A, UC2, UC2A (B44)
- Operating Sequence UC1, UC1A, UC2, UC2A (B44)
- Hydraulic Schematic UC1AB44
- Hydraulic Schematic UC2AB44
- Operating Sequence
- Hydraulic Schematic UC4, UC4MB44
- UC4MRB44 Hydraulic Controller
- Adjustment Procedure UC4MRB44
- Exploded View UC4MRB44
- Exploded View Parts List UC4MRB44
- Hydraulic Schematic UC4MRB44
- Trouble Shooting Procedures UC4, UC4M, UC4MR (B44),

- RV100 Conversion Kit
- DUAL OSV Adjustment Procedures
- OSV25 Safety Valve (Pipe Rupture)
- OSV25 Adjustment Procedure
- Seal Kits
- Solenoid, Solenoid Seat and Ball Cage Kits
- Solenoid Kits UC1A/2A, UC4/4M/4MR
- Seal Rings

- PSNO-2 (Low Pressure Switch)
- Isolation Coupling
- TDF (Tank Discharge Filter)
- Adapters (Thread to Grooved, 2" to 3/4" )
- Quick Disconnect (Two Way Shut Off)
- MaxGlide (Oil Additive)

info@maxtonvalve.com



www.maxtonvalve.com
\\SERVER\CATALOG 2019\2019 Catalog Rev 2
1
