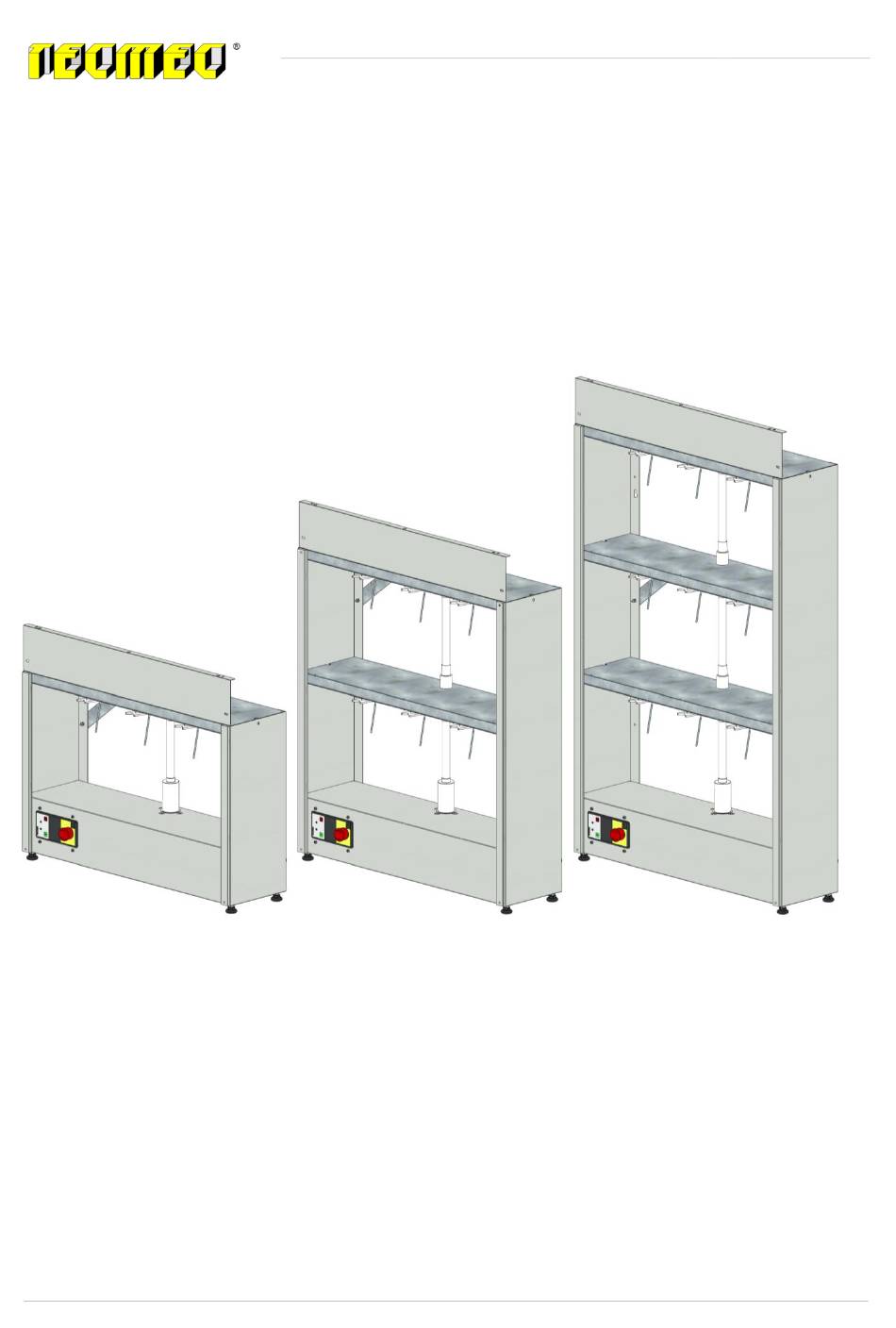

- Page 1 Sirio HH Compact Instruction and maintenance manual Page 1 di 24 Instruction n° - Rev. 4 datel 19/10/2017 Sirio HH Compact Code. 012633 Code. 012634 Code. 012635 Instruction and maintenance manual Copyright © 2017TecmecS.r.l. Translated from the ORIGINAL instructions...
-
Page 2: Table Of Contents
Sirio HH Compact Instruction and maintenance manual Page 2 di 24 Instruction n° - Rev. 4 datel 19/10/2017 Indice ENERAL INFORMATION ANUFACTURE IDENTIFICATION RODUCT IDENTIFICATION CE D ECLARATION EFFERED NORMS ARRANTY QUIMENT ESCRIPTION AFETY AFETY NORMS LECTRICAL POWER SUPPLY ORKING ZONES... -
Page 3: Eneral Information
Sirio HH Compact Instruction and maintenance manual Page 3 di 24 Instruction n° - Rev. 4 datel 19/10/2017 ENERAL INFORMATION 1.1 Manufacture identification TECMEC S.r.l. Località Faustina, 63 20080 Albairate (MI) – Italy Tel: +39 02 9469871 Fax: +39 02 94698741 e-mail: tecmec@tecmec.com... -
Page 4: Ce Declaration
Sirio HH Compact Instruction and maintenance manual Page 4 di 24 Instruction n° - Rev. 4 datel 19/10/2017 1.3 CE Declaration Copyright © 2017TecmecS.r.l. Translated from the ORIGINAL instructions... -
Page 5: Reffered Norms
Sirio HH Compact Instruction and maintenance manual Page 5 di 24 Instruction n° - Rev. 4 datel 19/10/2017 1.4 Reffered norms 2006/42/CE Machine directive 2014/35/UE Low voltage directive UNI EN ISO 12100:2010 Safety Machinery - General Principles for Design - Risk reduction and... -
Page 6: Equiment Description
Sirio HH Compact Instruction and maintenance manual Page 6 di 24 Instruction n° - Rev. 4 datel 19/10/2017 QUIMENT ESCRIPTION The timed dispenser HH Compact is an equipment designed for the professional sector. The unique feature of this equipment is to store/stow in a sheltered place the color pastes contained in suitable container/cans. -
Page 7: Safety
Sirio HH Compact Instruction and maintenance manual Page 7 di 24 Instruction n° - Rev. 4 datel 19/10/2017 AFETY 3.1 Safety norms The products of the series HH Compact must be included in the assessment of the corporate risk, and requires compliance with applicable laws regarding safety at work . -
Page 8: Working Zones
Sirio HH Compact Instruction and maintenance manual Page 8 di 24 Instruction n° - Rev. 4 datel 19/10/2017 3.3 Working zones The zones where improper use and not allowed intervention may present risks are the below mentioned : Operator Zone (front zone: for cans loading and unloading lateral zone: dispensing ) ... -
Page 9: Symbols Shown On The Equipment
3.7 Intended use of the equipment The unique feature of this equipment is to store/stow in a sheltered place the color pastes contained in suitable container/cans (not provided byTecmec) closed by suitable lids (provided by Tecmec). 3.8 Non intended use Any other use of this equipment that are not described in this manual are considered improper and therefore prohibited. -
Page 10: Transport And Handling
Sirio HH Compact Instruction and maintenance manual Page 10 di 24 Instruction n° - Rev. 4 datel 19/10/2017 RANSPORT AND HANDLING The equipment are packed in special cardboard boxes and transported on pallets. Each box is labeled with: type of module, code, production order. -
Page 11: Installation
Sirio HH Compact Instruction and maintenance manual Page 11 di 24 Instruction n° - Rev. 4 datel 19/10/2017 NSTALLATION Warning Consider the size and weights of the various components that will be moved is fundamental constraint that the below mentioned installation steps are carried out by four (4) person. - Page 12 Sirio HH Compact Instruction and maintenance manual Page 12 di 24 Instruction n° - Rev. 4 datel 19/10/2017 in case of wall mounting go to step F Proceed with the assembly of the leveling feet and nuts. Verify that the floor where the dispenser will be installed, is leveled.
- Page 13 Sirio HH Compact Instruction and maintenance manual Page 13 di 24 Instruction n° - Rev. 4 datel 19/10/2017 Fixing point Independently if it will be positioned on the floor or against the wall, the dispenser must be secured against the...
-
Page 14: Operating
Sirio HH Compact Instruction and maintenance manual Page 14 di 24 Instruction n° - Rev. 4 datel 19/10/2017 OPERATING 6.1 Operation instruction and electrical panel adjustment The mixing machine is controlled by a electrical panel with internal CPU, that will generate the signal/input to the agitation motor. -
Page 15: Customized Agitation And Pause Settings
Sirio HH Compact Instruction and maintenance manual Page 15 di 24 Instruction n° - Rev. 4 datel 19/10/2017 6.2 Customized agitation and pause settings The factory setting (012245) is setted as follow: 20 minutes agitation 240 minutes pause. If necessary, you can change these settings by doing the following:... - Page 16 Sirio HH Compact Instruction and maintenance manual Page 16 di 24 Instruction n° - Rev. 4 datel 19/10/2017 Pause time (min.) Shaking time (min.) 60 min. 10 min. No jumper No jumper 120 min. 15 min. Jumper on C Jumper on B 180 min.
- Page 17 Sirio HH Compact Instruction and maintenance manual Page 17 di 24 Instruction n° - Rev. 4 datel 19/10/2017 6.3 Change of function mode Regardless of the factory settings, if necessary, the electronic control panel can be changed from cyclic (ON/OFF) into timer (only one stirring cycle).
-
Page 18: Loading And Unloading Of Cans
Sirio HH Compact Instruction and maintenance manual Page 18 di 24 Instruction n° - Rev. 4 datel 19/10/2017 6.4 Loading and unloading of cans Add or remove the cans from the respective location only when the machined is turned off. -
Page 19: Aintenance
. 2- once the procedure is done, restore the equipment by pressing the green START button. For any other kind of issues or doubts, please, contact the Customer Service Dep. in Tecmec. 7.2 Non use periods... -
Page 20: Roubleshooting
The feets are not adjusted correctly. The panel is on, but the motor Fuse blown Change fuse. is not working. For any other kind of issues or doubts, please, contact the Customer Service Dep. in Tecmec Copyright © 2017TecmecS.r.l. Translated from the ORIGINAL instructions... -
Page 21: Specifics
Sirio HH Compact Instruction and maintenance manual Page 21 di 24 Instruction n° - Rev. 4 datel 19/10/2017 PECIFICS Feature Value U.M. Dimension Height min 640 / max 1310 Width Depth column Net ( without colorrants ) Minimum Maximum Operating temperature 10÷40... -
Page 22: Electrical Schematic
Sirio HH Compact Instruction and maintenance manual Page 22 di 24 Instruction n° - Rev. 4 datel 19/10/2017 LECTRICAL SCHEMATIC 10.1 Wiring electrical panel standard motor single phase Copyright © 2017TecmecS.r.l. Translated from the ORIGINAL instructions... -
Page 23: Disposal
Sirio HH Compact Instruction and maintenance manual Page 23 di 24 Instruction n° - Rev. 4 datel 19/10/2017 ISPOSAL Before caring out any kind of operation disconnect the power plug. This equipment can't be disposed as domestic waste. In case of disposal, dismantle and divide as much as possible the different parts of the equipment based on the different materials, (such as pipes, rubber components, lubrificants, solvent, paints, aluminum, copper, ferrous, material etc.) -
Page 24: Instruction And Maintenance Manual Page 2 Di
Sirio HH Compact Instruction and maintenance manual Page 24 di 24 Instruction n° - Rev. 4 datel 19/10/2017 PARE PARTS 012245 Electrical panel IP54 20on/240off 012245-M15 101997 Motor Reducer 0.18Kw 220V 50Hz 20/1 017312 Joint Ø14/Esag. 12 001213 Idle Gear Ø60 001212 Gear Ø60 with hexagonal pin...
