SecuControl ITS 4600 Series Reference Handbook

Test blocks & plugs
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
ITS / STP Test Blocks & Plugs (4600 Series)
Reference Handbook
its-reference-en 25:7b8f23f68741

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ITS 4600 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SecuControl ITS 4600 Series

Summary of Contents for SecuControl ITS 4600 Series

  • Page 1 ITS / STP Test Blocks & Plugs (4600 Series) Reference Handbook its-reference-en 25:7b8f23f68741...
  • Page 2 This information is printed on the front cover of this document, underneath the title. The latest release of this document can be downloaded from www.secucontrol.com/downloads. Alternatively, you may contact at any of the addresses provided on the rear cover of this document.

  • Page 3: Table Of Contents

    Contents 1 Introduction The ITS / STP Test Block & Plug (4600 Series) ....Key Features ....... . . Applicable Models .
  • Page 4 CONTENTS 8 Ordering Information Part Numbers for ITS Test Block (4600-Series) ....Part Numbers for STP Test Plug(4600-Series) ....Configuration Selection Chart .

  • Page 5: Introduction

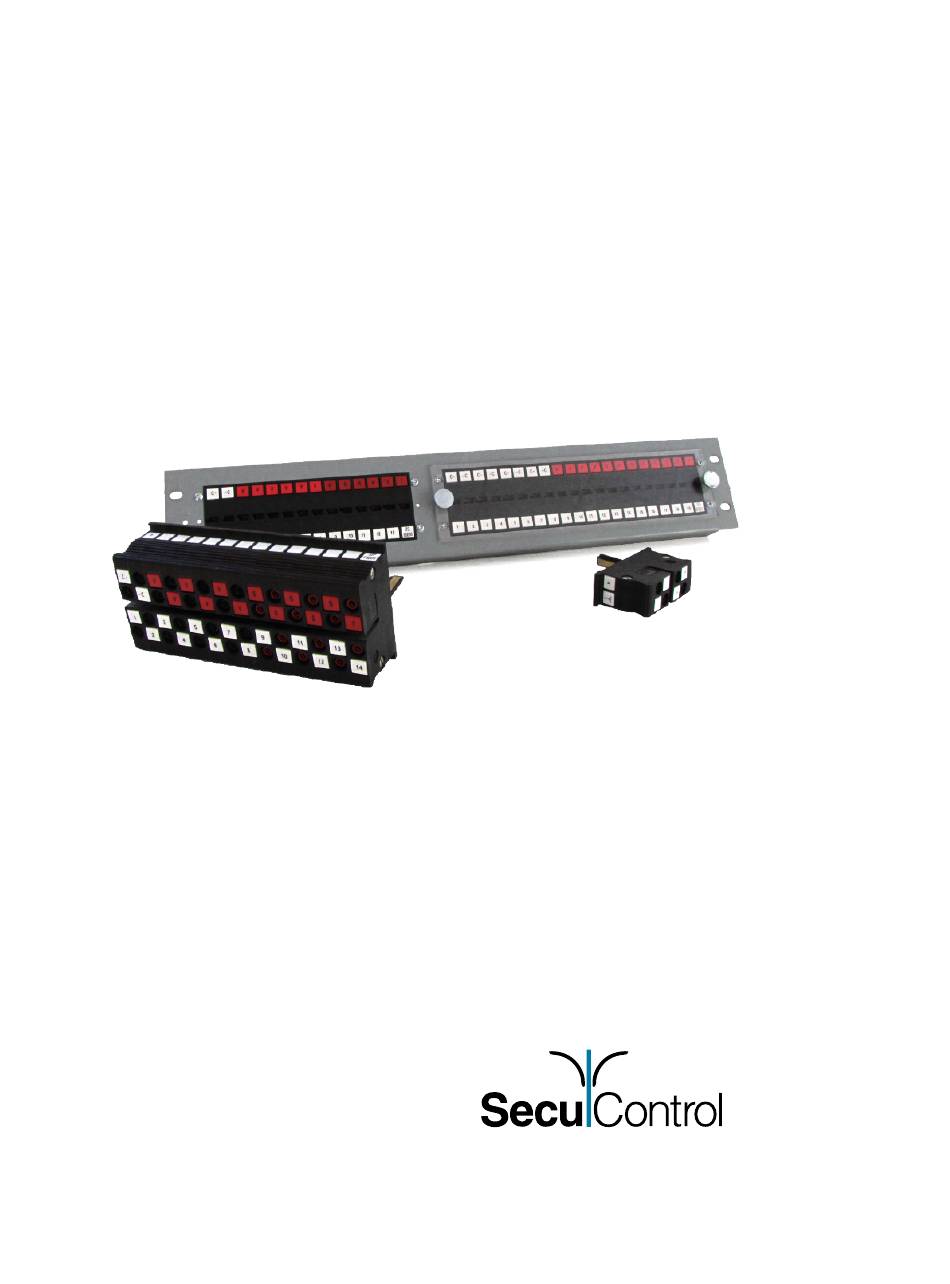

    1 Introduction The ITS / STP Test Block & Plug (4600 Series) The ITS is a test block for interfacing substation devices (protection relays, fault recorders, revenue meters, . . . ) to the voltage and current transformers and to other equipment on the system side of a power grid.

  • Page 6: Unpacking

    Do not disassemble the test block or test plug. Correct alignment of internal parts is critical in order to provide insulation and arch-avoidance. The warranty will be void if the test block or test plug is disassembled (or otherwise handled inappropriately). SecuControl does not assume responsibility for any dam-...
  • Page 7 General Safety Instructions ages arising out of mishandling of our products, including test blocks / test plugs that have been disassembled by parties other than SecuControl.

  • Page 9: Application

    2 Application Schematic Symbols Following symbols are suggested in order to represent the ITS Test Block in schematic diagrams. Symbol Description Signal, Voltage (single pole) Current (2-pole, 4-pole) - C - - C -...

  • Page 10: Typical Connection Schematic

    2. A PPLICATION Typical Connection Schematic ITS - 4610PTB04H b-side a-side...

  • Page 11: Installation

    3 Installation Panel Cutouts, Drilling Plans and Mounting The cutout for the ITS Test Block must be done using the cutout plan for the correct size ITS, shown below. The thickness of the panel sheet must not exceed 3 millimeters (0.118 inches).
  • Page 12 3. I NSTALLATION 10-pole Models 0.157in 0.157in 117.5mm 4.626in 14-pole Models 0,157in 0,157in 163,5mm 6,437in 20-pole Models 0,157in 0,157in 232,5mm 9,154in...

  • Page 13: Wiring

    Wiring Wiring Electrical connection terminals are located on the top and bottom of the back side of the ITS Test Block. The connection terminals accept ring cable lugs and spade cable lugs. Use the included special phillips cross recessed pan head screws (UNC thread). The screws are magnetic and can be mounted with power screwdrivers (fastening torque 1.2 Nm).
  • Page 14 3. I NSTALLATION ITS functionality requires that the B-SIDE (device side) of the test block must be connected with the device to be tested (e.g. protective relay), and the A-SIDE (system side) must be connected to the electrical system (e.g. CTs, PTs and breakers). Following figures represent the top, back and bottom side labeling of a typical ITS Test Block.
  • Page 15 Wiring 10-pole Models 10 9 14-pole Models 14 13 12 11 10 9...
  • Page 16 3. I NSTALLATION 20-pole Models 20 19 18 17 16 15 14 13 12 11 10 9...

  • Page 17: Operation

    4 Operation Handling of STP Test Plugs and test probes (smaller plugs for individual circuits) should be done using only the handle and/or insulated plastic parts, since the fingers may be connected to live equipment either via the test block or test equipment. Store the STP Test Plugs and test probes carefully in order to avoid damage to the metallic test fingers.
  • Page 18 4. O PERATION 5. Once you are ready to resume normal operation, disconnect the cables from the STP Test Plug or test probe. 6. Finally, remove the STP Test Plug or test probe in a single, even and continuous movement. 7.

  • Page 19: Technical Specifications

    5 Technical Specifications Electrical Current Withstand 30 A continuously 500 A for 1 second Maximum voltage 600 V Contact resistance Dielectric Withstand 3.0 kV RMS for 1 minute between adjacent contact pairs and between any contact pair and other metal parts 2.0 kV RMS for 1 minute between open con- tacts when test plug is inserted Voltage Impulse...

  • Page 20: Mechanical

    5. T ECHNICAL PECIFICATIONS Mechanical # of poles ITS Weight (kg) 0,49 0,67 0,91 1,26 (lbs) 1,08 1,48 2,01 2,78 STP Weight (kg) 0,33 0,46 0,65 0,93 (without Handle) (lbs) 0,73 1,01 1,43 2,05 STP Weight (kg) 0,54 0,69 0,90 1,21 (with Handle) (lbs)
  • Page 21 Dimensional Drawings 14-pole Models 179mm 7.047in 11 12 13 Exp14 163mm 2.5mm 57.5mm 6.417in 0.098in 2.264in 20-pole Models 248mm 9.764in 11 12 13 14 15 16 17 18 19 Exp20 232mm 2.5mm 57.5mm 9.134in 0.098in 2.264in...

  • Page 23: Accessories

    6 Accessories Cases for STP Test Plugs Rugged case for STP Test Plugs and test probes. Description Order Code Case for STP Test Plug with handle CSTP1 (HSB) Case for STP Test Plug without CSTP2 handle and test probes Individual Test Probes These test probes will fit all ITS Test Blocks, regardless of configuration.

  • Page 24: Universal Test Probes Set

    6. A CCESSORIES Universal Test Probes Set Set of individual test probes in a rugged case. Two configurations are available: “Small” Set 2-pole current probes (for single currents and return) 4-pole current probes (for three currents and common return) single pole probes (for voltages, trips and signals) “Large”...

  • Page 25: Dust Covers For Its Test Blocks

    Cases for STP Test Plugs Dust Covers for ITS Test Blocks ITS dust covers are attached via two knurled screws (M4). If dust ONTROL covers will be used, two threaded holes (M4) needs to be cut in the panel at the po- sitions shown on the panel cutout diagram (compare the Installation section of this document).

  • Page 27: Spare Parts

    7 Spare Parts Fitting Screws M4x10 button head screws with hexagon socket (2.5mm) to fix the ITS Test Block in the panel cutout. Description Order Code M4x10 button head screw 10pcs. SCR401 Connection Screws 8-32 UNC x 3/8” phillips cross recessed pan head screws for connection terminals. Description Order Code 8-32 UNC x 3/8”...
  • Page 29 8 Ordering Information Part Numbers for ITS Test Block (4600-Series) I T S 4 6 7 pole 10 pole 14 pole 20 pole Standard configurations Ten-pole configurations Additional configurations Configuration Number (1 to 27)
  • Page 30 ONTROL following pages. Should your application require a configuration that is not listed below, please use our on-line configuration tool at www.secucontrol.com. Alternatively, you may contact at any of the addresses listed on the rear cover of this manual. ONTROL...
  • Page 31 Configuration Selection Chart Config Label Description AB 01 H AB 01 H Config Label Description AB 02 H V V V V V V V AB 02 H Config Label Description AB 03 H AB 03 H Config Label Description V V V AB 04 H AB 04 H...
  • Page 32 8. O RDERING NFORMATION Config Label Description TB 03 H TB 03 H Config Label Description V V V V TB 04 H TB 04 H Config Label Description V V V TB 05 H TB 05 H Config Label Description V V V TB 06 H TB 06 H...
  • Page 33 Configuration Selection Chart Config Label Description TB 09 H TB 09 H Config Label Description V V V V V V TB 10 H TB 10 H 14-pole Models Config Label Description V V V V SB 02 H SB 02 H Config Label Description SB 03 H...
  • Page 34 8. O RDERING NFORMATION Config Label Description V V V V V V SB 06 H SB 06 H Config Label Description SB 07 H SB 07 H Config Label Description SB 08 H SB 08 H Config Label Description AB 05 H AB 05 H Config...
  • Page 35 Configuration Selection Chart 20-pole Models Config Label Description V V V V V V V V SB 09 H SB 09 H Config Label Description V V V V V V V V SB 10 H SB 10 H Label Description Config V V V V SB 11 H...
  • Page 36 8. O RDERING NFORMATION Config Label Description V V V V SB 15 H SB 15 H Config Label Description V V V V SB 16 H SB 16 H Config Label Description V V V V V V V V SB 17 H SB 17 H Config...
  • Page 37 Configuration Selection Chart Config Label Description V V V V SB 21 H SB 21 H Config Label Description V V V V SB 22 H SB 22 H Config Label Description SB 23 H SB 23 H Config Label Description SB 24 H SB 24 H Config...
  • Page 38 Config Label Description V V V V SB 27 H SB 27 H Config Label Description AB 08 H V V V V V V V V V V V V V V V V V V V V AB 08 H Config Label Description AB 09 H...
