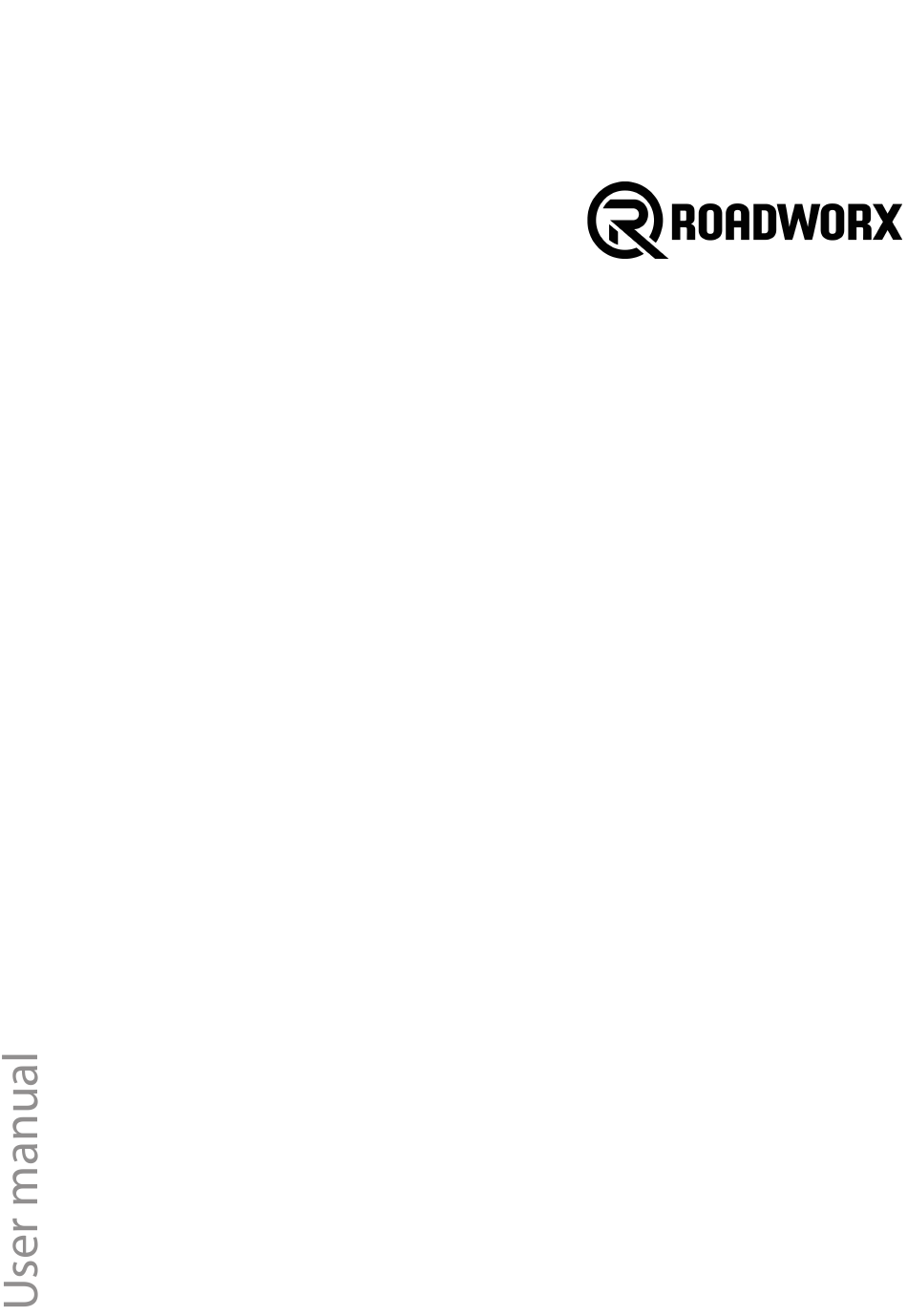

- Page 1 Multi Electric Stand electric height-adjustable stand...
- Page 2 Musikhaus Thomann Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 29.09.2020, ID: 491963...
-
Page 3: Table Of Contents
General information......................5 1.1 Further information......................5 1.2 Notational conventions....................5 1.3 Symbols and signal words................... 6 Safety instructions......................... 7 Features............................ 10 Assembly..........................11 Operating elements......................19 Operating..........................20 Technical specifications....................21 Protecting the environment................... 22 Multi Electric Stand electric height-adjustable stand... - Page 4 Multi Electric Stand electric height-adjustable stand...
-
Page 5: General Information
The letterings for connectors and controls are marked by square brackets and italics. Examples: [VOLUME] control, [Mono] button. Displays Texts and values displayed on the device are marked by quotation marks and italics. Examples: ‘24ch’ , ‘OFF’ . Multi Electric Stand electric height-adjustable stand... -
Page 6: Symbols And Signal Words
This combination of symbol and signal word indicates a possible dangerous situation that can result in mate‐ rial and environmental damage if it is not avoided. Warning signs Type of danger Warning – high-voltage. Warning – danger zone. Multi Electric Stand electric height-adjustable stand... -
Page 7: Safety Instructions
This device may be used only by persons with sufficient physical, sensorial, and intel‐ lectual abilities and having corresponding knowledge and experience. Other persons may use this device only if they are supervised or instructed by a person who is responsible for their safety. Multi Electric Stand electric height-adjustable stand... - Page 8 Never exceed the maximum load capacity specified for the stand. CAUTION! Danger of tipping on unsuitable ground If placed on soft or uneven ground, the stand may overturn and cause injuries and property damage. Place the stand on flat and solid surfaces only. Multi Electric Stand electric height-adjustable stand...
- Page 9 PVC floor and after some time cause permanent dark stains. In case of doubt, do not put the rubber feet directly on the floor, but use felt-pad floor protectors or a carpet. Multi Electric Stand electric height-adjustable stand...
-
Page 10: Features
Electric height-adjustable stand for keyboards, synthesizers, stage pianos, mixers, studio equipment, etc. Steplessly height-adjustable from 61 cm up to 126 cm Four heights freely storable Adjustable feet to compensate for floor unevenness Many adding-on accessories (available separately) Maximum load capacity: 150 kg Multi Electric Stand electric height-adjustable stand... -
Page 11: Assembly
2 × Allen key Set up the stand near a power wall outlet. Proceed according to the illustrations and only use the supplied screws. Using other screws could result in a reduced stability of the stand. Multi Electric Stand electric height-adjustable stand... - Page 12 Allen screws M6×25 (5) to the tube (6) and to the standing column (7) using the Allen key (20). Attach the tube and the standing column on the other side following the same procedure. Multi Electric Stand electric height-adjustable stand...
- Page 13 Attach the motor holder (8) with four Allen screws M6×10 (9) to both tubes (6) using the Allen key (20). Attach two adhesive cable ties (10) in the illustrated position to properly install the cable of the control panel. Multi Electric Stand electric height-adjustable stand...
- Page 14 Slide the motor (11) in the holder (8) and connect the cables of the standing columns (12) and the cable of the control panel (13) to the motor. Attach the feet (14) with four Allen screws M6×10 each (9) to the standing col‐ umns (7). Multi Electric Stand electric height-adjustable stand...
- Page 15 (15). Connect the power cable (15) to the motor (11). Ensure that the power cable is not installed too tight in the cable ties. The cable should be able to move while adjusting the height. Multi Electric Stand electric height-adjustable stand...
- Page 16 Attach the crossbars (16) at the desired position to both tubes (6) with two Allen screws M6×40 each (17) using the Allen key (20). Attach two adhesive foam pads (18) to each crossbar (16) at the desired posi‐ tions. Multi Electric Stand electric height-adjustable stand...
- Page 17 3/8” cylinder head screw each (not included in the scope of delivery) using the Allen key (20). Align the control panel (1) as desired and tighten the slide screws (3) and the round nuts (4). Multi Electric Stand electric height-adjustable stand...
- Page 18 Assembly Align the adjustable feet to compensate for the floor unevenness. The assembled stand should now look like the following illustration: Multi Electric Stand electric height-adjustable stand...
-
Page 19: Operating Elements
Control panel 1 Display 2 [1] | [2] | [3] | [4] Number buttons for storing and selecting a set height 3 [S] Buttons for storing a set height Buttons for setting the height Multi Electric Stand electric height-adjustable stand... -
Page 20: Operating
Press one of the buttons [1], [2], [3] or [4] at any time to move the stand to the stored height. ð The motor moves the stand automatically in the stored position. Multi Electric Stand electric height-adjustable stand... -
Page 21: Technical Specifications
Power consumption 200 W Supply voltage 100 – 240 V 50/60 Hz Dimensions (W × H × D) 1120 mm × 610 mm – 1260 mm × 550 mm Weight 22 kg Colour Black Multi Electric Stand electric height-adjustable stand... -
Page 22: Protecting The Environment
Dispose of this device through an approved waste disposal firm or through your local waste facility. When discarding the device, comply with the rules and regulations that apply in your country. If in doubt, consult your local waste disposal facility. Multi Electric Stand electric height-adjustable stand... - Page 24 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
