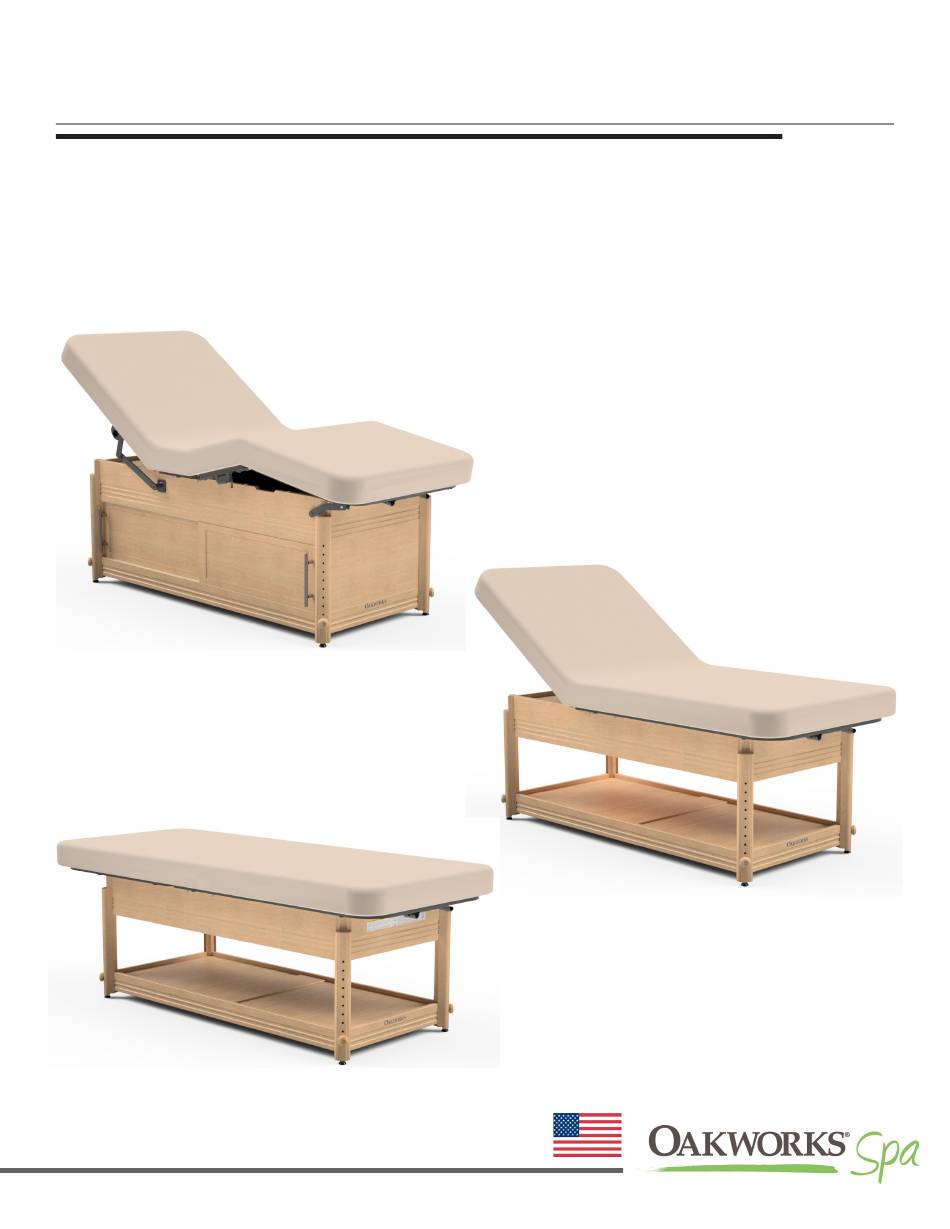

- Page 1 USER MANUAL OAKWORKS ® Clinician Adjustable 4-Section Lift-Assist Salon Top Shown with optional Storage Cabinet 2-Section Lift-Assist Backrest Top 1-Section Flat Top made in the with US & imported www.OAKWORKS.com · 717.235.6807...
- Page 2 © Copyright 2020 OAKWORKS , Inc. ® Notice The information contained within this document is subject to change without notice and should not be construed as a commitment by OAKWORKS , Inc. ® OAKWORKS , Inc. encourages ® requests for technical Printed in U.S.A.
-
Page 3: Table Of Contents
TABLE OF CONTENTS Product Use Description......................1 Important Safety Instructions Symbol Identification ..................... 1 Safety Instructions ......................1 Product Description & Photo 4-Section Lift-Assist Salon .................... 2 2-Section Lift-Assist Backrest ..................3 1-Section Flat Top ......................4 Installation Table Assembly ......................5-7 Directions for Use Lift-Assist Backrest Adjustment .................. -
Page 4: Product Use Description
PRODUCT USE DESCRIPTION / IMPORTANT SAFETY INSTRUCTIONS PRODUCT USE DESCRIPTION The Oakworks Clinician Adjustable offers a variety of positioning capabilities for massage therapists and spa professionals of all specialties. On these multifunctional professional tables the practitioner can perform numerous protocols with ease and comfort. The Clinician Adjustable is especially effective when professional protocols require specific positioning for the client. -
Page 5: Product Description & Photo
PRODUCT DESCRIPTION Clinician Adjustable 4-Section Lift-Assist Salon Shown with optional Storage Cabinet w/ Sliding Doors STANDARD SPECIFICATIONS OPTIONS Motion 1 Adjustable 26”-37.5” Height Range Wood Finishes Motion 2 Manual 0-80º Backrest Sliding Door Storage Cabinet ACCESSORIES Motion 3 Manual 0-30º Foot Rest Table Capacity 500 lbs. -
Page 6: 2-Section Lift-Assist Backrest
PRODUCT DESCRIPTION Clinician Adjustable 2-Section Lift-Assist Backrest STANDARD SPECIFICATIONS OPTIONS Motion 1 Adjustable 26”-37.5” Height Range Wood Finishes Motion 2 Manual 0-80º Backrest Sliding Door Storage Cabinet ACCESSORIES Table Capacity 500 lbs. (227 kg.) (client and accessories) Widths 29” (74 cm.), 31” (79 cm.), or 33” (84 cm.) QuickLock Face Rest Length 73”... -
Page 7: 1-Section Flat Top
PRODUCT DESCRIPTION Clinician Adjustable 1-Section Flat Top STANDARD SPECIFICATIONS OPTIONS Motion 1 Adjustable 26”-37.5” Height Range Wood Finishes Table Capacity 500 lbs. (227 kg.) (client and accessories) Sliding Door Storage Cabinet ACCESSORIES Widths 29” (74 cm.), 31” (79 cm.), or 33” (84 cm.) Length 73”... -
Page 8: Installation
INSTALLATION TABLE ASSEMBLY STEP 1 Place the table top upside down on the floor. STEP 2 Each leg has a number by the top bolt that corresponds with a number on the inside corners of the table top. (Excluding non-cabinet versions of the Flat top and Back Rest top tables. These legs are universal.) Pick any leg and match the number. - Page 9 INSTALLATION STEP 4 Find the leg for the opposite corner (match the number). Lift the shelf and insert the 2 leg bolts through the 2 metal corner brackets. Place a flat washer and nut on each bolt and turn the nut into position with the wrench, but do not completely tighten.
- Page 10 INSTALLATION Install end panel - Place correct end panel against previously mounted leg (locate end of panel between pins and leg flange). Hold the leg and insert the 2 leg bolts through the 2 metal corner brackets. You may need to wiggle leg and maybe tap lightly into the final position.
-
Page 11: Directions For Use
DIRECTIONS FOR USE LIFT-ASSIST BACKREST ADJUSTMENT CAUTION Do not sit on the backrest section. TO RAISE THE BACKREST TO LOWER THE BACKREST Raise the backrest by pressing the lever Press the lever under the head section and under the head section and lifting up to push the backrest down. -
Page 12: Moving The Table
DIRECTIONS FOR USE MOVING THE TABLE The table weighs as much as 115 lbs. (52 kg.) Never lift the table by grasping the table top. You CAUTION could damage the table. Two people are required to move the table safely. Do not use the table to transport a client. -
Page 13: Removing Top Pad
DIRECTIONS FOR USE R E M O V I N G T O P P A D The top pad has been designed to be easily removable and replaceable with no tools needed. TO REMOVE THE TOP PAD: The top pad is attached to the platform with 8 thumb screws located below the platform as shown. Thumb Screw Locations (4 per side) Unscrew the thumb screw clockwise until the thumb screw is completely Lift top pad off the platform. -
Page 14: Quicklock Face Rest (Accessory Option)
DIRECTIONS FOR USE QuickLock FACE REST: (ACCESSORY OPTION) • QuickLock Face Rest Weight Limit - 25 lbs (11.3 kg) CAUTION • Do not put excessive weight or pressure on the Face Rest. • Excessive pressure can cause premature failure of the Face Rest. Double articulating action provides nearly limitless positioning options with the QuickLock Face Rest. -
Page 15: Adjustable Side Arm Rests (Accessory Option - Salon Only)
DIRECTIONS OF USE ADJUSTABLE SIDE ARM RESTS (ACCESSORY OPTION - SALON ONLY) • Do not use the arm rest for client support during the mounting or dismounting of the chair. CAUTION • The arm rest is not designed to support the client’s weight. TO INSTALL THE ARM RESTS: The Arm Rests adjust automatically as the back rest moves to remain parallel to the floor. -
Page 16: Boiance Shelf Support (Accessory Option)
DIRECTIONS OF USE BOIANCE SHELF SUPPORT: (ACCESSORY OPTION) • Boiance Shelf Support Weight Limit - 25 lbs (11.3 kg) CAUTION • Do not put excessive weight or pressure on the Boiance Shelf Support. • Excessive pressure can cause premature failure of Boiance Shelf Support. USING THE BOIANCE SHELF SUPPORT: The shelf and bracket used together allow you to create the perfect place for clients’... -
Page 17: Cleaning & Disinfection
CLEANING & DISINFECTION RECOMMENDED CLEANERS/DISINFECTANTS Reference the Recommended Cleaners and Disinfectant list (MMINML0008-EN) that came with the table. This information can also be found at www.oakworksmed.com under product information. All cleaners and disinfectants have the ability to degrade the upholstery to some extent. However, fol- lowing the recommended cleaner and disinfectant list and cleaning process will provided the best care for your table and support a long product life. -
Page 18: Inspections & Maintenance
INSPECTIONS / WARRANTY / MODEL NUMBER & SERIAL NUMBER INSPECTIONS RECOMMENDED REGULAR INSPECTIONS (monthly or local standard) • Visually inspect components for obvious damage that could cause problems during operation. RECOMMENDED PERIODIC INSPECTIONS (yearly or local standard) • Visually inspect components for obvious damage that could cause problems during operation. •... -
Page 19: Specifications
SPECIFICATIONS ENVIRONMENTAL CONDITIONS Conditions Temperature Humidity Atmospheric Pressure Normal Use 50° (10°C) to 104° (40°C) 20% to 60% RH 98 to 105 kPa Storage & Transport -20° (-29°C) to 135° (57°C) 20% to 95% RH 98 to 105 kPa CABINET DIMENSIONS Total Inside Dimensions: 53”... -
Page 20: Contact Information
USER MANUAL OAKWORKS ® Clinician Adjustable CONTACT INFORMATION: Oakworks Inc. ® 923 East Wellspring Road New Freedom, PA 17349 Phone: 717.235.6807 FAX: 717.235.6798 www.oakworks.com Original Instructions Manual Part Number SPA-RA-PM-151 Revision level: 2 Revision Date: 10/12/2020 made in the with US & imported English, Printed in USA...
