- Page 1 USER MANUAL OAKWORKS ® ProLuxe Series www.oakworks.com · 717.235.6807...
- Page 2 © Copyright 2021 OAKWORKS , Inc. ® Notice The information contained within this document is subject to change without notice and should not be construed as a commitment by OAKWORKS , Inc. ® OAKWORKS , Inc. encourages ® requests for technical specifica- Printed in U.S.A.
-
Page 3: Table Of Contents
TABLE OF CONTENTS Product Use Description ..................... 1 Important Safety Instructions Symbol Identification ................... 1 Safety Instructions ................... 2-3 Installation Grounding ......................4 Product Description & Photo ProLuxe Electric Salon Top ................. 5 Control Operation - ProLuxe Electric Salon Top ..........5 ProLuxe Lift Assist Salon Top ................ -
Page 4: Product Use Description
P R O D U C T U S E D E S C R I P T I O N Oakworks ProLuxe Series offers a variety of positioning capabilities for massage therapists and spa professionals of all specialties. On these multifunctional professional tables, the practitioner can per- form numerous protocols with ease and comfort. - Page 5 IMPORTANT SAFETY INSTRUCTIONS I M P O R T A N T S A F E T Y I N S T R U C T I O N S DANGER READ AND SAVE THESE INSTRUCTIONS To reduce risk of electric shock: 1.
- Page 6 IMPORTANT SAFETY INSTRUCTIONS ENTRAPMENT • Risk of Injury - The picture below indicate areas of entrapment that can occur when operating this equip- ment. It is the responsibility of the operator to ensure that bystanders are not in or around these areas dur- ing operation.
-
Page 7: Installation
INSTALLATION The Tables come completely assembled and ready to use. Plug the cord into a functioning outlet that is rated for the table. (See Grounding below) Arrange the power cord and control cords so that they will not create a tripping hazard and where the controls are located to your liking and are conveniently accessible. -
Page 8: Product Description & Photo

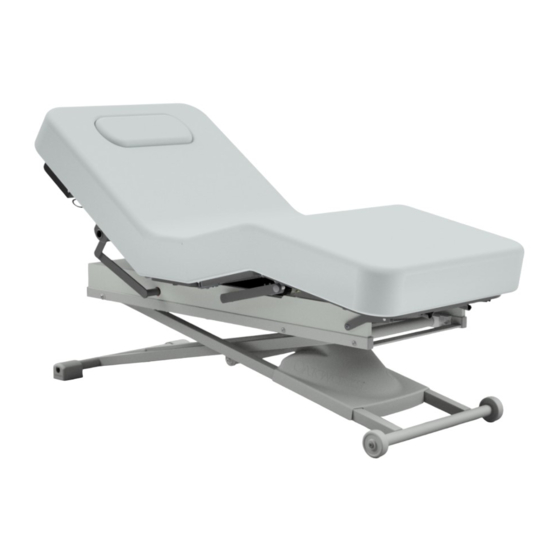

PRODUCT DESCRIPTION ProLuxe Electric Salon Top STANDARD SPECIFICATIONS OPTIONS Motion 1* Powered 22”-40” (57-102 cm.) Height Range Adjustable Breast Comfort (ABC) System Motion 2 Powered 0-70º Backrest Dual Locking Casters Motion 3 Powered 0-30º Foot Rest Cabi/ Storage Shelves Foot Control All powered motions Integrated Heated Top ACCESSORIES... - Page 9 DIRECTIONS FOR USE C O N T R O L O P E R A T I O N S - E L E C T R I C S A L O N T A B L E Do not sit on the backrest or leg rest sections. Be sure the self-locking molded rubber feet are flat side CAUTION down to ensure safety and stability.
-
Page 10: Proluxe Lift Assist Salon Top
PRODUCT DESCRIPTION ProLuxe Lift-Assist Salon Top STANDARD SPECIFICATIONS OPTIONS Motion 1* Powered 22”-40” (57-102 cm.) Height Range Adjustable Breast Comfort (ABC) System Motion 2 Manual 0-80º Backrest Dual Locking Casters Motion 3 Manual 0-30º Foot Rest Cabi/ Storage Shelves Foot Control Height Range Integrated Heated Top ACCESSORIES... -
Page 11: Controls Operation - Proluxe Lift Assist Salon Top
DIRECTIONS FOR USE C O N T R O L O P E R A T I O N S - L I F T-A S S I S T S A L O N T A B L E S CAUTION Do not sit on the backrest or footrest sections. -
Page 12: Proluxe Lift Assist Backrest Top
PRODUCT DESCRIPTION ProLuxe Lift-Assist Backrest Top STANDARD SPECIFICATIONS OPTIONS Motion 1* Powered 22”-40” (57-102 cm.) Height Range Adjustable Breast Comfort (ABC) System Motion 2 Manual 0-80º Backrest Dual Locking Casters Foot Control Height Range Cabi/ Storage Shelves Table Voltage Options 120V/60Hz - 230V/50Hz Integrated Heated Top ACCESSORIES... -
Page 13: Controls Operation - Proluxe Lift Assist Backrest Top
DIRECTIONS FOR USE C O N T R O L O P E R A T I O N S - L I F T-A S S I S T B A C K R E S T T A B L E S CAUTION Do not sit on the backrest section. -
Page 14: Proluxe Flat Top
PRODUCT DESCRIPTION ProLuxe Flat Top STANDARD SPECIFICATIONS OPTIONS Motion 1* Powered 19”-36.5” (48-93 cm.) Height Range Adjustable Breast Comfort (ABC) System Foot Control Height Range Dual Locking Casters Table Voltage Options 120V/60Hz - 230V/50Hz Cabi/ Storage Shelves Table Capacity 550 lbs. (250 kg.) (client and accessories) Integrated Heated Top ACCESSORIES Widths... -
Page 15: Controls Operation - Proluxe Flat Top
DIRECTIONS FOR USE C O N T R O L O P E R A T I O N S - F L A T T O P T A B L E S CAUTION Be sure the self-locking molded rubber feet are flat side down to ensure safety and stability. The ProLuxe Flat Top tables offer height positioning with electronic ease. -
Page 16: Directions For Use
DIRECTIONS FOR USE LIFT-ASSIST BACKREST ADJUSTMENT CAUTION Do not sit on the backrest section. TO RAISE THE BACKREST TO LOWER THE BACKREST: Raise the back rest by pressing the lever Press the lever under the head section and under the head section and lifting up to push the back rest down. -
Page 17: Moving The Table
DIRECTIONS FOR USE M O V I N G T H E T A B L E CAUTION Before moving any of the tables, disconnect the power cord from the power outlet. The table weighs as much as 200 lbs. (91 kg.) Use extreme caution when lifting the table to move it. -
Page 18: Hot Towel Cabi & Storage Shelf
DIRECTIONS FOR USE H O T T O W E L C A B I S H E L F & S T O R A G E S H E L F CAUTION • The Anti-Tip Strap must be installed when using a Hot Towel Cabi. •... -
Page 19: Removing Top Pad
DIRECTIONS FOR USE R E M O V I N G T O P P A D The top pad has been designed to be easily removable and replaceable with no tools needed. IF THE TABLE HAS A HEATED TOP: Unplug the table from the wall outlet and disconnect the wires circled from the control box located under the platform. -
Page 20: Adjustable Breast Comfort (Abc) System (Option)
DIRECTIONS FOR USE ADJUSTABLE BREAST COMFORT (ABC) SYSTEM (OPTION) • ABC System Weight Limit - 100 lbs. (45 kg.) Do not sit on the ABC System. CAUTION • Do not place foreign objects into the ABC System. Only use as intended. •... -
Page 21: Integrated Heated Top (Option)
DIRECTIONS FOR USE INTEGRATED HEATED TOP (OPTION) USING THE INTEGRATED HEATED TOP: The table comes with the option for a fully integrated dual zone heated top pad. Simply press the heating indicator(s) located on the right side rail of the table to the desired heat level. The heat can reach up to 40°C (105°F). -
Page 22: Quicklock Face Rest (Accessory Option)
DIRECTIONS FOR USE QuickLock FACE REST: (ACCESSORY OPTION) • QuickLock Face Rest Weight Limit - 25 lbs (11.3 kg) CAUTION • Do not put excessive weight or pressure on the Face Rest. • Excessive pressure can cause premature failure of the Face Rest. Double articulating action provides nearly limitless positioning options with the QuickLock Face Rest. -
Page 23: Adjustable Side Arm Rests (Accessory Option)
DIRECTIONS FOR USE ADJUSTABLE SIDE ARM RESTS (ACCESSORY OPTION - SALON ONLY) • Do not use the arm rest for client support during the mounting or dismounting CAUTION of the chair. • The arm rest is not designed to support the client’s weight. TO INSTALL THE ARM RESTS: The Arm Rests adjust automatically as the back rest moves to remain parallel to the floor. -
Page 24: Boiance Shelf Support (Accessory Option)
DIRECTIONS FOR USE BOIANCE SHELF SUPPORT: (ACCESSORY OPTION) • Boiance Shelf Support Weight Limit - 25 lbs (11.3 kg) CAUTION • Do not put excessive weight or pressure on the Boiance Shelf Support. • Excessive pressure can cause premature failure of Boiance Shelf Support. USING THE BOIANCE SHELF SUPPORT: The shelf and bracket used together allow you to create the perfect place for clients’... -
Page 25: Bluetooth Speaker (Accessory Option)
DIRECTIONS FOR USE BLUETOOTH SPEAKER (ACCESSORY OPTION) BLUETOOTH SPEAKER ATTACHMENT: Located on the Face Rest Bracket on the underside of the head end of the table. Position Bluetooth Speaker with the magnetic attachment facing up. Plug the cord into the side of the speaker and attach it to the bracket. CONNECTING TO BLUETOOTH SPEAKER: Turn Bluetooth Speaker on by pressing the power button. -
Page 26: Cleaning & Disinfection
CLEANING & DISINFECTION RECOMMENDED CLEANERS/DISINFECTANTS DANGER To reduce the risk of electric shock: - Always unplug this furnishing from the electrical outlet before cleaning. Reference the Recommended Cleaners and Disinfectant list (MMINML0008-EN) that came with the table. This information can also be found at www.shop.spatables.com under product information. All cleaners and disinfectants have the ability to degrade the upholstery to some extent. -
Page 27: Inspections & Maintenance
INSPECTIONS / WARRANTY I N S P E C T I O N S RECOMMENDED REGULAR INSPECTIONS (monthly or local standard) • Check for damage to the power, hand control(s) and foot control(s) on all cables. • Visually inspect components for obvious damage that could cause problems during operation. •... -
Page 28: Model Number & Serial Number
MODEL NUMBER & SERIAL NUMBER M O D E L & S E R I A L N U M B E R The model number and serial number are located on the underside of the foot section. Serial Number Model Number 16796025 PXXA4EX1T410USXXXXXX Ser#:PXR563146 Proluxe Electric Salon w/ABC 1/T/4/10/US/XX/XX/XX... -
Page 29: Specifications
SPECIFICATIONS T A B L E D I M E N S I O N - E L E C T R I C S A L O N & L I F T A S S I S T T A B L E D I M E N S I O N - F L A T T O P CABI SHELF DIMENSIONS STORAGE SHELF DIMENSIONS... -
Page 30: Product Specifications
SPECIFICATIONS PRODUCT SPECIFICATIONS Table Weights: 151-200 lbs. (68-91 kg.) Lifting Capacity 550 lbs. (250 kg.) ENVIRONMENTAL CONDITIONS Conditions Temperature Humidity Atmospheric Pressure Normal Use 50° (10°C) to 104° (40°C) 20% to 60% RH 98 to 105 kPa Storage & Transport -20°... -
Page 31: Guidance And Manufacturer's Declaration - Electromagnetic Emissions
SPECIFICATIONS Guidance and manufacturer’s declaration - electromagnetic emissions The table is intended for use in the electromagnetic environment specified below. The customer or the user of the table should assure that it is used in such an environment. Emissions Test Compliance Electromagnetic environment - guidance The table uses RF energy only for its internal function. -
Page 32: Guidance And Manufacturer's Declaration - Electromagnetic Immunity
SPECIFICATIONS Guidance and manufacturer’s declaration - electromagnetic immunity The table is intended for use in the electromagnetic environment specified below. The customer or the user of the table should assure that it is used in such an environment. Electromagnetic Immunity Test IEC 60601 test level Compliance level Environment - guidance... - Page 33 SPECIFICATIONS Guidance and manufacturer’s declaration - electromagnetic immunity The table is intended for use in the electromagnetic environment specified below. The customer or the user of the table should assure that it is used in such an environment. Electromagnetic Immunity Test IEC 60601 test level Compliance level Environment - guidance...
- Page 34 THIS PAGE IS INTENTIONALLY LEFT BLANK...
- Page 35 THIS PAGE IS INTENTIONALLY LEFT BLANK...
-
Page 36: Contact Information
USER MANUAL OAKWORKS ® ProLuxe Series C O N T A C T I N F O R M A T I O N: Oakworks Inc. ® 923 East Wellspring Road New Freedom, PA 17349 Phone: 717.235.6807 FAX: 717.235.6798 www.oakworks.com 3034177 CONFORMS TO: ANSI/AAMI STD ES60601-1...
