Shoreline 4x4
Extreme Series Bullbar X-1
Fitting instructions for
Ford Ranger PX Mk II
Ford Ranger PX Mk II & MK3
Front TOW points only - Rated to 3.75T - NOT FOR SNATCHING
www.slx4x4.com.au
(08) 9444 2946
126 Hector St W - OSBORNE PARK W.A. 6017
126 Hector St W - OSBOURNE PARK W.A. 6017
Advertisement
Related Manuals for Shoreline 4x4 Extreme Series
Summary of Contents for Shoreline 4x4 Extreme Series

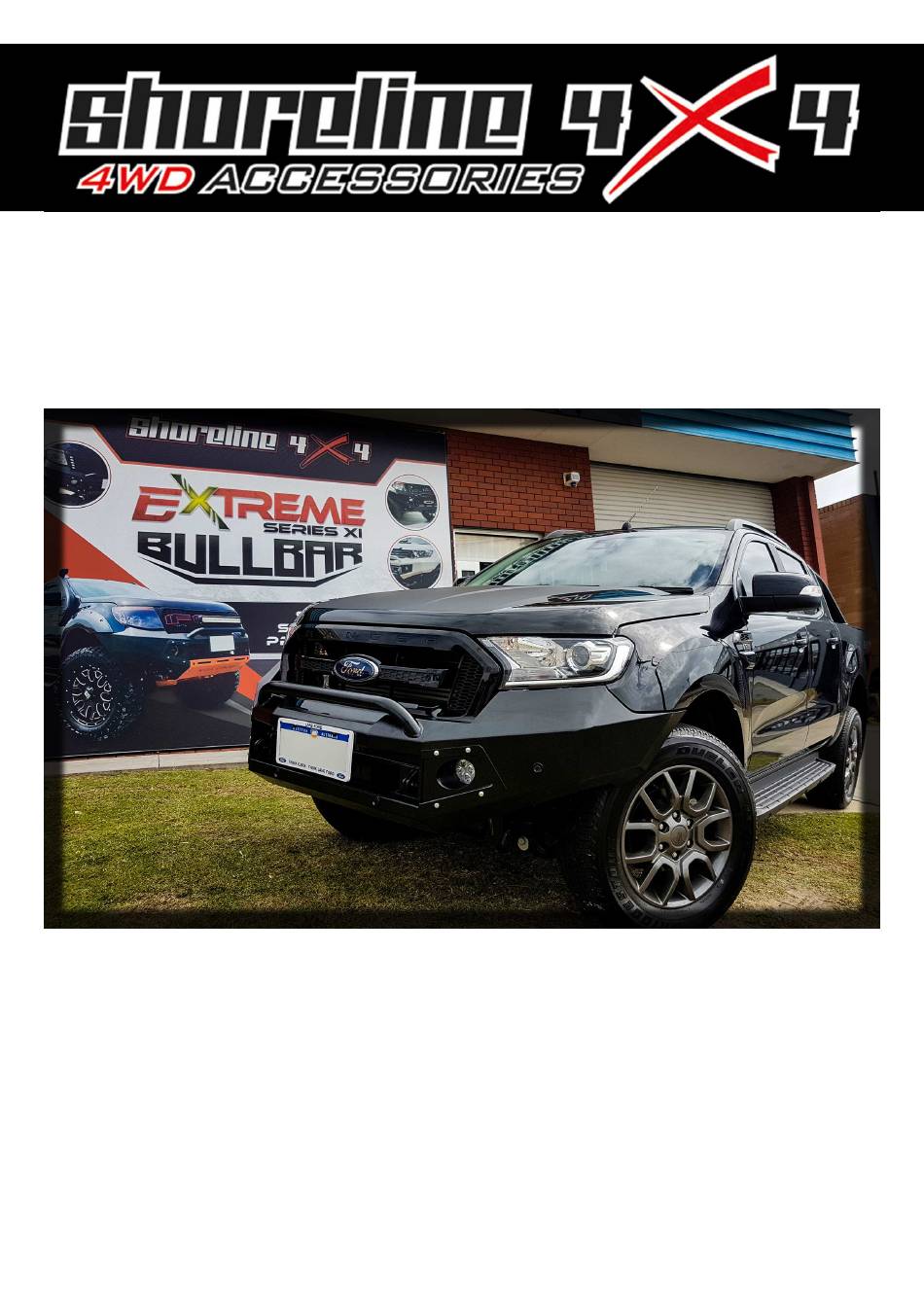

- Page 1 Shoreline 4x4 Extreme Series Bullbar X-1 Fitting instructions for Ford Ranger PX Mk II Ford Ranger PX Mk II & MK3 Front TOW points only - Rated to 3.75T - NOT FOR SNATCHING www.slx4x4.com.au (08) 9444 2946 126 Hector St W - OSBORNE PARK W.A. 6017...
- Page 2 1. Congratulations on purchasing your very own Shoreline 4x4 Extreme Series Bullbar. To start, clear an area around the front of your car and unwrap the bar. 2. With the bar unwrapped, unbolt the factory bash plate. 3. Unbolt the bumper from the front quarter panels and remove the clips holding the inner liner to the bumper.
- Page 3 5. Remove your license plate from the factory bumper. 6. Carefully remove the top grill plastic, pushing the plastic tags with a lat head screw driver as seen in the next image below. 7. *Plastic tag 8. Unbolt the top grill mount. www.slx4x4.com.au (08) 9444 2946 126 Hector St W - OSBOURNE PARK W.A.
- Page 4 9. Unbolt the lower grill mount, you will need a long extension and socket to reach this bolt. 10. Carefully remove the plastic push clips. These are hard to locate but are right behind the mesh section of the grill. 11.
- Page 5 13. Tear away the plastic on the crash bar and dispose. Remove the factory radar unit from the impact bar. 14. Unbolt and remove the factory crash bar. 15. Remove the metal L brackets that are visible with the air dam moved out the way.
- Page 6 17. Take care and pry away the metal antenna. 18. Unbolt the metal bracket that secures the inner wheel liner to the car. 19. Cut the cable ties holding the antenna wiring to the car ready to relocate. 20. Mount the antenna onto the air dam using the factory clip for the lower mount and drill a new hole to push in one of the clips spare from the bumper.
- Page 7 21. Seperate the bar from the bracket. 22. Now mount the bracket using the four factory bolts and eight supplied nuts and bolts. 23. Mark and trim the inner wheel guard. IF PX3 SEE LAST PAGE 24. Pry the radar unit from the bracket and unscrew the star head bolts.
- Page 8 25. Mount the radar unit to the bar using the supplied hardware. INSTALL PX3 AS SHOWN INSTALL PX3 AS SHOWN Make sure radar is installed correct way down. A BACK plate is also supplied which is to be installed back of the radar. 1 tab must be facing ground &...
- Page 9 29. Mount the grill back onto the car reusing the factory ittings. 30. With help, carefully mount the bar to the bracket using the supplied hardware. RECOMMENDED GAP IS 10-20MM. ADJUST TO SUIT USE PINCH WELD IF YOU PREFER NO GAP 31.
- Page 10 33. Fit the new bash plate over the bullbar and mount using the supplied nuts and bolts. 34. Wire in the fog lights, test and you’re ready to go! 35. PX3 TRIM TO SUIT AS SHOWN SECURE FLAPS TO METAL SUPPORT WITH CABLE TIES OR NUT/BOLT www.slx4x4.com.au (08) 9444 2946...
