Shoreline 4x4 Extreme Series Fitting Instructions Manual

For lc200 2015
Hide thumbs Also See for Extreme Series:
1
2
3
4
5
6
7

Advertisement

Table of Contents

4
Shoreline 4 x
xt
ri
1
es Bullbar
reme Se
-
X
E

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Extreme Series and is the answer not in the manual?

Questions and answers

Related Manuals for Shoreline 4x4 Extreme Series

Summary of Contents for Shoreline 4x4 Extreme Series

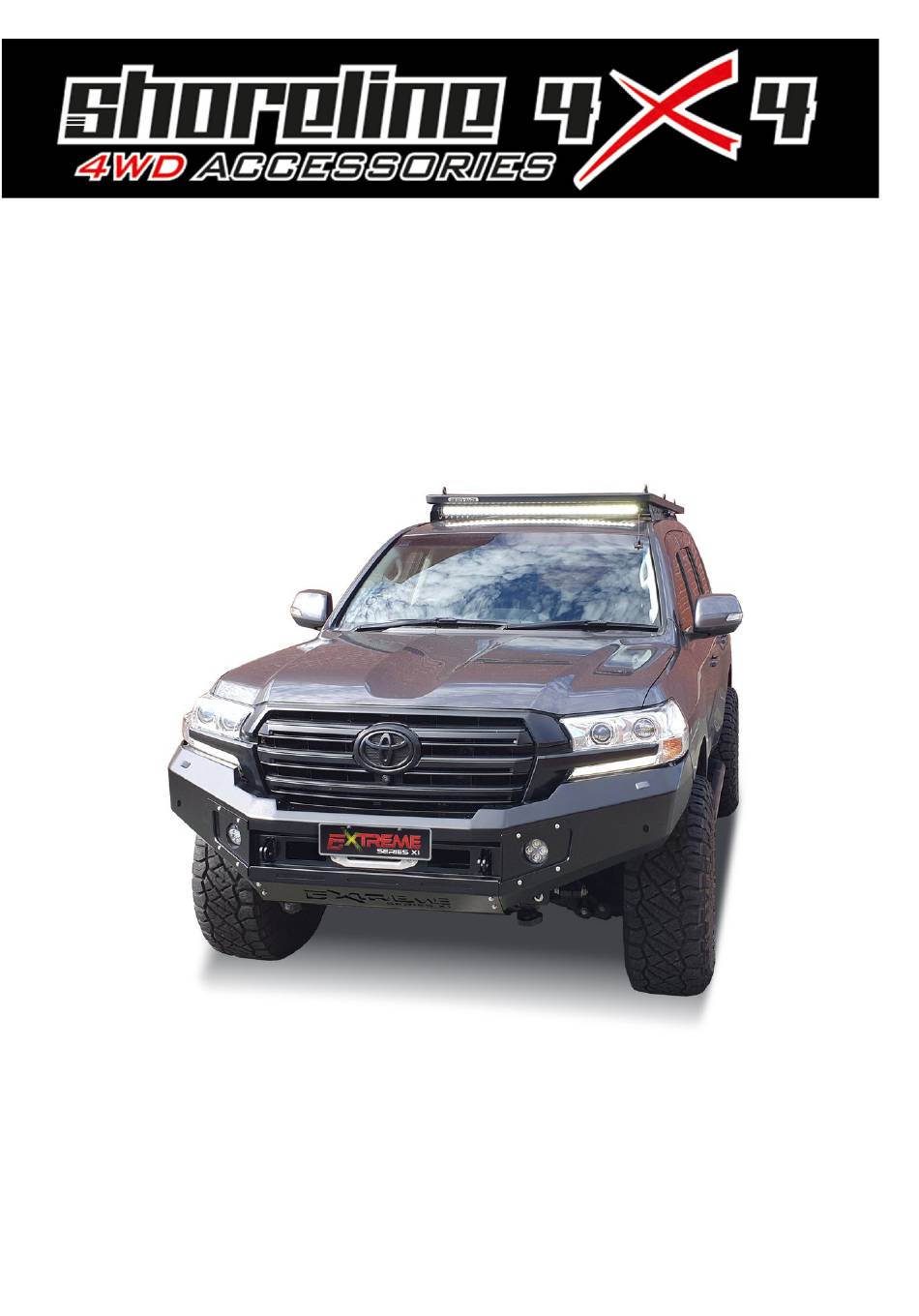

  • Page 1 Shoreline 4 x es Bullbar reme Se...
  • Page 2 Fitting instructions for LC200 2015 on Front TOW points only - Rated to 3.75T - NOT FOR SNATCHING www.slx4x4.com.au (08) 9444 2946 126 Hector St W - OSBORNE .A. 6017 A gap between the headlights must be maintained, the bar is adjustable to sit at many different positions, we have located bar forward of headlights to avoid any potential contact and have cutout indent around the corner plastic protrusion, you may wish to purchase rubber pinch weld from clark rubber to cover this gap...
  • Page 3 1. Congratulations on purchasing your very own Shoreline 4x4 Extreme Series Bulbar. o start, clear an ar ea a round the front of your car and unwrap the ba 2) Remove factory bumper completely including the grille off in 1 piece, you will later separate the grille from the bumper, you can find videos on youtube regarding removal.
  • Page 4 4) Fit mounting hardware, The spacer brackets first then the cradle. The spacer brackets can be tight but keep cradle loose incase you need to move left or right 5) if you are fitting a winch drill out the welded rivots and remove the reinforcement section. If drilled correctly it will just come out.
  • Page 5 7) Put the harness in place, You will cable tie the harness to the rib supports in the bulbar, small slots should exist in various points of the bulbar to slide a cable tie in, otherwise you can purchase adhesive retainers (not supplied) Just ensure your supplied LED fog lights have enough cable to reach the existing harness, the new LED spot lights may require you to connect upside down, EG flip connector upside down and plug into harness if LED not working.
  • Page 6 10) When fitting the bar, if you choose to use pinch weld now is the time install it as can not be installed once bar is on, You may also choose to use 10mm Wide and 5mm thick adhesive foam in 2 places. 1) You can put adhesive foam between the front of the fender and bar (Prevent rubbing if you go offroad) 2) On the inside of the qtr panel facing outwards also prevent rubbing as these inside metal sits very close to the outside of the bulbar fold.

This manual is also suitable for:

Bullbar x-1
