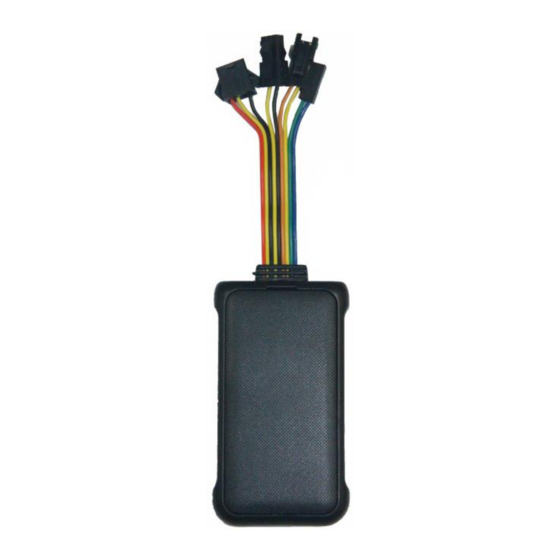

GPS Tracking Device
Notes:..................................................................................................................................................................... 1
1. Product Introduction.......................................................................................................................................2
2. Characteristics................................................................................................................................................. 3
2.1 Red LED (power/working status)........................................................................................................... 3
2.2 Blue LED(GPS status indicator)............................................................................................................. 3
2.3 Green LED（GSM status indicator）.................................................................................................... 3
2.4.Specifications.......................................................................................................................................... 4
2.5 Device outlet specification...................................................................................................................... 4
2.6 Device wiring diagram............................................................................................................................ 5
3. Method of installation..................................................................................................................................... 6
3.1. Preparation before installation............................................................................................................... 6
3.2 Installation............................................................................................................................................... 6
4. Web based tracking online activation............................................................................................................6
5. SMS Configuration..........................................................................................................................................7
6. Trouble shooting.............................................................................................................................................. 9
Copyright © 2016 ROPE INNOVATION CO., LTD. All rights reserved. Website:
ROPE INNOVATION CO., LTD.
Model NO.: M588GS
User Manual
Version ：Rope-E19111801
CONFIDENTIAL NO.：ROPE-15121802
1
www.myrope.cn
Advertisement
Table of Contents
Related Manuals for MYROPE M588GS
Summary of Contents for MYROPE M588GS
-
Page 1: Table Of Contents
ROPE INNOVATION CO., LTD. CONFIDENTIAL NO.：ROPE-15121802 GPS Tracking Device Model NO.: M588GS User Manual Version ：Rope-E19111801 Notes:..................................1 1. Product Introduction............................2 2. Characteristics..............................3 2.1 Red LED (power/working status)......................3 2.2 Blue LED(GPS status indicator)......................3 2.3 Green LED（GSM status indicator）....................3 2.4.Specifications............................ -
Page 2: Notes
When the device work unusually or cannot resume to normal even operated according to the instruction; When the device cannot work as usual after falling, throwing or breaking; When there is obvious damage in the device. Copyright © 2016 ROPE INNOVATION CO., LTD. All rights reserved. Website: www.myrope.cn... -
Page 3: Product Introduction
5) Resend data from signal dead zone; 6) SOS alarm; 7) Low power alarm; 8) Overspeed alarm; 9) Geo-fence alarm; 10) Parking alarm; 11) Idling alarm; 12) Tired driving alarm; 13) History playback; Copyright © 2016 ROPE INNOVATION CO., LTD. All rights reserved. Website: www.myrope.cn... -
Page 4: Specifications
UMTS1900/2100:24.0±2dBm Dynamic output range -15~-108d Receiving sensitivity -107dBm Maximum frequency error ±0.1ppm GPS specification Sensitivity Cold start: -145dBm Hot start: -156dBm Warm start: -145dBm Navigation: -160dBm Track: -162dBm Copyright © 2016 ROPE INNOVATION CO., LTD. All rights reserved. Website: www.myrope.cn... - Page 5 SOS alarm button Packing box 3pin power cable Velcro 2.3 List of cable definitions 2.4 Definition of the line of the oil quantity detection connector Color Meaning Blue Oil signal Copyright © 2016 ROPE INNOVATION CO., LTD. All rights reserved. Website: www.myrope.cn...
- Page 6 LED status Not bright：No power/device failure Normal flash （ 1 time/S） ： Connected to the server Red(Power Indicator) Slow flash（1 time/2S） ：In the network Slow flash：1time/200ms ,Data transmission Copyright © 2016 ROPE INNOVATION CO., LTD. All rights reserved. Website: www.myrope.cn...
-
Page 7: Device Wiring Diagram
Note: Power off before installing or removing the SIM card The SIM card should have GPRS credit Ensure the SIM card is able to send and receive SMS Copyright © 2016 ROPE INNOVATION CO., LTD. All rights reserved. Website: www.myrope.cn... -
Page 8: Installation
-shelter in the decorated board below the front windshield; -shelter around the front instrument panel (non-metallic material face); -in the decorated board below back windshield; Copyright © 2016 ROPE INNOVATION CO., LTD. All rights reserved. Website: www.myrope.cn... -
Page 9: Web Based Tracking Online Activation
4.4 Click Activate, please fill in the blanks marked with red *. You also can fill in other blanks to complete the device information. 4.5 Click Next Step and fill in the requested blanks. Copyright © 2016 ROPE INNOVATION CO., LTD. All rights reserved. Website: www.myrope.cn... - Page 10 Modify the device SMS authentication password C,*old code of the device*,*new code of the command device* E.g:Change the factory password to 654321, send “C,*123456*,*654321*” Device remote restart command R,*PASSWORD* Copyright © 2016 ROPE INNOVATION CO., LTD. All rights reserved. Website: www.myrope.cn...
-
Page 11: Trouble Shooting
SIM card support GPRS. d. check the IMEI number is correct or not If not reply: check the SMS command format, make sure it is correction. Copyright © 2016 ROPE INNOVATION CO., LTD. All rights reserved. Website: www.myrope.cn...
