GPS Tracking Device
Notes:..................................................................................................................................................................... 2
1. Product Introduction.......................................................................................................................................3
2. Characteristics................................................................................................................................................. 4
2.1 LED Status...............................................................................................................................................4
2.2.Specifications.......................................................................................................................................... 5
2.3 Device wiring diagram............................................................................................................................ 6
3. Method of installation..................................................................................................................................... 7
3.1. Preparation before installation............................................................................................................... 7
3.2 Installation............................................................................................................................................... 7
4. Web based tracking online activation............................................................................................................7
5. SMS Configuration..........................................................................................................................................8
6. Trouble shooting............................................................................................................................................ 12
7. Standard Accessories.....................................................................................................................................12
1
Copyright © 2017 ROPE INNOVATION CO., LTD. All rights reserved. Website:
ROPE INNOVATION CO., LTD.

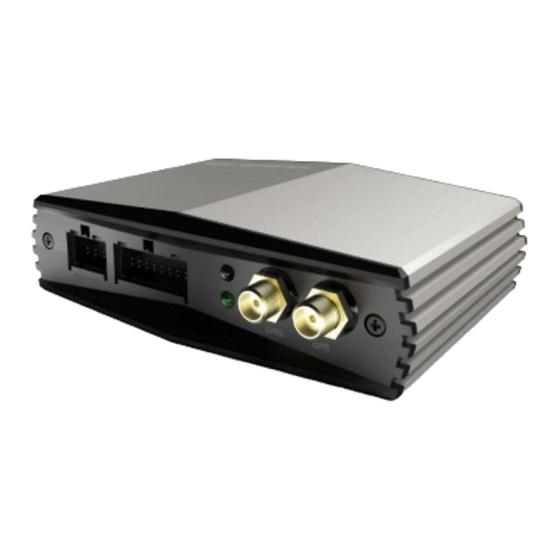

Model NO.: M528F
User Manual
Version ：Rope-E17021301
CONFIDENTIAL NO.：ROPE-15121802
www.ropetrack.com
Advertisement
Table of Contents
Related Manuals for MYROPE M528F
Summary of Contents for MYROPE M528F
-
Page 1: Table Of Contents
ROPE INNOVATION CO., LTD. CONFIDENTIAL NO.：ROPE-15121802 GPS Tracking Device Model NO.: M528F User Manual Version ：Rope-E17021301 Notes:..................................2 1. Product Introduction............................3 2. Characteristics..............................4 2.1 LED Status...............................4 2.2.Specifications............................5 2.3 Device wiring diagram..........................6 3. Method of installation............................. 7 3.1. Preparation before installation....................... 7 3.2 Installation............................... -
Page 2: Notes
ROPE INNOVATION CO., LTD. CONFIDENTIAL NO.：ROPE-15121802 Notes: Please mount the device steadily on the flat place before using; Please make sure the voltage value is right before connecting with battery, and placing the wires to where shouldn’t be trodden; ... -
Page 3: Product Introduction
ROPE INNOVATION CO., LTD. CONFIDENTIAL NO.：ROPE-15121802 1. Product Introduction GPS Tracking device mainly consists of two parts such as GPS module and GSM module. GPS module is for getting location data from satellite, and GSM module is for transferring data to server so that people can check the information via PC or mobile phone. -
Page 4: Characteristics
ROPE INNOVATION CO., LTD. CONFIDENTIAL NO.：ROPE-15121802 2. Characteristics 1) Metal cover; 2) External antenna; 3) Track by SMS or GPRS; 4) Real time tracking at intervals; 5) Resend data from signal dead zone; 6) Voice monitoring; 7) SOS alarm; 8) Low power alarm; 9) Over speed alarm;... -
Page 5: Specifications
ROPE INNOVATION CO., LTD. CONFIDENTIAL NO.：ROPE-15121802 2.2. Specifications Items Parameters GSM Module Quectel M50 GSM Frequency 850/900/1800/1900 MHZ LBS Positioning Accuracy 100-500m GSM Antenna External GPS Chipset U-blox 7020 GPS Sensitivity -159 dBm GPS Frequency L1, 1575.42 MHZ Channels 20 channels examine track GPS Positioning Accuracy 5-10m, 2D RMS GPS Antenna... -
Page 6: Device Wiring Diagram
ROPE INNOVATION CO., LTD. CONFIDENTIAL NO.：ROPE-15121802 2.3 Device wiring diagram Copyright © 2017 ROPE INNOVATION CO., LTD. All rights reserved. Website: www.ropetrack.com... -
Page 7: Method Of Installation
ROPE INNOVATION CO., LTD. CONFIDENTIAL NO.：ROPE-15121802 3. Method of installation 3.1. Preparation before installation 3.1.1 Open the packing box to check whether the type of device is correct and whether the accessories are included, or else please contact your distributor. 3.1.2 Choose SIM card: each device needs to insert a GSM SIM card. - Page 8 ROPE INNOVATION CO., LTD. CONFIDENTIAL NO.：ROPE-15121802 4.4 Click Activate, please fill in the blanks marked with red *. You also can fill in other blanks to complete the device information. 4.5 Click Next Step and fill in the requested blanks. 4.6 Click Next Step to fill in sim card APN information.
-
Page 9: Sms Configuration
ROPE INNOVATION CO., LTD. CONFIDENTIAL NO.：ROPE-15121802 4.7 Click Next Step, OVERSEE gives the configuration SMS to you. Please copy it and send it to the gps device, after you receive reply from the gps device, it should be online. 4.8 Click Finish--Tracking Map to see if the gps device is online or not. 5. - Page 10 ROPE INNOVATION CO., LTD. CONFIDENTIAL NO.：ROPE-15121802 Parameters Eg: param,123456 APN password, port, system number if the password is worng, it will reply: Get status failed. Remotely Restart Restart,password The device will restart after 1min after Eg: restart,123456 receiving this command, Recover Default ResetPwd Password will be recovered to default...
- Page 11 ROPE INNOVATION CO., LTD. CONFIDENTIAL NO.：ROPE-15121802 ss,cmnet,1,1,211.154.139.208,7000,131888888 88,123456 Check Status status,password Replied SMS: Eg: status,123456 GSM=31 GPRS=1 GPS=10 ACC=N0 SPEED=120 ACCON=30S ACCOFF=120S VCC=12V IMEI=356823031234501 If the password is wrong, it will reply: Get status failed Check Service GetService,password The device will reply with the service Number Eg: getservice,123456 numbers...
-
Page 12: Trouble Shooting
ROPE INNOVATION CO., LTD. CONFIDENTIAL NO.：ROPE-15121802 6.Trouble shooting 6.1. After installing it in the first time, if device cannot get connected with platform server, at this time it is “logged off” status in platform. Follow the instructions one by one as below: 1) Call the device to see what happens. -
Page 13: Standard Accessories
ROPE INNOVATION CO., LTD. CONFIDENTIAL NO.：ROPE-15121802 7. Standard Accessories Device 6 PIN power cable 4 PIN I/O cable Microphone Relay SOS button Copyright © 2017 ROPE INNOVATION CO., LTD. All rights reserved. Website: www.ropetrack.com...
