NVLR333GE – Hotpoint 5.8 Cu. Ft. Extra-Large Capacity Gas Dryer

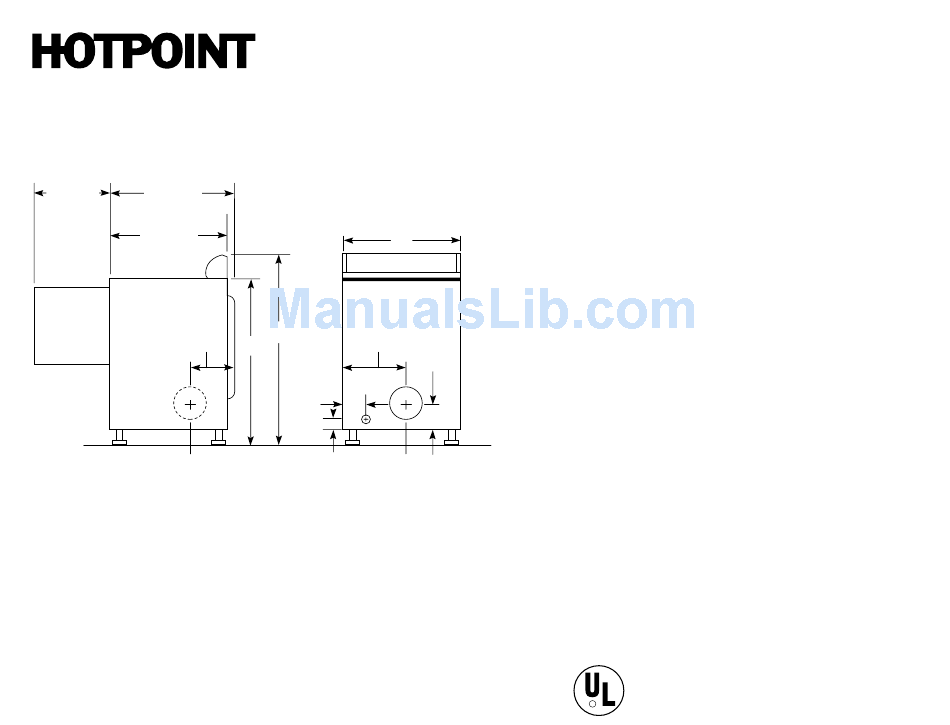

Dryer Dimensions (in inches)
23-1/2
25-3/4
25-1/2*
4-3/4
Side View
*24-1/2" from the edge of the side panel to the front.
25-1/2" from front to edge of end caps.
Washer/Dryers LC QSart
Specification Created 2/04
470140

Rear View

®
*24-1/2" from the edge of the side panel to the front.
25-1/2" from front to edge of endcaps.
27
42
11-3/4
36
2
5-1/2
2-1/2
Rear View
Exhaust Options:
3-way via rear, left and bottom. Dryer is shipped exhausted to the rear.
Alternate exhausting knockouts are supplied.
Circuit Requirements:
An individual properly-grounded branch circuit, with a three-prong grounding-
type receptacle, protected by a 15- or 20-amp circuit breaker or a time-delay
fuse is required.
Gas Dryer Electric Rating:
120V, 60Hz, 6 Amp
Gas (BTU/HR): 22,000. Factory-equipped for natural gas. Tested for LP gas.
LP gas supply requires an optional conversion kit. Check installation instructions
for correct kit and have a qualified gas technician install a conversion kit. See
dryer ducting information for proper installation.
Installation Information: For complete information, see installation
instructions packed with product for current dimensional data.
Listed by
Underwriters
Laboratories
R
