NVLR333EE – Hotpoint 5.8 Cu. Ft. Extra-Large Capacity Electric Dryer

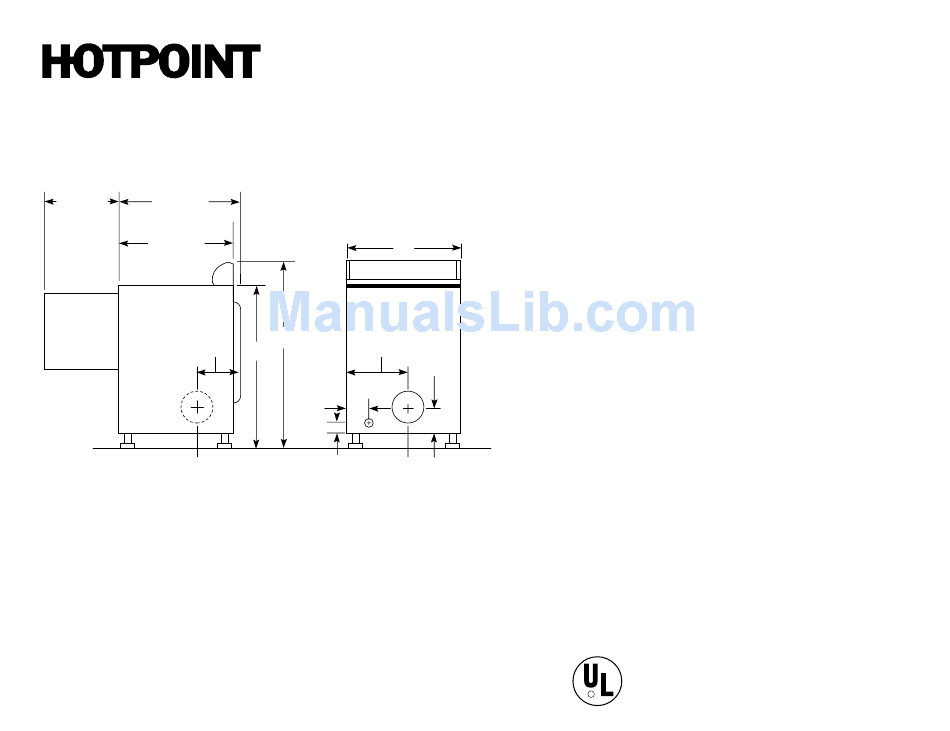

Dryer Dimensions (in inches)
23-1/2
25-3/4
25-1/2*
5-1/4
Side View
*24-1/2" from the edge of the side panel to the front.
25-1/2" from front to edge of end caps.
HTP Washer/Dryers XLC QSart
Specification Revised 2/05
470142

Rear View

®
27
42
11-1/2
36
2
3-1/2
2-1/2
Rear View
Exhaust Options:
4-way via rear, right, left and bottom.
Circuit Requirements:
An individual, properly-grounded branch circuit, protected by a
30-amp circuit breaker or a time-delay fuse, is required.
Electric Dryer Rating:
240V, 5600W, 60Hz, 24 Amp
208V, 4400W, 60Hz, 22 Amp
Installation Information: For complete information, see installation
instructions packed with product for current dimensional data.
Listed by
Underwriters
Laboratories
R
