Thank you for being a valued Homepin customer!
Before you enjoy Thunderbirds Pinball, please follow these instructions to set-up your machine.
您好. 谢谢您成为我们 Homepin 尊贵的客户.
在您开始享受雷鸟特攻队弹珠机带给您的愉悦体验之前，请先按照此说明指示设置您的机器。
Note 温馨提醒：All service updates and the full service manual can be downloaded here.
https://www.homepin.com/service.html
您可以到我司技术服务网站下载雷鸟特攻队弹珠机的完整说明书(英文版)以及
关注随时更新的技术指导说明等讯息.
English Service E-mail：
中文售后服务邮箱：amanda.sun@homepin.com
Factory Phone number 服务电话：+86 15989900584 (工作时间 08:30~11:30, 14:00~17:00)
Step 1 步骤 1：
Ensure the package has no
visible damage.
检查确保外包装没有任何可见
的损坏泡沫包装。
NOTE：DO NOT cut the plastic wrap that is holding the backbox until the legs are fitted and the
machine has being lifted onto its four legs.
请注意：在弹珠机还没安装４根机脚并完全正式放置在地上前，
围膜割开，否则将造成上背箱损坏.

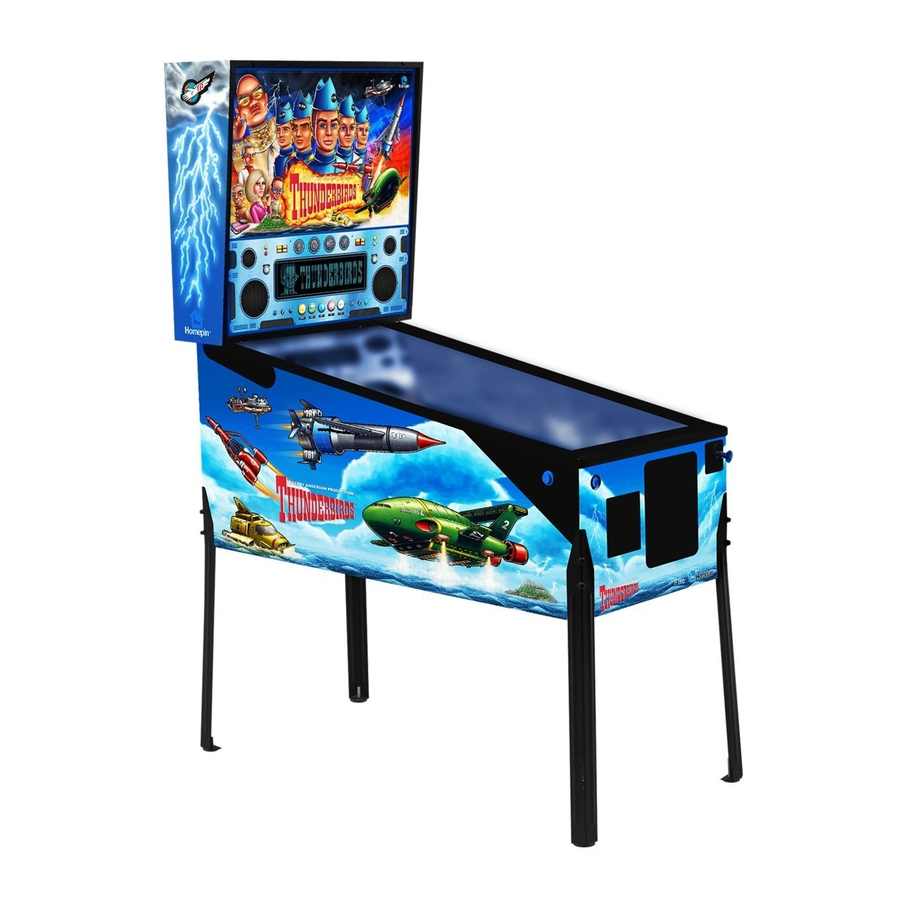

Unpack & Setup Homepin Thunderbirds pinball machine
雷鸟特攻队弹珠机组装设置说明书
Before you start to unpack the package, please read these
instructions carefully.
在您开始拆除外包装前，请务必先详细阅读此说明书，以便您
可以初步了解安装步骤。
support@homepin.com
Step 2 步骤 2：
Check the 'Tilt label' and don't
sign for delivery if there
appears to be any problems.
检查"防倾斜标签"
(如果蓝色粉末有大量渗漏或出
现任何问题，请不要签收)
Unpacking_Instructions 组装设置说明书-V1 .doc
(Machine serial number must be supplied)
(来信时请务必告知您的弹珠机序列号)
Carefully cut the outer plastic
wrap and remove the foam
packing.
小心地切掉外部围膜后取出珍
珠棉包装 (请勿用力切割避免刀
片深入割到机身)
千万不可以
Step 3 步骤 3：
将上背箱与机身间的
第 1 页 共 9 页
Page 1 of 9
Advertisement
Related Manuals for HOMEPIN Thunderbirds
Summary of Contents for HOMEPIN Thunderbirds
- Page 1 Unpack & Setup Homepin Thunderbirds pinball machine 雷鸟特攻队弹珠机组装设置说明书 Thank you for being a valued Homepin customer! Before you enjoy Thunderbirds Pinball, please follow these instructions to set-up your machine. 您好. 谢谢您成为我们 Homepin 尊贵的客户. 在您开始享受雷鸟特攻队弹珠机带给您的愉悦体验之前，请先按照此说明指示设置您的机器。 Before you start to unpack the package, please read these instructions carefully.
- Page 2 Unpack & Setup Homepin Thunderbirds pinball machine 雷鸟特攻队弹珠机组装设置说明书 Step 4 步骤 4： Step 5 步骤 5： Under the cardboard top Cut the large cable ties holding the box with legs to the pallet packing you will find the and unpack the four legs. They are all the same but will become power cable.
- Page 3 Unpack & Setup Homepin Thunderbirds pinball machine 雷鸟特攻队弹珠机组装设置说明书 In the coin box you will find spare trees, spare plastics and spare apron cards. There is also a box of pinballs, 8 leg bolts and two backbox wing bolts with washers. There might also be a bag of Thunderbirds tokens (limited supply, may run out).
- Page 4 Unpack & Setup Homepin Thunderbirds pinball machine 雷鸟特攻队弹珠机组装设置说明书 Step 8 步骤 8： Carefully cut and remove the plastic wrap holding the backbox. 小心的将围膜移除，注意不要割 到机身（如左图） Step 9 步骤 9： Slowly fold the backbox up to its vertical position. Take note of the three tubes that carry the wires.
- Page 5 Unpack & Setup Homepin Thunderbirds pinball machine 雷鸟特攻队弹珠机组装设置说明书 Step 10 步骤 10： Step 11 步骤 11： Remove the protective plastic Locate the backbox translite key on the hook inside the front door from the playfield glass. and unlock the translite (the key will stay in the lock in the unlocked 将玻璃的保护膜移除.
- Page 6 Unpack & Setup Homepin Thunderbirds pinball machine 雷鸟特攻队弹珠机组装设置说明书 Step 13 步骤 13： Identify and lift the small latch on the top right of the DMD panel. This will release it and you can swing it out to the left and clear of the backbox.
- Page 7 Unpack & Setup Homepin Thunderbirds pinball machine 雷鸟特攻队弹珠机组装设置说明书 Step 15 步骤 15： Now identify the lock down bar release handle inside the door and move it to the left to release the lock bar. It will be quite firm and will require some force to move it. Pushing down on the lock down bar might assist here.
- Page 8 Unpack & Setup Homepin Thunderbirds pinball machine 雷鸟特攻队弹珠机组装设置说明书 Step 17 步骤 17： Remove the three pieces of packing foam from The Mole captive ball, the ball launch trough and the tilt bob shown below. 将『雷鸟钻地机、击球发射槽、机身内平衡仪』三处地方的 保护珍珠棉取出。 Step 18 步骤 18：...
- Page 9 Put the coin box in place and close the door. The main power on/off switch is fitted under the right hand side next to the front right leg. Congratulations, your new Thunderbirds Pinball machine is ready to use. 完成上述步骤 1~步骤 20 的动作后，将钢化玻璃重新放回弹珠机中，将喇叭 DMD 面板放回原处并...
