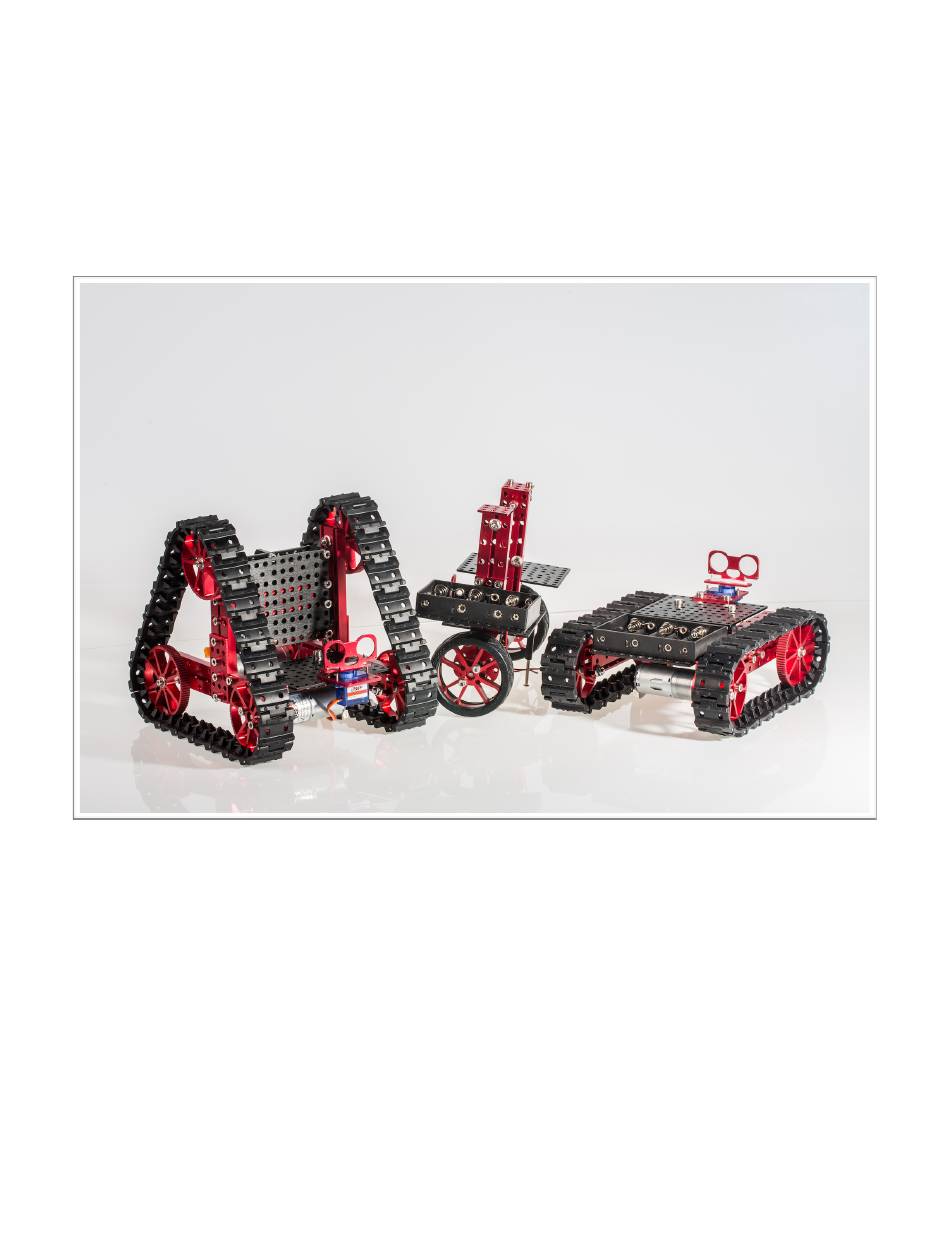

- Page 1 OSEPP Mechanical & Functional Kits Tutorials create interactive robotics projects with our Robotics Functional Kit! OSEPP ROBOTICS KITS GUIDE...
- Page 2 TANK MECHANICAL KIT OSEPP ROBOTICS KITS GUIDE...
-
Page 3: Parts Included
PARTS INCLUDED Materials Double Beam -9 Double Beam -6 Double Beam -8 RIM -90T Base Plate Shaft Connector 4mm DC Motor -25 Bracket OSEPP ROBOTICS KITS GUIDE... - Page 4 Mount Threaded Shaft 4x39mm Beam Connector Tracks Track Axle Wrench DC Motor -25 w/pcb Battery Holder 6AA Flange Bearing 4x8x3mm Standoff M4*15 OSEPP ROBOTICS KITS GUIDE...
- Page 5 Plastic Ring 4x7x2mm plastic clip Motor Cable Terminal Block Headless Screw M4x8 Headless Screw M3x8 Screw M4x22 Screw M4x14 Screw M4x12 Screw M4x8 Screw M3x8 - Flat Head Screw M3x6 - HEX Nut M4 Phillips Screwdriver OSEPP ROBOTICS KITS GUIDE...
- Page 6 Analog Servo Servo Accessory Set (servo horn, bracket, screws Hex Allen Key 3.0mm Hex Allen Key 2.5mm Hex Allen Key 2.0 Hex Allen Key 1.5 Wrench Bracket 3x3 Plate B 3X6 OSEPP ROBOTICS KITS GUIDE...
- Page 7 ASSEMBLY INSTRUCTIONS Attaching Motors Parts List: DC Motor DC Motor -25 Bracket Screw M3x8 - Flat Head Phillips Screwdriver OSEPP ROBOTICS KITS GUIDE...
- Page 8 Attach the shaft of the motor inside the center hole of the mounting bracket. Use a Phillips head screwdriver to attach the bracket to the DC motor. OSEPP ROBOTICS KITS GUIDE...
- Page 9 Attaching DC motor to Double Screw M4x12 Double Beam -9 Hex Allen Key 3.0mm Beam Parts List: OSEPP ROBOTICS KITS GUIDE...
- Page 10 Attach the mounted DC motor to the Double Beam with the M4 screws. OSEPP ROBOTICS KITS GUIDE...
- Page 11 Plastic Ring 4x7x2mm Threaded Shaft 4x39mm RIM -90T Flange Bearing 4x8x3mm Screw M3x6 - HEX Hex Allen Key 2.5mm Shaft Connector 4mm Headless Screw M3x10 OSEPP ROBOTICS KITS GUIDE...
- Page 12 Installing the Rim and Shaft Connector Parts List: OSEPP ROBOTICS KITS GUIDE...
- Page 13 Insert the threaded shaft through the RIM-90T center. Add a flange to each end. Screw the M3 into the threaded shaft. Insert the headless screw into the center of the shaft connector. OSEPP ROBOTICS KITS GUIDE...
- Page 14 Place the plastic ring first through the DC motor shaft. Attach the shaft connector to the DC motor shaft. Tighten the headless screw. OSEPP ROBOTICS KITS GUIDE...
- Page 15 The Rim Parts List: RIM -90T Screw M4x14 Hex Allen Key 3.0mm Nut M4 Wrench OSEPP ROBOTICS KITS GUIDE...
- Page 16 Attach the Rim to the motor bracket with the M4 screws. OSEPP ROBOTICS KITS GUIDE...
- Page 17 Tighten the rim to the double beam with the M4 nut. At this point, you will want to repeat these steps to configure the other DC motor. OSEPP ROBOTICS KITS GUIDE...
- Page 18 The Frame Parts List: Double Beam -6 Beam Connector Headless Screw M4x8 Hex Allen Key 2.0 OSEPP ROBOTICS KITS GUIDE...
- Page 19 Slide in the beam connectors to each corner of the double beam. Attach the headless screws into the corner holes of the double beam. OSEPP ROBOTICS KITS GUIDE...
- Page 20 Connecting the Parts Together Parts List: HEX Screw M4x12 Assembled DC Motors (previous steps) Assembled Double Beam (previous steps) Hex Allen Key 3.0mm OSEPP ROBOTICS KITS GUIDE...
- Page 21 Attach the double beam in between the assembled DC motor wheel brackets using the M4 screws. Make sure the double beam is centered between the wheel motor brackets. OSEPP ROBOTICS KITS GUIDE...
- Page 22 Building the Base parts needed: Double Beam -6 Nut M4 Screw M4x8 Screw M4x22 Screw M4x14 Screw M4x12 Base Plate Standoff M4*15 Hex Allen Key 3.0mm Wrench OSEPP ROBOTICS KITS GUIDE...
- Page 23 Double Beam-06 with the four M4*22 screws to the center Double Beam. Secure with the M4 nuts. OSEPP ROBOTICS KITS GUIDE...
- Page 24 Attach one of the Base plates at the last notch of the base double beam. After, attach at the top the standoff m4*15 spacers. Use the m4*12 screws to screw into place from the bottom as shown below: OSEPP ROBOTICS KITS GUIDE...
- Page 25 Attach the second base plate to the standoff screws with the M4*8 HEX screws. OSEPP ROBOTICS KITS GUIDE...
- Page 26 Analog Servo & Ultrasonic Sensor Parts List: Servo Horn (servo accessories parts) Servo Bracket Analog Servo Screw M2*10 (servo accessories parts) small screw (servo accessories parts) Plastic Rivet OSEPP ROBOTICS KITS GUIDE...
- Page 27 Insert the Servo into the mounting bracket. Insert the M2*10 screws through the servo mounting holes to attach to the servo bracket. OSEPP ROBOTICS KITS GUIDE...
- Page 28 Make sure you are able to align the servo horn center teeth the the analog servo shaft. OSEPP ROBOTICS KITS GUIDE...
- Page 29 Attach the ultrasonic & servo mount onto the double beam base of the tank with the plastic rivets. OSEPP ROBOTICS KITS GUIDE...
- Page 30 Battery Pack and Wheels Parts List: Plastic Rivet Battery Holder 6AA Tracks Track Axle Terminal Block Phillips screwdriver OSEPP ROBOTICS KITS GUIDE...
- Page 31 Slide the battery holder leads into the terminal block. This battery holder will allow us to connect to the TB6612 motor driver in the Robotics Functional Kit (sold separately) . OSEPP ROBOTICS KITS GUIDE...
- Page 32 Attach the battery holder onto the back base plate using the rivets. OSEPP ROBOTICS KITS GUIDE...
- Page 33 Slide the track axles into each track link to assemble the belt wheels for the tank. Repeat for each wheel. OSEPP ROBOTICS KITS GUIDE...
- Page 34 Rims (one belt per two wheels). OSEPP ROBOTICS KITS GUIDE...
- Page 35 CONTACT US SUPPORT: support@osepp.com Become a Distributor: sales@osepp.com OSEPP ROBOTICS KITS GUIDE...
- Page 36 OSEPP ROBOTICS KITS GUIDE...
