OSEPP TRIANGULAR TANK MECHANICAL KIT Aassembly Instructions

Hide thumbs

Advertisement

Quick Links

Download this manual
OSEPP Mechanical & Functional
Kits Tutorials
create interactive robotics projects with our Robotics Functional Kit!
1
OSEPP ROBOTICS KITS GUIDE

Advertisement

loading
Need help?

Need help?

Do you have a question about the TRIANGULAR TANK MECHANICAL KIT and is the answer not in the manual?

Questions and answers

Related Manuals for OSEPP TRIANGULAR TANK MECHANICAL KIT

Summary of Contents for OSEPP TRIANGULAR TANK MECHANICAL KIT

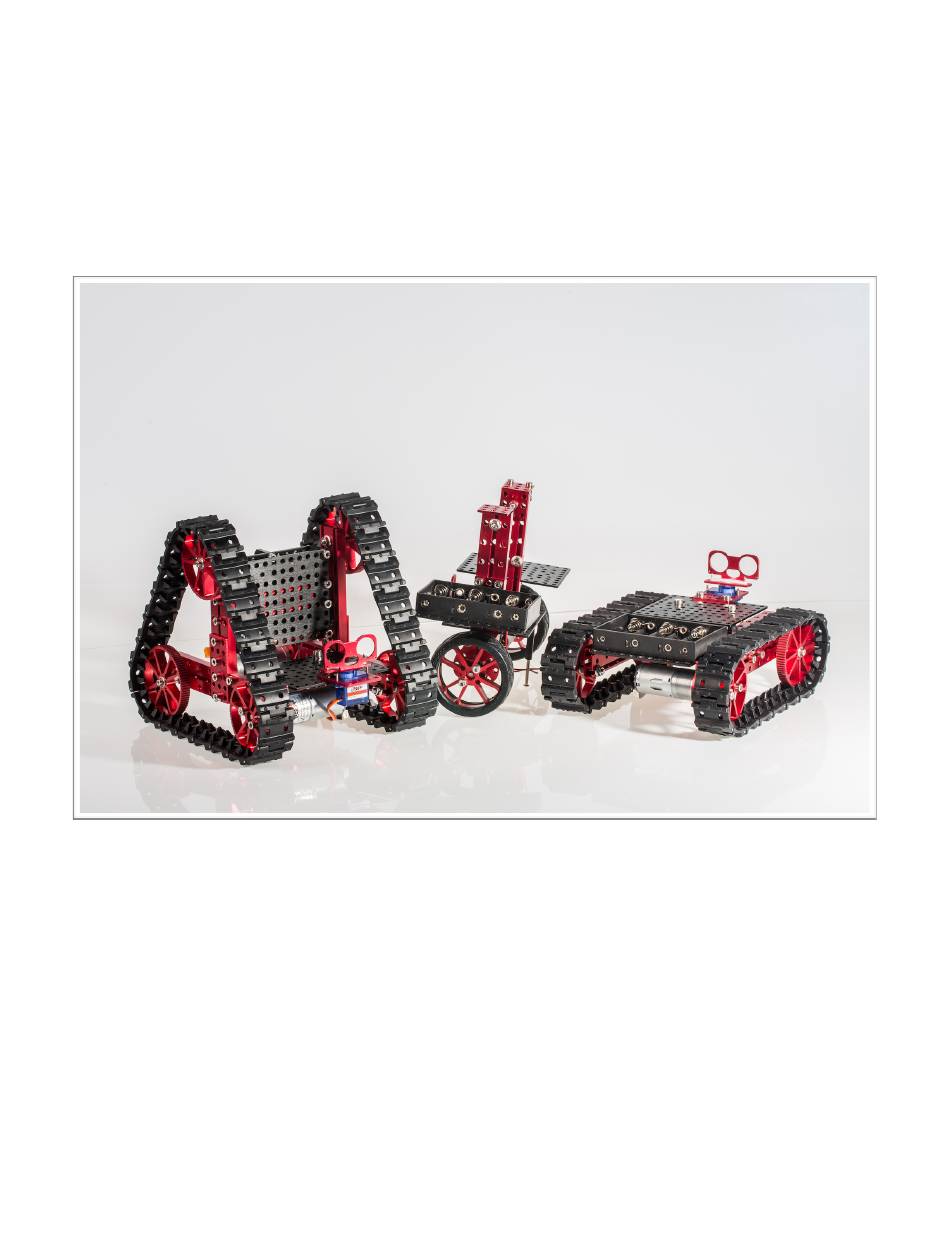

  • Page 1 OSEPP Mechanical & Functional Kits Tutorials create interactive robotics projects with our Robotics Functional Kit! OSEPP ROBOTICS KITS GUIDE...
  • Page 2 TRIANGULAR TANK MECHANICAL KIT
 OSEPP ROBOTICS KITS GUIDE...

  • Page 3: Parts Included

    PARTS INCLUDED Materials QTY
 Double Beam -9 Double Beam -6 Double Beam -8 RIM -90T Base Plate Shaft Connector 4mm DC Motor -25 Bracket ultrasonic Mount OSEPP ROBOTICS KITS GUIDE...
  • Page 4 Threaded Shaft 4x39mm Beam Connector Tracks Track Axle Wrench DC Motor -25 w/pcb Battery Holder 6AA Flange Bearing 4x8x3mm Standoff M4*15 OSEPP ROBOTICS KITS GUIDE...
  • Page 5 Plastic Ring 4x7x2mm plastic clip Motor Cable Terminal Block Headless Screw M4x8 Headless Screw M3x10 Screw M4x22 Screw M4x14 Screw M4x12 Screw M4x8 Screw M3x8 - Flat Head Screw M3x6 - HEX OSEPP ROBOTICS KITS GUIDE Nut M4...
  • Page 6 Analog Servo Servo Accessory Set (servo horn, bracket, screws Hex Allen Key 3.0mm Hex Allen Key 2.5mm Hex Allen Key 2.0 Hex Allen Key 1.5 Wrench Plate B 3X6 Phillips Screwdriver OSEPP ROBOTICS KITS GUIDE...

  • Page 7: Parts List

    ASSEMBLY INSTRUCTIONS Attaching Motors Parts List: DC Motor DC Motor -25 Bracket Screw M3x8 - Flat Head Phillips Screwdriver OSEPP ROBOTICS KITS GUIDE...
  • Page 8 Attach the shaft of the motor inside the center hole of the mounting bracket. Use a Phillips head screwdriver to attach the bracket to the DC motor. OSEPP ROBOTICS KITS GUIDE...
  • Page 9 Attaching DC motor to Double Beam Parts List: Double Beam -9 Hex Allen Key 3.0mm Screw M4x12 OSEPP ROBOTICS KITS GUIDE...
  • Page 10 Attach the mounted DC motor to the Double Beam 09 with the M4 screws. OSEPP ROBOTICS KITS GUIDE...
  • Page 11 Installing the Rim and Shaft Connector Parts List: Plastic Ring 4x7x2mm Threaded Shaft 4x39mm RIM -90T Flange Bearing 4x8x3mm Screw M3x6 - HEX Hex Allen Key 2.5mm Shaft Connector 4mm Headless Screw M3x10 OSEPP ROBOTICS KITS GUIDE...
  • Page 12 Insert the threaded shaft through the RIM-90T center. Add a flange to each end. Screw the M3 into the threaded shaft. OSEPP ROBOTICS KITS GUIDE...
  • Page 13 Insert the headless screw into the center of the shaft connector. OSEPP ROBOTICS KITS GUIDE...
  • Page 14 Place the plastic ring first through the DC motor shaft. Attach the shaft connector to the DC motor shaft. Tighten the headless screw. OSEPP ROBOTICS KITS GUIDE...
  • Page 15 The Rim Parts List: RIM -90T Screw M4x14 Hex Allen Key 3.0mm Nut M4 Wrench Double Beam -6 Beam Connector Headless Screw M4x8 Hex Allen Key 2.0 OSEPP ROBOTICS KITS GUIDE...
  • Page 16 Attach the Rim to the motor bracket with the M4 screws. OSEPP ROBOTICS KITS GUIDE...
  • Page 17 Tighten the rim to the double beam with the M4 nut. At this point, you will want to repeat these steps to configure the other DC motor.
 OSEPP ROBOTICS KITS GUIDE...
  • Page 18 The Frame Parts List: HEX Screw M4x12 Assembled DC Motors (previous steps) Assembled Double Beam (previous steps) Hex Allen Key 3.0mm OSEPP ROBOTICS KITS GUIDE...
  • Page 19 Slide in the beam connectors to each corner of the double beam. Attach the headless screws into the corner holes of the double beam.
 OSEPP ROBOTICS KITS GUIDE...
  • Page 20 Connecting the Parts Together Parts List: OSEPP ROBOTICS KITS GUIDE...
  • Page 21 Attach the double beam in between the assembled DC motor wheel brackets using the M4 screws. Make sure the double beam is centered between the wheel motor brackets. OSEPP ROBOTICS KITS GUIDE...
  • Page 22 Installing the Base Plate & Top Frame parts list Base Plate Screw M4x14 Nut M4 Screw M4x8 Standoff M4*15 Beam Connector Double Beam -6 Hex Allen Key 3.0mm OSEPP ROBOTICS KITS GUIDE...
  • Page 23 Attach the base plate with the M4*14 screws to the assembled wheel frame. secure with M4 nuts.
 OSEPP ROBOTICS KITS GUIDE...
  • Page 24 Attach the second base plate and slide each beam connector into the double beam slot. Fasten the base plate to the beam with four M4*8 screws.
 OSEPP ROBOTICS KITS GUIDE...
  • Page 25 M4*15 standoff screws to the base plate. Fasten with the M4*8 screws.
 OSEPP ROBOTICS KITS GUIDE...
  • Page 26 Attach two M4*15 standoff screws to the other base plate. Fasten with M4*8 screws.
 OSEPP ROBOTICS KITS GUIDE...
  • Page 27 Take both base plates you assembled individually and attach them with four M4*8 screws.
 OSEPP ROBOTICS KITS GUIDE...
  • Page 28 Assembling the Rim parts list RIM -90T Double Beam -6 Nut M4 Wrench Screw M4x14 Plate B 3X6 Hex Allen Key 3.0mm OSEPP ROBOTICS KITS GUIDE...
  • Page 29 Attach the assembled RIM 90-T to the double beam and fasten with the M4 nut. Repeat twice.
 OSEPP ROBOTICS KITS GUIDE...
  • Page 30 Take plate B 3x6 and attach to the assembled RIM parts with the M4*14 screws. Fasten with the M4 screws.
 OSEPP ROBOTICS KITS GUIDE...
  • Page 31 Attaching Together parts list
 Screw M4x12 Screw M4x14 Nut M4 Hex Allen Key 3.0mm OSEPP ROBOTICS KITS GUIDE...
  • Page 32 Fasten the base plates to the assembled RIMs with the M4*12 screws.
 OSEPP ROBOTICS KITS GUIDE...
  • Page 33 Attach the entire top bracket to the bottom RIM bracket with M4*14 screws. Fasten with the M4 nuts.
 OSEPP ROBOTICS KITS GUIDE...
  • Page 34 Analog Servo & Ultrasonic Sensor Parts List: Servo Horn (servo accessories parts) Servo Bracket Analog Servo Screw M2*10 (servo accessories parts) small screw (servo accessories parts) Plastic Rivet OSEPP ROBOTICS KITS GUIDE...
  • Page 35 Insert the Servo into the mounting bracket. Insert the M2*10 screws ( found in servo accessories) through the servo mounting holes to attach to the servo bracket.
 OSEPP ROBOTICS KITS GUIDE...
  • Page 36 Make sure you are able to align the servo horn center teeth the the analog servo shaft.
 OSEPP ROBOTICS KITS GUIDE...
  • Page 37 Attach the servo / ultrasonic mount to the tank with the rivets.
 OSEPP ROBOTICS KITS GUIDE...
  • Page 38 Battery Pack & Wheels Parts List: Battery Holder 6AA Plastic Rivet Base Plate Screw M4x8 Tracks Track Axle OSEPP ROBOTICS KITS GUIDE...
  • Page 39 Attach the battery pack to the Triangular Tank with the rivets.
 OSEPP ROBOTICS KITS GUIDE...
  • Page 40 Attach the base plate to the battery holder with the M4*8 screws.
 OSEPP ROBOTICS KITS GUIDE...
  • Page 41 Slide the track axles into each track link to assemble the belt wheels for the tank. Repeat for each wheel. OSEPP ROBOTICS KITS GUIDE...
  • Page 42 Completed Triangular Tank OSEPP ROBOTICS KITS GUIDE...
