ANLU AG-HA-950D Owner's Manual

Hide thumbs
1
2
3
4
5
6
7
8
9

Advertisement

Table of Contents

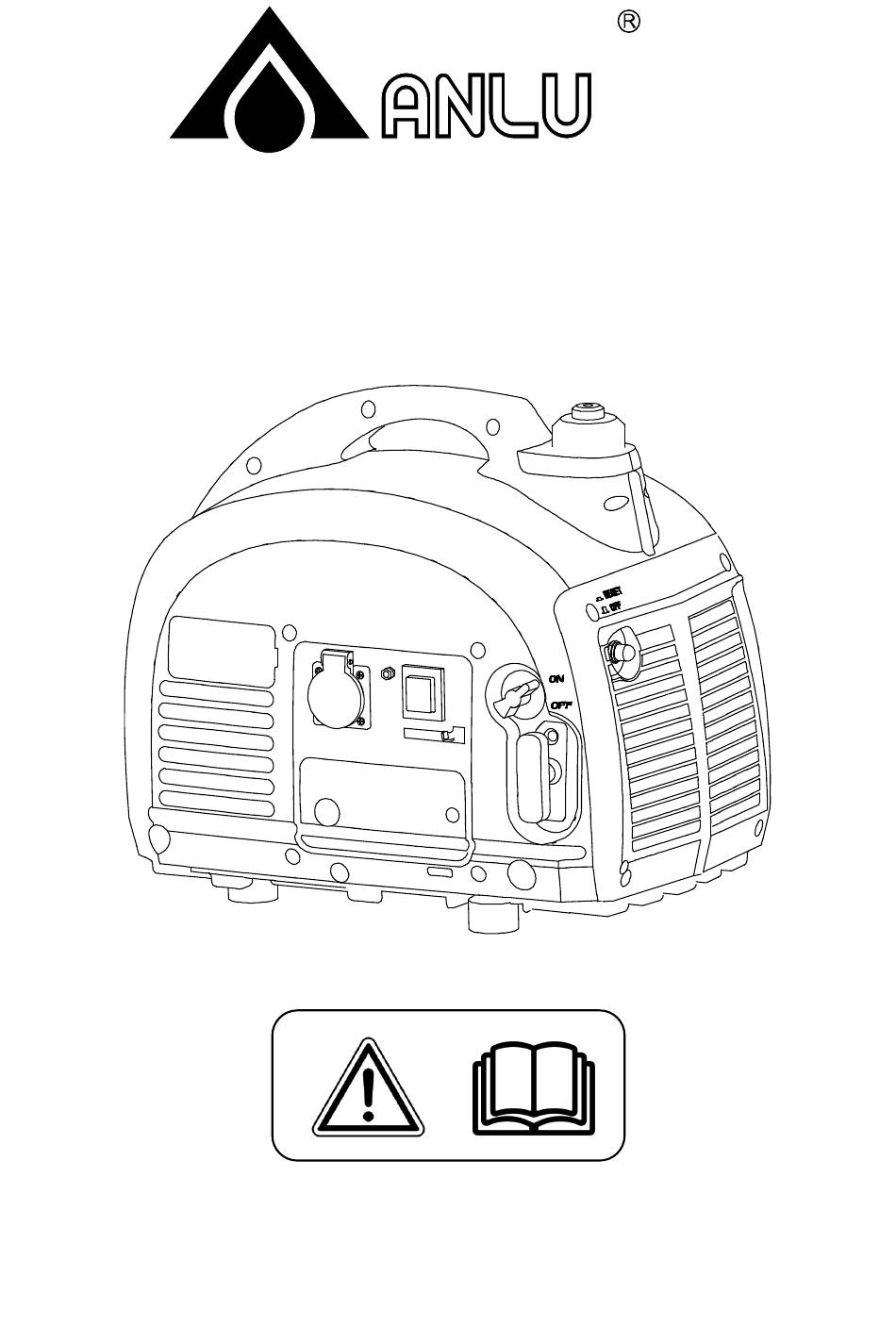

MODEL: AG-HA-950D
GENERATOR OWNER'S MANUAL
BEFORE OPERATING THIS MACHINE
PLEASE READ THESE INSTRUCTIONS CAREFULLY

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AG-HA-950D and is the answer not in the manual?

Questions and answers

Antonio
May 28, 2025

No tiene chispa

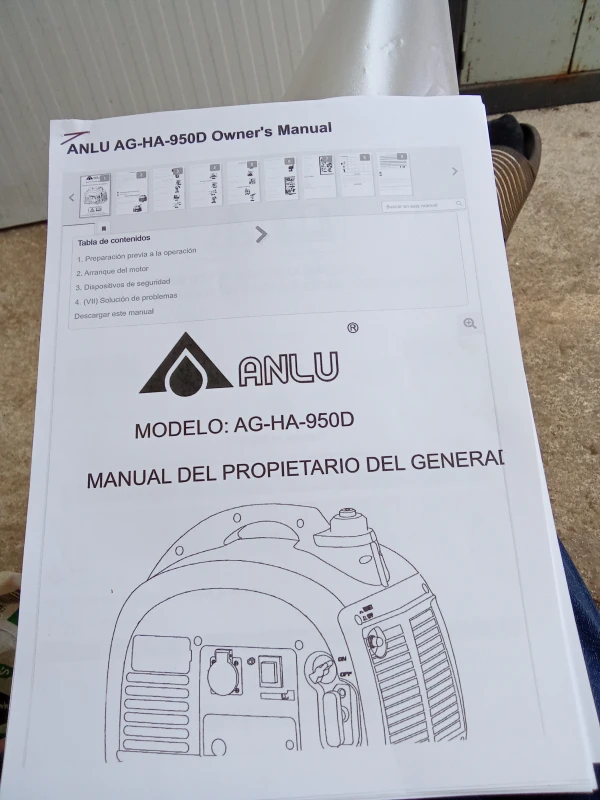

User image 683765fdd4f22
0
1 comments:
Mr. Anderson
May 28, 2025

The ANLU AG-HA-950D may not spark due to issues with the spark plug. Possible reasons include:

1. Carbon deposits on the spark plug.
2. Incorrect spark plug gap (should be 0.7–0.8 mm).
3. Discoloration indicating wear (standard color is tan).
4. Faulty or dirty spark plug not producing a spark.

Removing, cleaning, checking the gap, and inspecting the color of the spark plug as part of maintenance may resolve the issue.

This answer is automatically generated

0
Ray
January 21, 2025

Engine. Not starting magnets have come loose where do they go

0

Related Manuals for ANLU AG-HA-950D

Summary of Contents for ANLU AG-HA-950D

  • Page 1 MODEL: AG-HA-950D GENERATOR OWNER’S MANUAL BEFORE OPERATING THIS MACHINE PLEASE READ THESE INSTRUCTIONS CAREFULLY...

  • Page 2: Pre-Operation Preparation

    （I）WARNING 1. Read the operator’s instruction manual. 2. Attention! Exhaust gases are toxic. Do not operate the generator in a room without ventilation system! 3. Children should be protected by keeping. 4. Refilling of the generating sets are not allowed during the operation! 5.

  • Page 3: Starting The Engine

    4. Do not fill above fuel filter top.(Picture 3) 5.1. Use fuel tank cap to measure oil as.(Picture 4) 5.2. Put gasoline and oil into one container with mixing ratio 40:1. 5.3. After shaking, put them into fuel tank. （III）STARTING THE ENGINE Before starting, do not connect electric apparatus.
  • Page 4 5. Pull slowly on recoil starter until engaged, then put it briskly. (Picture 9) 6．Return chock lever. (Picture10). (IV) STOPPING THE ENGINE 1. Before stopping, turn off electric apparatus. (Picture 11) 2. Turn engine switch to “STOP”. (Picture 12) 3． Turn fuel cock lever to “OFF”. (Picture 13)

  • Page 5: Safety Devices

    (V) CONNECTION 1. Wind lead 2 or 3 turns around handle. (Picture 14) 2. Start engine. 3. Plug into AC socket. (Picture 15) 4. SAFETY DEVICES Press the button to reset protector, to reduce output load if AC protector turns off. (Picture 16) RESET (Picture 16) (VI) PERIODIC MAINTENANCE...
  • Page 6 1.3. Check for discoloration. Standard: Tan color. 1.4. Check spark plug gap.Standard:0.7~0.8mm. (Picture 19) 2. AIR FILTER (TIME: per 100h or per one month) 2. 1. Remove air filter. (Picture 20①) 2. 2. Wash clearly in solvent. (Picture 20②) 2．3.Get Motor oil. (Picture 20③) 2.

  • Page 7: (Vii) Trouble Shooting

    3. FUEL COCK AND FUELTANK FILTER (TIME: per 150h or per three month). 3.1. Clean fuel cock. 3.1.1. Stop engine. 3.1.2. Turn fuel cock lever to “OFF”. 3.1.3. Clean with solvent. (Picture21) 3.2 Clean fuel tank filter. 3.2.1. Clear in solvent. 3.2.2.
  • Page 8 (VIII) APPLICABILITY Electric apparatus Rated Load Maximum Load Power factor cosø 700W 850W 550W 650W 0.7-0.8 500W 600W 0.7-0.95 (IX) STORAGE When the generator set is not being operated or being stored more than one month, follow these instructions: 1. Drain all the fuel out of the tank, fuel cock, and carburetor. 2.
  • Page 9 GASOLINE GENERATOR SET Type: AG-HA-950D AC voltage: 230V/50Hz AC output: COP 630W Power factor: 1.0 Max. output 700W Speed 3000r /min Weight 18kg Performance class Max. temperature: 40℃ IP23M Max. Altitude:1000m Bj2017 Meaning of crossed –out wheeled dustbin: Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities.
