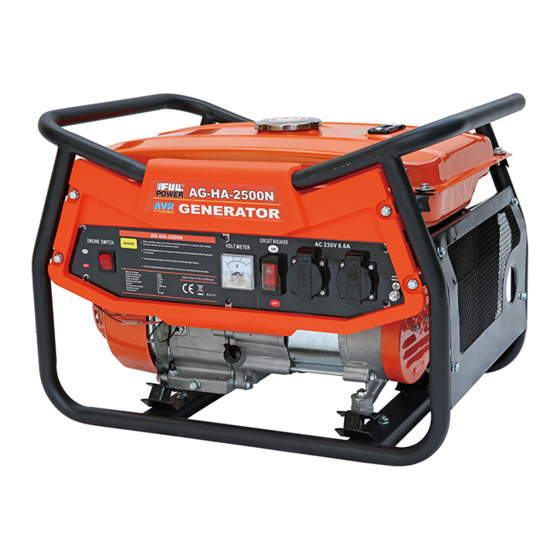

AG-HA-2500N
GASOLINE GENERATOR
OWNER'S MANUAL
BEFORE OPERATING THIS EQUIPMENT
PLEASE READ THESE INSTRUCTIONS
CAREFULLY

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AG-HA-2500N and is the answer not in the manual?

Questions and answers

Related Manuals for ANLU AG-HA-2500N

Summary of Contents for ANLU AG-HA-2500N

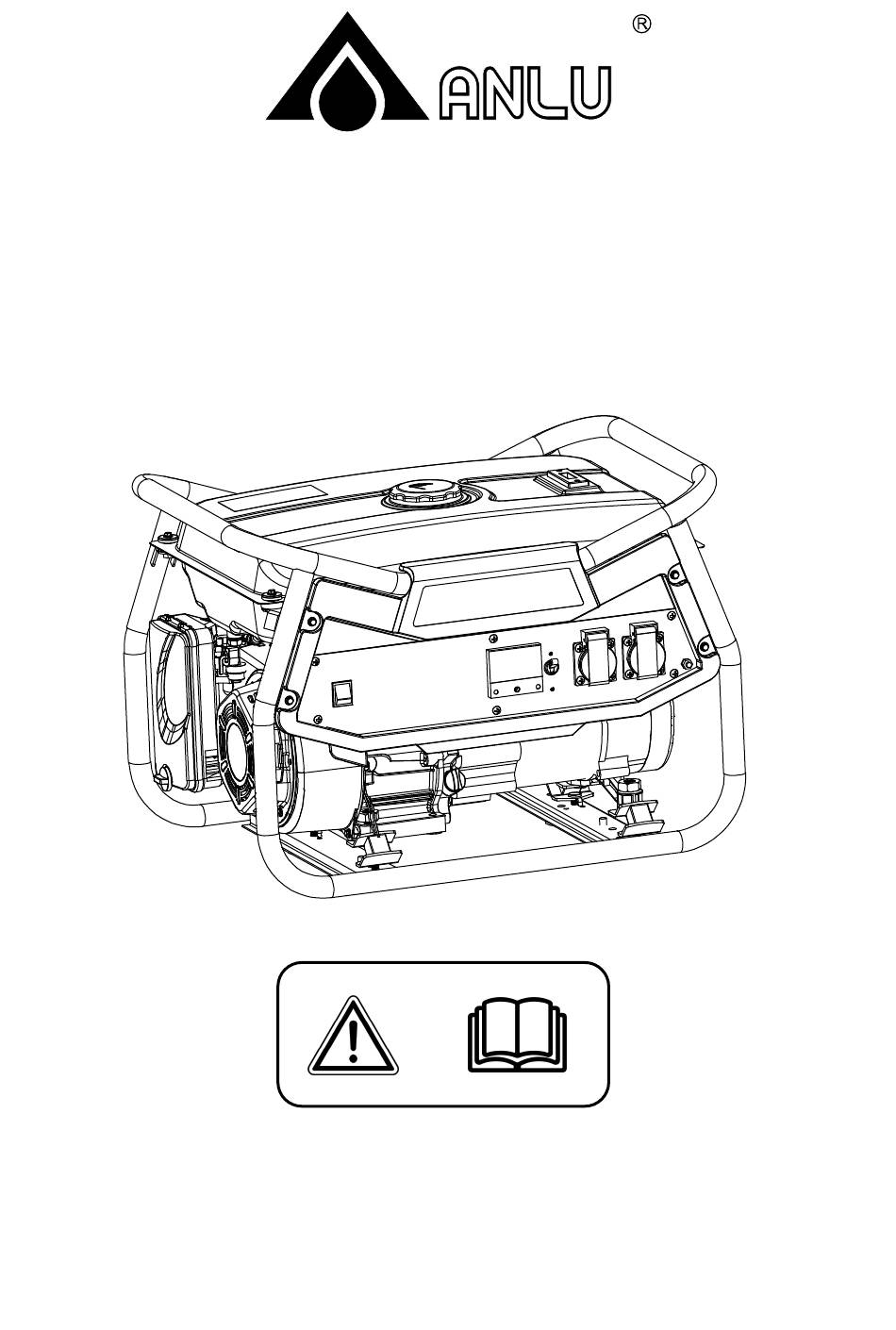

  • Page 1 AG-HA-2500N GASOLINE GENERATOR OWNER’S MANUAL BEFORE OPERATING THIS EQUIPMENT PLEASE READ THESE INSTRUCTIONS CAREFULLY...
  • Page 2 （I）WARNING 1. Read the operator’s instruction manual. 2. Attention! Exhaust gases are toxic. Do not operate the generator in a room without ventilation system! 3. Children should be protected by keeping them at a safe distance from the generator set! 4.
  • Page 3 Read the Manual. Take appropriate measures to protect your hearing. Hot parts. Keep your distance. While refueling motor leave. Not use in unventilated areas operate.

  • Page 4: Names Of Parts

    1. Names of Parts （1）Fuel tank ( 2）Fuel tank cap （3）Fuel gauge （4）Choke handle （5）Air cleaner （6）Starting handle （7）Fuel valve （8）Engine switch （9）Oil filler cap （10）Voltage meter （11）AC circuit breaker （12）AC socket （13）Ground connection terminal 2．Checks before Operating (1) Check the engine oil level Notice: Stop the generator in a smooth place, then check the generator.
  • Page 5 ① Uncover the oil mouth then clean the engine oil ruler with clean cloth. ② Plug the engine oil ruler into the oil mouth and don’t turn it. If the oil level is below the lower limit of the engine oil ruler you should add some engine oil.

  • Page 6: Starting The Engine

    3. Starting the engine (1) Disconnect any load from the AC socket, and turn off the alternating current circuit breaker. AC socket AC circuit breaker (2) Turn the fuel valve to “ON” position. (3) Turn the wind-block color rod to “CHOKE”...
  • Page 7 (6) When the temperature of engine increase, pull back the wind-block door rod. See the arrow in the diagram. 4．Operating Methods of Generator In order to keep your generator in good condition, Please follow the rules: (1) Avoid improper operation, make sure to make your generator ground connection.
  • Page 8 (2) Electrical equipments, motor-driven devices will produce lots of electric current when they start. The following form will give you a reference when you connect them to generator.
  • Page 9 (3) When you connect more than two loads on the generator, please connect from high electric current to low electric current successively. When using extension lines or mobile distribution networks the total length of lines for a cross section of 1.5mm should not exceed 60m;...
  • Page 10 Notice: When you want to connect the generator to the family power, you should ask electricians to fix it. After connecting the load to the generator, check if the connection is right, otherwise it will cause damages of fires. All right Forbid All right...

  • Page 11: Stopping The Engine

    5. Stopping the engine. (1) Turn the AC circuit breaker to the OFF position. Turn the engine switch to the OFF position (3) Turn the fuel valve to the OFF position. Notice: If you want to stop the engine emergently, please turn the engine switch to “OFF”...

  • Page 12: Maintenance Notice

    6．Maintenance Notice: To maintenance of the large assembly, you need a professional. REGULAR SERBICE First Every Every Every PERIOD Perform at every indicated month 3 months 6 months year month or operating hour Daily interval, whichever occurs first ITEM 20 Hrs. 50 Hrs.

  • Page 13: Changing Oil

    (1) Changing oil Drain the oil while the engine is still warm to assure rapid and complete draining. 1. Remove the drain plug and filler cap, and drain the oil. Retighten the plug securely. 2. Refill with the recommended oil and check the level. OIL CAPACITY: 0.6L CAUTION: Used motor oil may cause skin cancer if repeatedly left in contact with the skin for prolonged periods.

  • Page 14: Air Cleaner Service

    (2) Air cleaner service A dirty air cleaner will restrict air flow to the carburetor. To prevent carburetor malfunction, service the air cleaner regularly. Service more frequently when operating the generator in extremely dusty areas. WARNING! Never use gasoline or low flash point solvents for cleaning the air cleaner element.

  • Page 15: Spark Plug Service

    (3) Spark plug service Recommended spark plug: BP6ES, SPR6ES (NGK) F6TC, F6RTC (LD) To ensure proper engine operation, the spark plug must be properly gapped and free of deposits. 1. Remove the spark plug cap. 2. Clean any dirt from around the spark plug base. 3.

  • Page 16: Fuel Filter Service

    6. Attach the plug washer and thread the plug in by hand to prevent cross threading. 7. After a new spark plug has been seated by hand, it should be tightened 1/2 turn with a wrench to compress its washer. If a used plug is being reinstalled, it should only require 1/8 to 1/4 turn after being seated.
  • Page 17 WARNING! After installing the filter cup, check for leaks and make sure the area is dry before starting the engine. 7．TRANSPORTING/STORAGE WARNING! When transporting the generator, turn the engine switch OFF and keep the generator level to prevent fuel spillage. Fuel vapor or spilled fuel may ignite.
  • Page 18 3. Slowly pull the starter grip until resistance is felt. At this point, the piston is coming up on its compression stroke and both the intake and exhaust valves are closed. Storing the engine in this position will help to protect it from internal corrosion.

  • Page 19: Troubleshooting

    8．Trouble shooting When the engine will not start:...
  • Page 20 No electricity at the receptacles: No electricity at the DC terminals...
  • Page 21 GASOLINE GENERATOR SET Type AG-HA-2500N AC voltage 230V/50Hz AC output: (COP) 2000W Power factor: 1.0 Speed 3000 r/min Performance class Quality class Weight 36kg Max. temperature: 40℃ IP23M Max. Altitude: 1000 m Bj2017 The figures quoted are emission levels and are not necessarily safe working levels. Whilst There is a correlation between the emission and exposure levels, this cannot be used reliably to determine whether or not further precautions are required.
  • Page 22 Meaning of crossed –out wheeled dustbin: Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities. Contact you local government for information regarding the collection systems available. If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the groundwater and get into the food chain, damaging your health and well-being.
