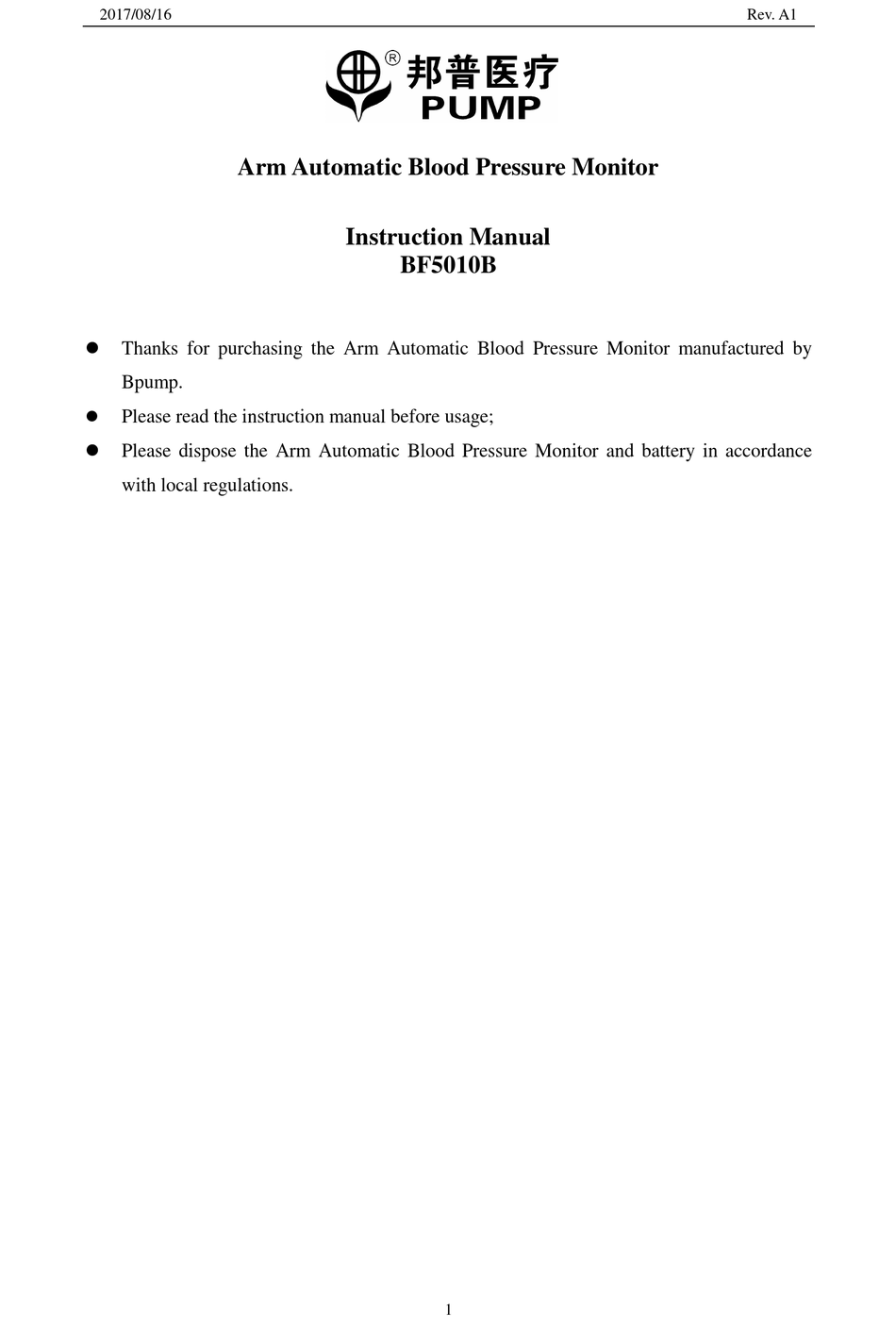

Arm Automatic Blood Pressure Monitor
Thanks for purchasing the Arm Automatic Blood Pressure Monitor manufactured by
Bpump.
Please read the instruction manual before usage;
Please dispose the Arm Automatic Blood Pressure Monitor and battery in accordance
with local regulations.
Instruction Manual
BF5010B
1
Rev. A1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BF5010B and is the answer not in the manual?

Questions and answers

Related Manuals for SHENZHEN PUMP MEDICAL SYSTEM BF5010B

Summary of Contents for SHENZHEN PUMP MEDICAL SYSTEM BF5010B

  • Page 1 2017/08/16 Rev. A1 Arm Automatic Blood Pressure Monitor Instruction Manual BF5010B  Thanks for purchasing the Arm Automatic Blood Pressure Monitor manufactured by Bpump.  Please read the instruction manual before usage;  Please dispose the Arm Automatic Blood Pressure Monitor and battery in accordance...

  • Page 2: Table Of Contents

    2017/08/16 Rev. A1 Table of Contents 1. Safety Information ....................3 1.1. Warning ..........................3 1.2. Contraindications ......................4 1.3. Care and maintenance ..................... 4 2. Product Feature ....................... 5 3. Power source ......................6 3.1 Battery ..........................6 3.2 Power Adapter（Optional） .................... 7 4.

  • Page 3: Safety Information

    2017/08/16 Rev. A1 1. Safety Information 1.1. Warning Self diagnosis and treatment which use measured results may be dangerous. Follow the instructions of your physician or licensed healthcare provider. If cuff inflation doesn’t stop, remove the cuff or power off the unit, otherwise, it may result in a hazard condition.

  • Page 4: Contraindications

    2017/08/16 Rev. A1 16) Adapter is considered as a part of me equipment during powered by adapter 17) Be careful not to rest your arm on the air tube. This will restrict the flow of air to the cuff. 18) Do not measurement too frequent, or else it may result in bruising where the cuff is applied.

  • Page 5: Product Feature

    2017/08/16 Rev. A1 and after maintenance and repair. 11) Do not disassemble or modify the structure of the unit and damage the safety performance. If you need service, please contact the manufacturer, the maintenance should be done by authorized persons of manufacturer. Maintenance of the necessary technical document, including the schematics, key components list and etc., will provided by the manufacturer for maintenance personnel.

  • Page 6: Power Source

    2017/08/16 Rev. A1 Model: BC× × × × Cuff Label Fig 2 Note: Symbol for‖TYPE BF APPLIED PART‖ Display Fig 3 3. Power source 3.1 Battery 3.1.1 Installation and replacement 1） Remove battery cover 2） Load 3 standard AA alkaline battery as indicated in figure below...

  • Page 7: Power Adapter（Optional

    2017/08/16 Rev. A1 Fig 4 3） Install back the battery cover 4） Replace the battery if low battery icon is displayed  If the battery symbol turn red and flicker, please replace with new batteries or connect the USB cable to use, otherwise the unit will not function properly. ...

  • Page 8: Clock Mode

    2017/08/16 Rev. A1 4. Clock mode With monitor power off, touch the 【 】 button into the clock mode, display the current time (hour/minute).(Fig5)  Under any mode, press and hold the 【 】button for 3 seconds will enter the clock mode. ...

  • Page 9: System Setting

    2017/08/16 Rev. A1 7. System Setting 7.1 User conversion The blood pressure monitor is capable to hold 2 sets of memory data. Select the correct user group before measurement. User conversion:  Under the first touch mode and standby mode, press the【Set】button will automatically change the user conversion either from user 1 or user 2.

  • Page 10: Take A Measurement

    2017/08/16 Rev. A1 Fig10 Fig11 Fig9 Fig8 Fig13 Fig16 Fig15 Fig14 Fig12  Time is set to 24 hours.  Press the 【 】button or unattended 20s during setting will stop setting and return standby mode.  When press the 【 】button to exit during setting, the items had been confirmed will be saved, the no confirmed items retain original status.

  • Page 11: Fitting The Cuff

    2017/08/16 Rev. A1 8.2. Fitting the cuff Plug in the air tube connector into the main unit Wrap the cuff around the upper left arm or upper right arm. Tighten the cuff around the arm, make sure the cuff is approximately 2cm～3cm (1in～2in) above the elbow.(Fig 17) Fig 17 Make sure cuff air tube outlet is facing your finger.
  • Page 12 2017/08/16 Rev. A1 For accurate result please relax, do not smoke, take deep breath, speak loudly or move around during the measurement. Press the 【 】 button under the first touch mode or standby mode to start the measurement. The display will turn to Fig 19, and the cuff begins inflating. When the device detects a pulse, the heart symbol will flash as shown on Fig 20.

  • Page 13: Mean Value

    2017/08/16 Rev. A1 WHO Blood pressure level Blood pressure range Severe hypertension (H3) Systolic≥180mmHg or/and Diastolic≥110mmHg Moderate hypertension (H2) Systolic≥160mmHg or/and Diastolic≥100mmHg Mild hypertension (H1) Systolic≥140mmHg or/and Diastolic≥90mmHg Prehypertension（ Pre.H） Systolic≥130mmHg or/and Diastolic≥85mmHg Normal (Norm) Systolic≥120mmHg or/and Diastolic≥80mmHg Optimal (Optm) Systolic <120mmHg and Diastolic <80mmHg Notes: ...

  • Page 14: Memory

    2017/08/16 Rev. A1 8.6. Memory The Memory 1 and Memory 2 can hold up to 60 readings each. Enter the memory reading mode. Press the 【 】 button to enter the memory reading mode. Read the memory values. Under the Memory reading mode, press 【►】button to view the latest value to the earliest value.

  • Page 15: Data Transmission

    2017/08/16 Rev. A1 9. Data transmission The Bluetooth function of Blood pressure monitor turns on automatically simultaneously with device’s powering on. 10. Power off （1）Under the clock mode, press the 【 】button for 3s. （2）Press and hold the 【 】button for 6s except the clock mode. （3）While completing the measurement or under the standby mode, without operation for 3min, the device will automatically shut off.

  • Page 16: Trouble Shooting

    （2） Record the variance and consult to the doctor *If the above suggestion doesn’t remediable, please consult the manufacturer. 13. Specification Arm automatic blood pressure Model BF5010B Description monitor Measuring Oscillometric Method Display LED Digital Display principle Pressure : ±...

  • Page 17: About Blood Pressure

    2017/08/16 Rev. A1 Altitude: ≤3000 m Environment Pressure:50.0kPa～106.0kPa 120 mm× 120mm× 40mm 380g (Not include batteies) Size Weight · Cuff Body 10000 times Life time · USB cable Contents (Body) · Storage case (Optional) Cuff 10000 times · Instruction Manual This unit is intended for home use and the specification may be changed without prior notice.

  • Page 18: What Is Morning Hypertension (Morning Surge)

    2017/08/16 Rev. A1 Category Systolic(mmHg) Diastolic(mmHg) 120 80 Desirable Normal 120-129 and/or 80-84 Pre hypertension 130-139 and/or 85-89 ≥140 and/or ≥90 Hypertension: Stage 1 Hypertension 140-159 and/or 90-99 Stage 2 Hypertension 160-179 and/or 100-109 ≥180 and/or ≥110 Hypertensive Crisis These categories were defined by the American Heart Association. This chart applies to adults age 20 and older.

  • Page 19: Fcc Statement

    2017/08/16 Rev. A1 of automated measurement type FCC Statement Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause...

  • Page 20: Explanation Of Symbols

    ·This product is medical device, to ensure the accuracy of the product when using it, we would like to continue to provide you with paid services after the guarantee periods. SHENZHEN PUMP MEDICAL SYSTEM CO., LTD. Certificate Product Name: Arm Automatic Blood Pressure Monitor...
