SHENZHEN PUMP MEDICAL SYSTEM BF5000B Instruction Manual

Arm automatic blood pressure monitor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

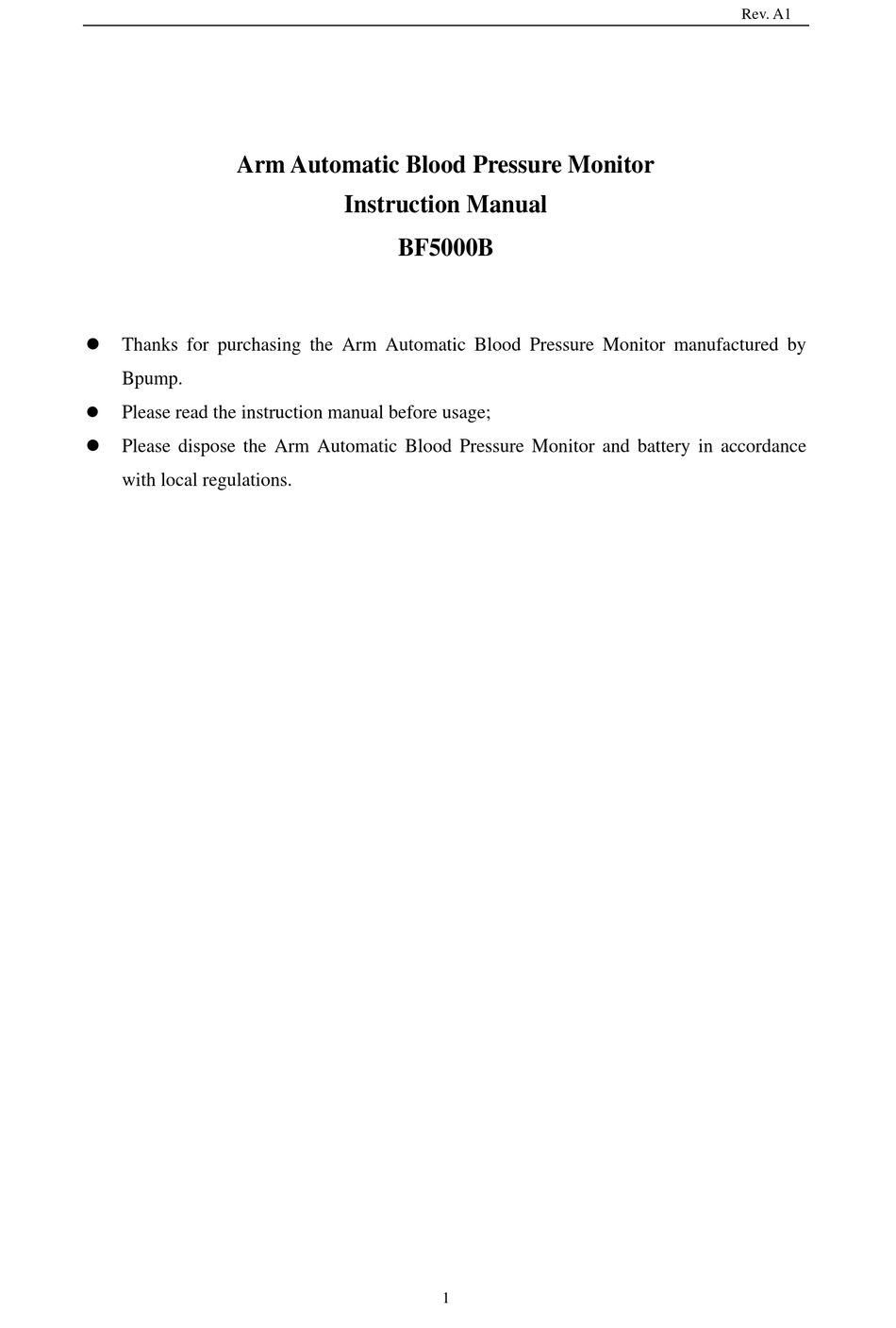

Arm Automatic Blood Pressure Monitor
Thanks for purchasing the Arm Automatic Blood Pressure Monitor manufactured by
Bpump.
Please read the instruction manual before usage;
Please dispose the Arm Automatic Blood Pressure Monitor and battery in accordance
with local regulations.
Instruction Manual
BF5000B
1
Rev. A1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BF5000B and is the answer not in the manual?

Questions and answers

Related Manuals for SHENZHEN PUMP MEDICAL SYSTEM BF5000B

Summary of Contents for SHENZHEN PUMP MEDICAL SYSTEM BF5000B

  • Page 1 Rev. A1 Arm Automatic Blood Pressure Monitor Instruction Manual BF5000B  Thanks for purchasing the Arm Automatic Blood Pressure Monitor manufactured by Bpump.  Please read the instruction manual before usage;  Please dispose the Arm Automatic Blood Pressure Monitor and battery in accordance...

  • Page 2: Table Of Contents

    Rev. A1 Table of Contents 1. Safety Information ....................3 1.1. Warning ..........................3 1.2. Contraindications ......................4 1.3. Care and maintenance ..................... 4 2. Product Feature ....................... 5 3. Power source ......................6 4. Clock mode ....................... 7 5. First touch mode ...................... 7 6.

  • Page 3: Safety Information

    Rev. A1 1. Safety Information 1.1. Warning Self diagnosis and treatment which use measured results may be dangerous. Follow the instructions of your physician or licensed healthcare provider. If cuff inflation doesn’t stop, remove the cuff or power off the unit, otherwise, it may result in a hazard condition.

  • Page 4: Contraindications

    Rev. A1 17) Do not measurement too frequent, or else it may result in bruising where the cuff is applied. 18) Do not apply the cuff over a wound or inflamed area. 19) Do not apply the cuff on the same limb where intravascular access or therapy or an arterio-venous (A-V) shunt is present, because of temporary interference to blood flow and could result in injury to the patient.

  • Page 5: Product Feature

    Rev. A1 should be done by authorized persons of manufacturer. Maintenance of the necessary technical document, including the schematics, key components list and etc., will provided by the manufacturer for maintenance personnel. 12) Care and maintenance of lithium battery: Please keep the unit away from the fire or heat source, do not put the waste of the ...

  • Page 6: Power Source

    Rev. A1 Model: BC× × × × Cuff Label Fig 2 Note: Symbol for‖TYPE BF APPLIED PART‖ Display Fig 3 3. Power source The device is power by lithium battery, and can be charge using USB cable.  Turn on the power switch when first used, the power switch is located at the back side of the device.

  • Page 7: Clock Mode

    Rev. A1  Do not plug in multiple plugs into same power outlet.  Use the manufacturer USB cable only.  If the battery is not charged when the low battery symbol is display ,the red battery symbol will continue display, and the device could not measure. The device will automatic shut off when the battery voltage is too low.

  • Page 8: Standby Mode

    Rev. A1 6. Standby mode Under the first touch mode, without operation 2s to enter the standby mode, which can automatically detect the current settings and display the Bluetooth symbol, Horn symbol, blood pressure unit and user group.（Fig6）  Press the 【 】button or without operation 20s during setting, memory and average value viewing will return to the standby mode.

  • Page 9: Take A Measurement

    Rev. A1 , press the 【◄】or【►】 button a) Continues the broadcast setting will automatically turn on or off the broadcast system as shown on Fig 12 or Fig 13. Press the 【 】button to confirm. Unit coversion (mmHg to kPa ). Press the 【◄】...

  • Page 10: Fitting The Cuff

    Rev. A1  Try not to take your blood pressure if you are nervous or upset. If we are nervous, anxious, or agitated our blood pressure will rise.  Rest for 5～10 minutes before taking a reading. Sit in a comfortable, relaxed position. Don't move around or talk while taking the blood pressure.

  • Page 11: Take Measurement

    Rev. A1 Fig 17 8.4. Take Measurement After setting and wearing the cuff, the unit is ready for measurement: For the most accurate result please relax, do not smoke, take deep breath, speak loudly or move around during the measurement. Press the 【...
  • Page 12 Rev. A1 Fig18 Fig19 Fig20 Fig21 8.4.1 The blood pressure level indicator Please refer to Table 1 for the blood pressure level classification and definition. Table 1 WHO Blood pressure level Blood pressure range Severe hypertension (H3) Systolic≥180mmHg or/and Diastolic≥110mmHg Moderate hypertension (H2) Systolic≥160mmHg or/and Diastolic≥100mmHg Mild hypertension (H1)

  • Page 13: Average Value

    Rev. A1 (4) ―Your diastolic pressure is‖ + measured diastolic value + ―Millimeter of mercury/Kilopascal.‖; (5) ―Your pulse is‖ + measured pulse value + ―pulse per minute.‖; (6) ―According World Health organization standard, your blood pressure level optimal/normal/pre_hypertension/mild_hypertension/ moderate_hypertension/severe_hypertension.‖; (1) ―Your average for the last three times:‖; (2) ―Your systolic pressure is‖...

  • Page 14: Memory

    Rev. A1 mode, press down the 【 】button exceed 6s to shut off the unit. 8.6. Memory The Memory 1 and Memory 2 can hold up to 60 readings each. Enter the memory reading mode. Press the 【 】 button to enter the memory reading mode. Read the memory values.

  • Page 15: Data Transmission

    Rev. A1 9. Data transmission The Bluetooth function of Blood pressure monitor turns on automatically simultaneously with device’s powering on, which can be searched by corresponding app used for physiological indexes management on Mobile phone for data transportation. 10. Power off （1）Under the clock mode, press the 【...

  • Page 16: Environment Protection

    Affect the measurement results.  Low battery will lead to inaccurate measurement results .  May cause battery leakage, environment pollution. 14. Specification Arm automatic blood pressure Model BF5000B Description monitor Measuring Oscillometric Method Display LED Digital Display principle Pressure : ± 3mmHg (± 0.4kPa)
  • Page 17 Rev. A1 electric shock Mode of Applied part Cuff Continuous operation Temperature:-25℃～+70℃； Temperature:+5℃～+40℃； Storage Operating Humidity:15%～93% transport Humidity:10%～95% Environment Pressure: 70.0kPa～106.0kPa Environment Altitude: ≤3000 m Pressure:50.0kPa～106.0kPa 382g Size 120 mm× 120mm× 40mm Weight · Cuff Body 10000 times · USB cable Life time Contents (Body)

  • Page 18: About Blood Pressure

    Rev. A1 Disposal This product must not be disposed together with the domestic waste. All users are obliged to hand in all electrical or electronic devices, regardless of whether or not they contain toxic substances, at a municipal or commercial collection point so that they can be disposed of in an environmentally acceptable manner.

  • Page 19: What Is Morning Hypertension (Morning Surge)

    Rev. A1 Stage 2 Hypertension 160-179 and/or 100-109 ≥180 and/or ≥110 Hypertensive Crisis These categories were defined by the American Heart Association. This chart applies to adults age 20 and older. 8.3. What is morning hypertension (morning surge)? Morning high blood pressure or morning surge is defined as the weekly average for morning blood pressure reading measured within 1 hour to 2 hours after awakening in the morning and exceeding 135/85mm Hg.

  • Page 20: Blood Pressure Measurement Chart

    Rev. A1 Blood Pressure Measurement Chart Date Time SYS/DIA Pulse Remark Date Time SYS/DIA Pulse Remark Guarantee Card Product Model Product SN Date of Purchase Distributor Customer Name Address Details of the faults: Warranty Rule ·The unit of this product is guaranteed by PUMP for a period of 1year after the date of purchase.

  • Page 21: Explanation Of Symbols

    Symbol for ―IP classification ‖ IP21 Symbol for ―AUTHORISED REPRESENTATIVE IN THE EUROPEAN COMMUNITY‖ After-Sale Service Manufacturer: Shenzhen Pump Medical System Co., Ltd. Address: 2/F, M-7 Sinosteel Building, Maqueling Estate, Hi-Tech Industrial Park, Nanshan District, 518057 Shenzhen, PEOPLE’S REPUBLIC OF CHINA Tel:86-755-26710795/26067119 Fax:86-755-26012025 Service Line:86-4006 755 009 E-mail: service@bpump.com.cn...
