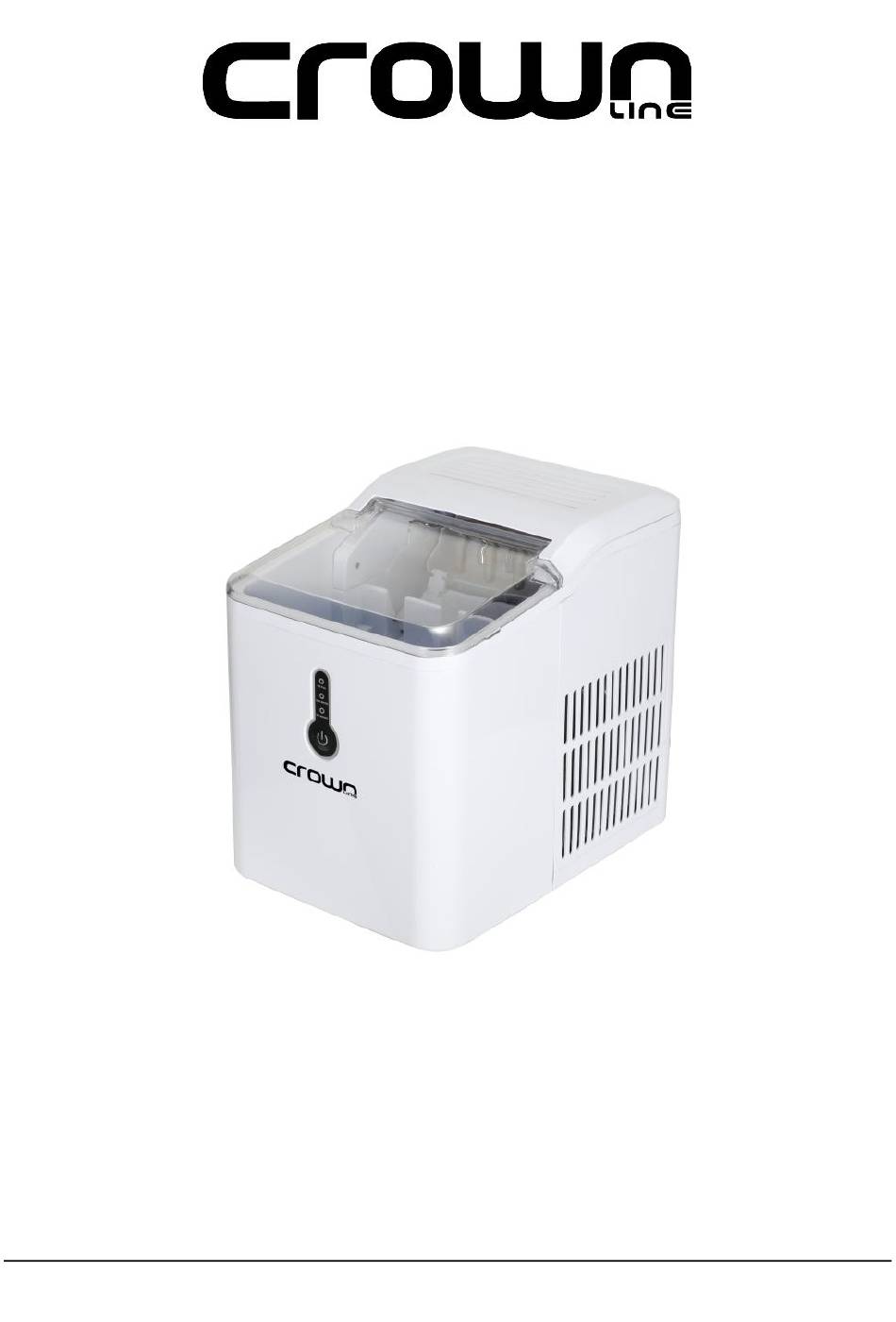

- Page 1 INSTRUCTION MANUAL ICE MAKER Model: IM-262 THANK YOU FOR CHOOSING OUR ICE MAKER PLEASE READ THE MANUAL CAREFULLY BEFORE OPERATING...
-
Page 2: Important Notices
IMPORTANT NOTICES When using an electrical appliance, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury, including the following: 1. Read all instructions before using. 2. Remove all packing material and carefully check your ice maker to ensure it is in good condition and that there is no damage to the ice maker or power cord and plug. - Page 3 supervised to ensure that they do not play with the appliance. 13. Do not use the appliance close by flames, hot plates or stoves. 14. Do not switch on the power button frequently (ensure 5min. interval at least) to avoid the damage of compressor. 15.
-
Page 4: Specifications
SPECIFICATIONS Model number：IM-262 Daily ice output：12kg / 24 hours Ice storage capacity：1.5L/600g Refrigerant：R600a Compression-type refrigeration:220-240V/50Hz Water tank capacity：1.5 L Voltage: 220-240V Frequency: 50 Hz Power consumption: 120 W Max overall dimensions(W×D×H)：224X 308X283mm Packing dimensions(L×W×H)： 342X 260X 328mm N.W： G.W：... - Page 5 DESCRIPTION ⒒ ⑩ ⒓ ⑨ ⑧ ⒔ ⑦ ⑥ ⒕ ⑤ ⒖ ④ ③ ② ① 1. Micro switch support 11. Top cover 2. Evaporator 12. Transparent lid 3. Water Tray 13. Motor Mount 4. Ice shovel board 14. Back housing 5.
- Page 6 FEATURE Quick ice making Prompt when the ice is full and water is insufficient Bullet ice 9 pcs ice can be made in eight minutes 1. During transportation, do not tilt the machine more than 45 degrees, do not reverse the machine.
-
Page 7: Control Panel Operation
CONTROL PANEL OPERATION ICE FULL: Ice full alarm ADD WATER: Water shortage alarm ICE MAKING: Ice making 1). Plug in the power, the "ICE MAKING " indicator flashes, and the machine will start the deicing function. Press the power button, the "ICE MAKING"... - Page 8 ICE FULL: Ice full alarm When the ice reaches the maximum capacity of the ice storage container, the "ICE FULL" light flashes, and the machine stops. At this time, the ice needs to be poured out. When the ice position is lower than the full sensor position, the machine will restart automatically.
- Page 9 degrees, it is recommended to choose big ice. 2. The three cycles used for the first time, the ice produced is small and irregular. 3. When the ice basket is full, please take out the ice immediately, do not let the ice overflow the ice basket CLEANING &...
-
Page 10: Troubleshooting
TROUBLESHOOTING Please note, if a power failure occurs due to disconnection of the power cord, or the power button has been pushed off during an ice making cycle, small ice chips may formed and lodge in the automatic shovel causing it to jam. If this occurs, the ice chips may be removed by disconnecting the power cord and gently pushing the shovel to the rear of the cabinet and removing the ice chips, then restarting. - Page 11 Fan motor damaged Unplug the power to take out the ice Water tray is blocked by ice All indicators twinkle which blocking the tray, then plug the cube simultaneously power and press the POWER button, the machine will restart 3mins later. The machine has been working, but the water Solenoid broke down...
- Page 12 Correct Disposal of this product This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources.
