XP High Pressure Dampeners
XPB, XPHB & XPXB Models
Installation and Operation Manual

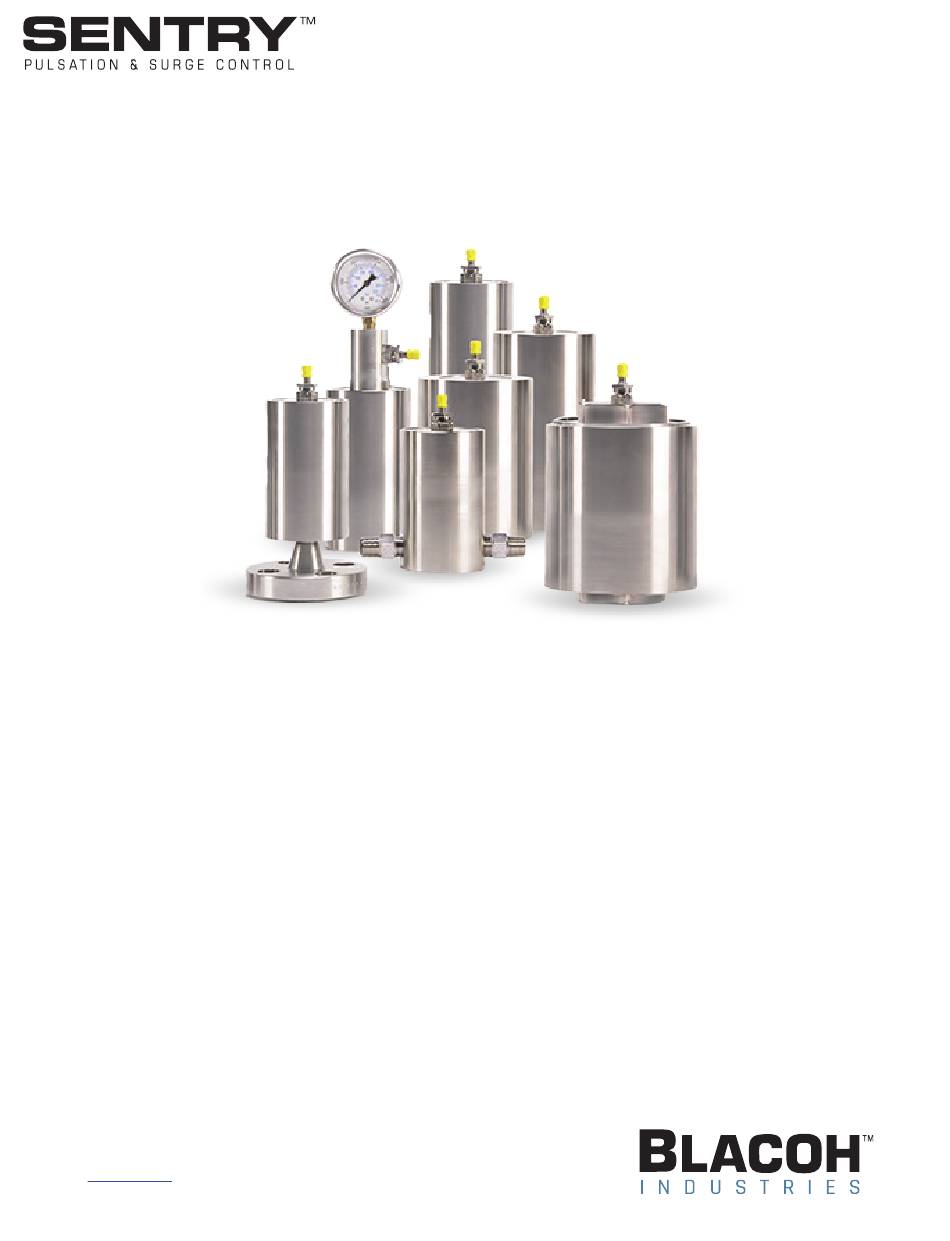

SENTRY™ dampeners are pressure vessels containing a flexible bladder or bellows inside that separates an inert pressurized gas
(air or Nitrogen) from a system fluid in the lower chamber. Depending on how dampeners are configured, they are used as Pulsation
Dampeners, Inlet Stabilizers or Surge Suppressors to control pressure fluctuations and spikes in liquid piping systems.
Dampeners work on the principle that volume is inversely proportional to pressure (P
V
=P
V
). Compressed air or Nitrogen (never
1
1
2
2
Oxygen) is introduced into the non-wetted side of the dampener. The gas charge is contained by the bladder or bellows preventing
contact between the system fluid and the gas.
When the dampener is sized correctly, properly installed and charged according to the instructions provided it will greatly reduce the
damaging effects of pressure variations in piping systems and significantly improve the efficiency of transferring liquids.
All dampeners manufactured by BLACOH use pressure bodies made in the USA to ensure quality. Prior to shipment, each
and every dampener is factory pressure tested to assure proper function and leak-free operation.
Visit
Blacoh.com
for literature in multiple languages.
Advertisement
Table of Contents
Related Manuals for Blacoh Sentry XPB
Summary of Contents for Blacoh Sentry XPB
- Page 1 All dampeners manufactured by BLACOH use pressure bodies made in the USA to ensure quality. Prior to shipment, each and every dampener is factory pressure tested to assure proper function and leak-free operation.
-
Page 2: Table Of Contents
“bellows” refers to both PTFE and Stainless Steel metal bellows. Copyright © 2022 BLACOH Fluid Controls, Inc. All rights reserved. Information in this document is subject to change without notice. No part of this publication may be reproduced, stored in a retrieval system or transmitted in any form or by any means electronic or mechanical, including photocopying and recording for any purpose other than the purchaser’s personal use without the express... -
Page 3: Safety Warnings
Failure to charge may result in damage to the bladder or bellows. GENERAL Information For safe and satisfactory operation of dampener read all safety warnings, caution statements and this complete Manual before installation, startup, operation or maintenance. BLACOH Industries... -
Page 4: Must Read Before Installation
A BLACOH back pressure valve may be required downstream of dampener, except when dampener is used as an inlet stabilizer for the inlet side of the pump. It is recommended that a BLACOH pressure relief valve be installed in all pump systems to ensure compliance with pressure limits on system equipment. -
Page 5: Temperature Limits
Excellent for applications pumping frigid and molten fluids, outdoor applications in SS w/Gaskets* -200°F to +800°F (-129°C to +426°C) extreme temperatures, chemical applications where elastomers or PTFE would fail. * Contact Blacoh for more information regarding temperatures below -200°F (-129°C). [T22E11_030] BLACOH Industries... -
Page 6: Installation & Operation Instructions
7. Turn off valve at Nitrogen source and slowly loosen charging hose connection to charging valve or, if used, slowly open bleed valve on BLACOH charging hose manifold. Wait to let all pressure in charging hose escape. It will take up to one minute to release all pressure in charging hose. -
Page 7: Pressure Seal Check
Turn off the pumping system and repeat the steps in the Charging Instructions section above, making certain dampener charge is at 80% of system pressure. Note: Dampener pressure charge may need to be adjusted slightly above or below the 80% level to maximize performance. BLACOH Industries... -
Page 8: Maintenance, Inspection & Repair
Insert rod or heavy duty screwdriver with long shank between the two bolts and remove cap by turning counterclockwise (Figure 3). Dual Cap Model. Use appropriate tool to remove both hex nut caps by turning counterclockwise. 7. Inspect dampener bladder/bellows and O-rings, and replace as needed. Consult factory for replacement parts. BLACOH Industries... - Page 9 Figure 5 Single Cap PTFE Bellows Model Figure 4 Single Cap Elastomer Bladder Model Charging Valve Charging Valve Safety Wire Bolt Safety Wire Bolt Non-wetted Cap Non-wetted Housing Elastomer Bladder Rubber O-Ring PTFE Bellows Wetted Housing Anti-extrusion Button PTFE Encapsulated O-Ring Wetted Cap BLACOH Industries...
- Page 10 Safety Wire Bolt Eye Bolts Eye Bolts Charging Valve Charging Valve Non-wetted Cap Non-wetted Cap O-Ring Elastomer Bladder Anti-extrusion Button Housing O-Ring Housing PTFE Bellows Anti-extrusion Button O-Ring Wetted Cap Wetted Cap Safety Wire Bolt Safety Wire Bolt BLACOH Industries...
- Page 11 Tighten safety wire bolt(s) to secure. Bend wire ends back and down so sharp ends do not protrude. Figure 8 Safety Wire & Bolts Single Cap Model Single Cap Model Dual Cap Model Dual Cap Model Non-wetted Cap Non-wetted Housing Non-wetted Cap Wetted Cap BLACOH Industries...
-
Page 12: Gauge Adapter Assembly Installation
Ensure no slack in full length of safety wire. Tighten safety wire bolt(s) to secure. Bend wire ends back and down so sharp ends do not protrude. Reinstall cap eye bolts (dual cap models only). Manufacturer’s Limited Warranty & Return Policy Details regarding warranty and return policy are available on Blacoh’s website at www.Blacoh.com BLACOH Industries... - Page 13 Pulsation Dampeners & Surge Suppressors High Pressure Dampeners Inlet Stabilizers Sanitary Dampeners Accumulators PROUDLY MANUFACTURED IN THE USA Blacoh Headquarters − Offices Worldwide 601 Columbia Ave, Bldg D, Riverside, CA 92507 USA 951.342.3100 Sales@Blacoh.com Blacoh.com M28E11_093...
