Summary of Contents for Kyocera BDX-2

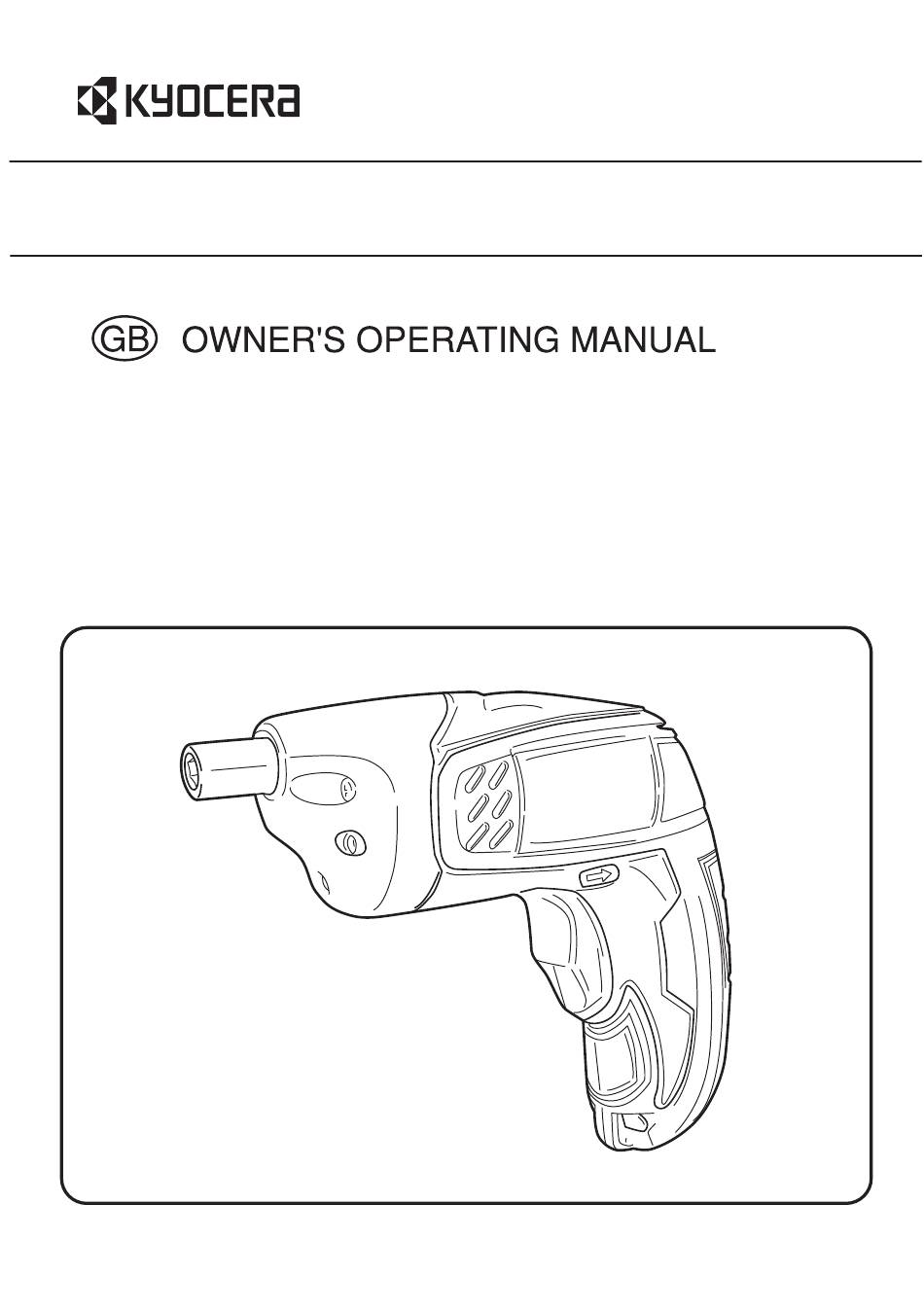

- Page 1 BDX-2 69800946-00 STD 07-21...
- Page 2 ...
- Page 3 ...
- Page 4 ...
- Page 5 THANK YOU FOR BUYING OUR PRODUCT. To ensure your safety and satisfaction, carefully read through this OWNER’S MAN- UAL before using the product. General power tool safety warnings WARNING Read all safety warnings, instructions, illustrations and speci- fications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.
- Page 6 b) Use personal protective equipment. Always wear eye protection. Protec- tive equipment such as a dust mask, non-skid safety shoes, hard hat or hear- ing protection used for appropriate conditions will reduce personal injuries. c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool.
- Page 7 5) Battery tool use and care a) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack. b) Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
-
Page 8: Disposal Of The Exhausted Battery
INSTRUCTIONS FOR SAFE HANDLING 1. Make sure that the tool is only connected to the voltage marked on the name plate. 2. Never use the tool if its cover or any screws are missing. If the cover or screws have been removed, replace them prior to use. Maintain all parts in good working order. -
Page 9: Specifications
SPECIFICATIONS Applicable driver bit Hex. 6.35mm Screwing capacity Maximum torque 3.5 N Voltage DC 3.7 V Battery type Li-ion ( 1 cell ) 1,500mAh Charging time Approx. 5hours No Load speed 180 min Overall length 150 mm Net weight 0.35 kg STANDARD ACCESSORIES Driver bit (16pcs.), Charger, Charging stand APPLICATIONS... -
Page 10: Overload Protection
MOUNTEING THE BIT (Fig.3) Insert the driver bit (9) directly into the hexagon collet. TRIGGER (Fig.4) This tool is started and stopped by pressed and releasing the trigger (5). This tool is equipped with dual LEDs (6) to illuminate the tip of a bit. LED is lit by pressing the trigger. -
Page 11: Maintenance
MAINTENANCE After use, check the tool to make sure that it is in top condition. It is recommended that you take this tool to an Authorized Service Center for a thor- ough cleaning and lubrication at least once a year. DO NOT MAKE ANY ADJUSTMENTS WHILE THE MOTOR IS IN MOTION.
