Hydra ZODIAC Quick Installation Manual

Electric vehicle charger

Hide thumbs Also See for ZODIAC:

Table of Contents

Download this manual

INSTALLATION USING QUICK-CONNECT FLY LEAD

PLEASE NOTE: THE ZODIAC HAS BEEN DESIGNED TO BE CONNECTED USING THE QUICK-CONNECT FLY LEAD. THIS SIMPLIFIES

THE INSTALLATION PROCESS AND ENSURES THE ELECTRONIC COMPONENTS WITHIN THE EV CHARGER HOUSING ARE NOT

DISTURBED. IT ALSO ALLOWS THE ZODIAC TO BE WALL OR PEDESTAL MOUNTED BEFORE IT IS CONNECTED TO THE AC SUPPLY.

Secure the base to the wall. NB: To avoid the back plate distorting when being screwed onto the wall, it is

recommended that you fix each screw loosely one at a time and then tighten slowly once all screws are in place.

Carefully and slowly lower the charger into place.

Ensure that the cabinet holes and bolts are aligned.

Lock the nuts to 95.5 Nm.

Keep the device upright – do not tilt more than ±15°

Mount the charging pile on the hanger and lock the charging pile

Wall fixing bolts

(using suitable rawlplugs

where appropriate)

HYDRA EVC LTD | ✆ 01268 205 121 | www.hydraev.co.uk | support@hydraev.co.uk

This is a quick-connection

guide only. To view the full

installation manual for this

and all Hydra EV chargers

go to www.hydraev.co.uk/support

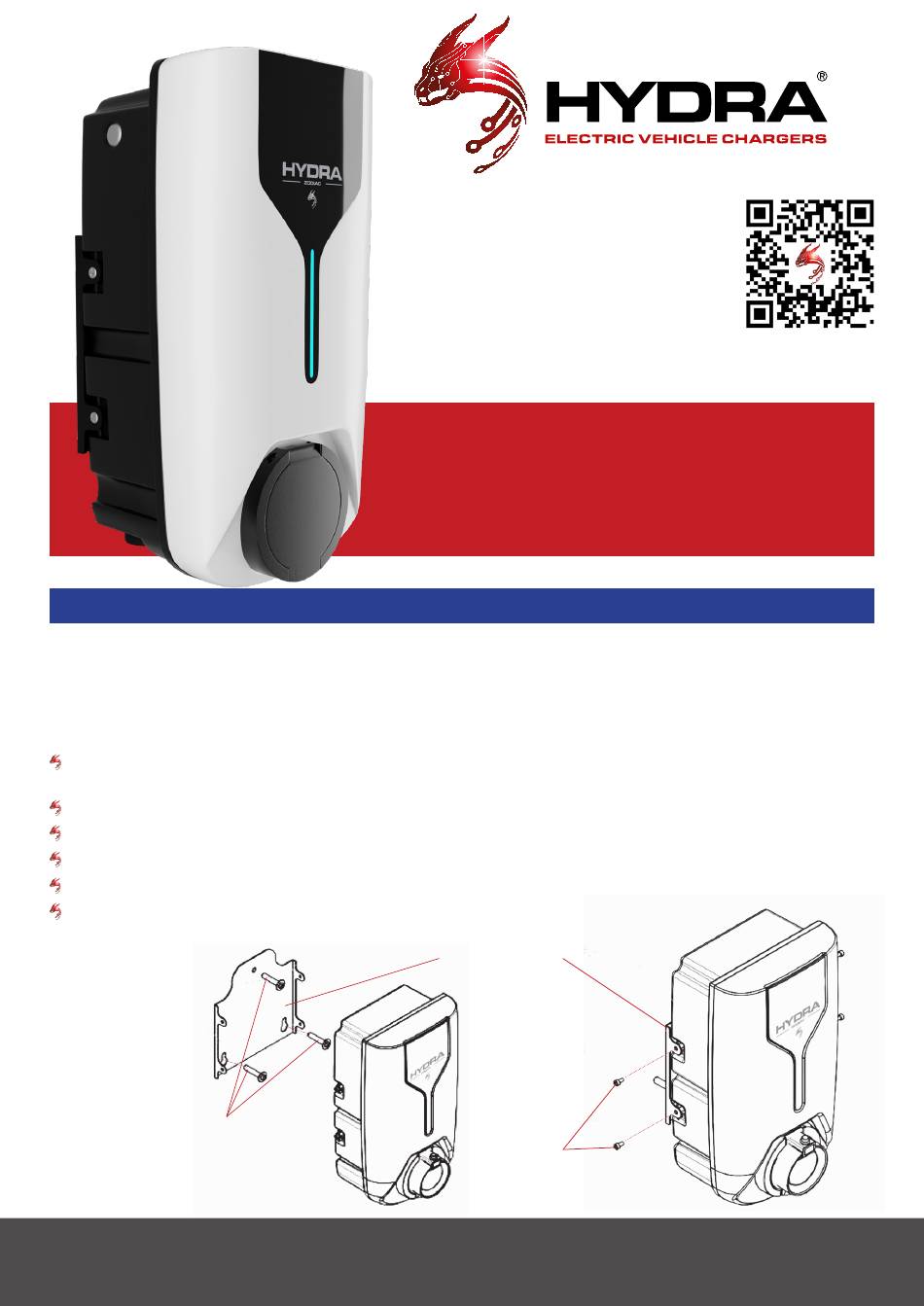

ZODIAC

ELECTRIC VEHICLE CHARGER

QUICK INSTALLATION GUIDE

Mounting backplate

Mounting

screws

Table of Contents

Do you have a question about the ZODIAC and is the answer not in the manual?

Page 1 PLEASE NOTE: THE ZODIAC HAS BEEN DESIGNED TO BE CONNECTED USING THE QUICK-CONNECT FLY LEAD. THIS SIMPLIFIES THE INSTALLATION PROCESS AND ENSURES THE ELECTRONIC COMPONENTS WITHIN THE EV CHARGER HOUSING ARE NOT DISTURBED. IT ALSO ALLOWS THE ZODIAC TO BE WALL OR PEDESTAL MOUNTED BEFORE IT IS CONNECTED TO THE AC SUPPLY. INSTALLATION Secure the base to the wall.
Page 2 1.5 times the actual load capacity. Please ensure the The Zodiac has its own dedicated circuit – EV charging equipment in the UK is required by law to have its own dedicated circuit.
Page 3 For the three-phase Hydra Zodiac (below right) each CT clamp needs to be re-attached to the correct feed and with the correct orientation (black/red wire facing the board).
Page 4 Ensure that the charger is installed properly and attached securely to the wall. Check that the wires are wired correctly and the charger can be powered up. After the Zodiac charger is powered up the LED indicator light on the faceplate should be blue, either flashing or steady and constant.
