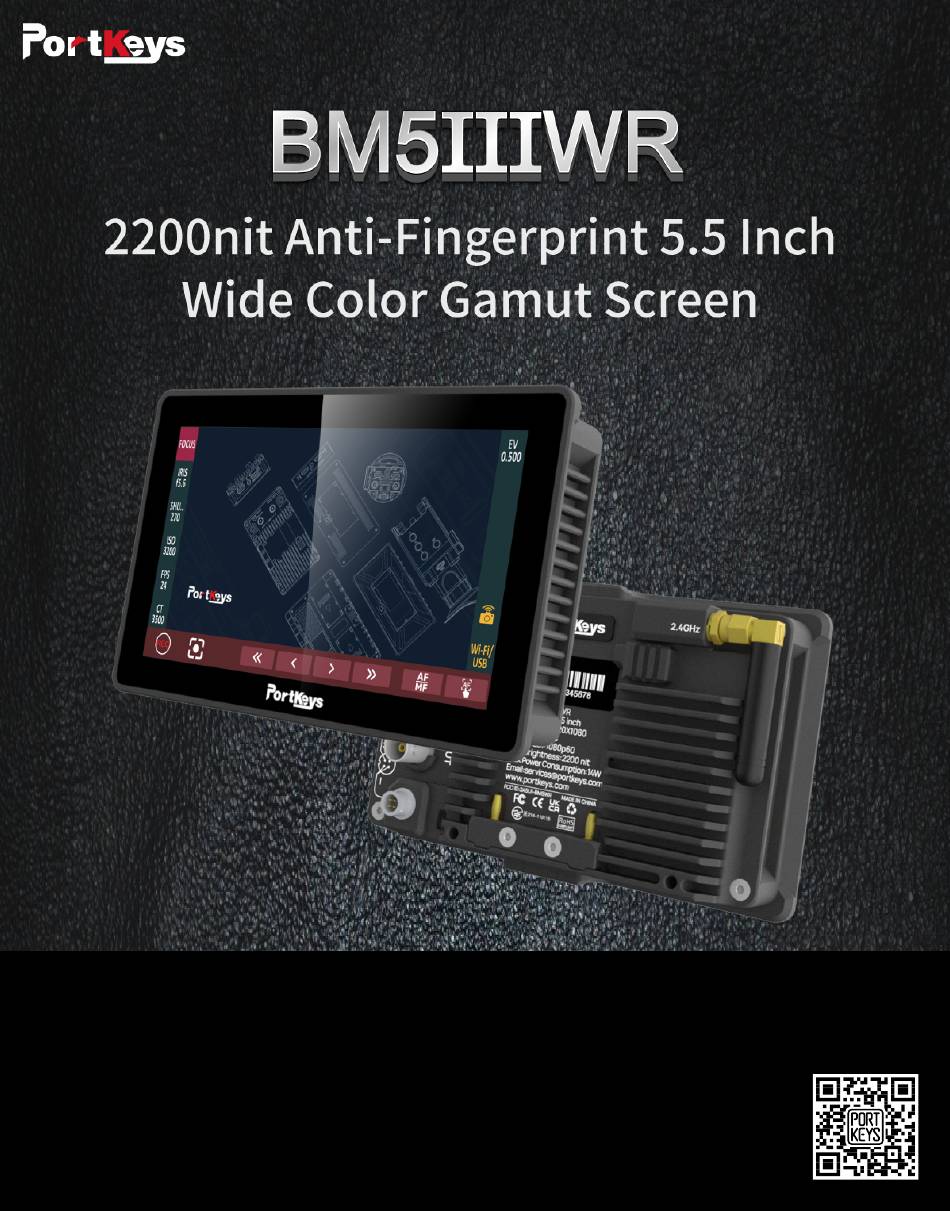

- Page 1 Service Hotline： 18820958861 Email： services@portkeys.com Website： www.portkeys.com Company Address： 1406, 14th Floor, Block D, Building 3, Cloud Park, Longgang District, Shenzhen, Guangdong, China Factory Address： 2nd Floor, Building A, Jingjiang Industrial Park, NO.101, Shangwei Road, Longhua District, Shenzhen,Guangdong, China...
-
Page 2: Table Of Contents
Contents Product Information Product Introduction Packing List Basic Parameters Signal Specifications Function Interface Function Interface Gesture Switching Function Introduction Custom Function Keys Settings Basic Operation Settings Interface Settings Interface Gesture Switching Image Settings Signal Source Settings LUT Output Settings Image and Menu Flip Settings System Settings 3D LUT Settings Volume Settings... -
Page 3: Product Information
Product Information Product Introduction 5.5” 91.4MM 145.4MM EXIT / Long press for 3 seconds to switch the state of touch control 37.8MM Sliding Menu Custom Function Keys Indicator 2.4GHz Focus Follow Battery Plate Antenna Control Interface Lock SDI Input/ Output 7-24V Power Terminal Power USB Upgrade... -
Page 4: Packing List
Product Information Packing List WR Monitor X1 Power Cord 1m (Aviation LANC Control Cable 0.4m X1 Connector - D-TAP) X1 TYPE-C Control Cable 0.4m X1 Power Cord 0.4m (Aviation Warm Prompt Card X1 Connector - DC) X1 Safety Box X1 U Disk（Manual，3D LUTs，... -
Page 5: Basic Parameters
Product Information Basic Parameters Size 5.5" Dimension 145.4x91.4x37.8mm Viewing Angle 178°H/178°V Brightness 2200nit Resolution 1920x1080 Contrast Ratio 1000:1 Weight 383g Color 10bit(8+2 FRC) Backlight WLED Material Aluminum Alloy + Toughened Glass Input Voltage DC 7~24V Max Power Signal Input 3G SDI、 HDMI Signal Output 3G SDI Headphone... -
Page 6: Signal Specifications
Product Information Signal Specifications Supported input resolution and frame rate HDMI Signal 1920×1080p@23.97Hz,24Hz,25Hz,29.97Hz,30Hz,50Hz,59.94Hz,60Hz 1920×1080psf@23.97Hz,24Hz,25Hz,29.97Hz,30Hz 1920×1080i@50Hz,59.94Hz,60Hz 1280×720p@50Hz,59.94Hz,60Hz 720×576p&720×576i@50Hz 720×480p&720×480i@50Hz,59.94Hz,60Hz Supported input/output resolution and frame rate SDI Signal 1920×1080p@50fps,59.94fps,60fps 1920×1080p@50Hz,59.94Hz,60Hz YUV422 1920×1080p@23.98Hz,24Hz,25Hz,29.94Hz,30Hz YUV444/YUV422/RGB444 1920×1080psf@23.98Hz,24Hz,25Hz,29.97Hz,30Hz YUV444/YUV422/RGB444 1920×1080i@50Hz,59.94Hz,60Hz YUV444/YUV422/RGB444 1280×720p@50Hz,59.94Hz,60Hz YUV444/YUV422/RGB444 720×480i@59.94Hz YUV422 720×576i@50Hz YUV422... -
Page 7: Function Interface
Function Interface Brightness Contrast Chroma Sharpness Tint [Function interface gesture switching] Swipe right on any interface to adjust to the function setting interface; HDMI Off 8.1V (the function setting interface) -
Page 8: Function Introduction
Function Interface 8.1V HDMI Off [Function Introduction] Software Function； Add Function Icon; Switch HDMI/SDI Signal; 3D LUT ON/OFF; Screen Brightness (1-10); Fan Strength (Low /High); Battery Level;... -
Page 9: Custom Function Keys Settings
Function Interface Check Guides Cross Hair Grids Peaking False Color Field Zebra UnderScan VectorScop Luma Luma Histogram Histogram Waveform Waveform Time Code Audio HDR(HLG) 3D LUT Waveform （All） Meters Image Image Image Crop Capture Overlay ( Picture 1 ) [Custom Function Keys Settings] 1. -
Page 10: Basic Operation
Function Interface [Basic Operation] Long press “ ” ， the function parameter setting shows at the bottom(Picture Check Field ( Picture 5 ) Swipe the icon “ ” to the right and enter the function menu, you could replace or delete functions(Picture 8.1V HDMI... -
Page 11: Settings Interface
Setting Interface 8.1V HDMI Off [Settings interface gesture switching] Swipe left on any interface to adjust to the system settings interface； Brightness Contrast Chroma Sharpness Tint ( the system settings interface) -
Page 12: Image Settings
Setting Interface Brightness Contrast Chroma Sharpness Tint 1.00X 6500K Anamorphic Backlight Color Temperature [Image Settings] 1. Click “ ” ； Parameter setting information； Parameter setting information(Next page )； Display the number of the page of Image parameter setting; Swipe left or right in the bottom information area to switch pages；... -
Page 13: Signal Source Settings
Setting Interface HDMI [Signal Source Settings] 1. Click “ ” ； Signal source setup information；... -
Page 14: Lut Output Settings
Setting Interface Auto Output Load LUT Out 1080P->I 3G LevelA/B Out [LUT Output Settings] 1. Click “ ” ； LUT output and 1080P->I and other setting information；... -
Page 15: Image And Menu Flip Settings
Setting Interface Display Flip Mode H Flip V Flip Osd Flip Mode H Flip V Flip [Image and Menu Flip Settings] 1. Click “ ” ； Image and menu flip setting information；... - Page 16 设置界面 English After LUT OSD-Language OSD-Transparancy System Reset Detect Data Source Screen Color Cali.. Black Level Gesture Zooming [System Setting] 1. Click “ ” ； System parameter setting information; System parameter setting information(Next page);...
- Page 17 Setting Interface Stored from USB USB Looks Reset LUT 3D LUT [3D LUT Setting] 1. Click “ ” ； 3D LUT setting information；...
- Page 18 Setting Interface Volume [Volume Setting] 1. Click “ ” ； Volume information；...
-
Page 19: Version Settings
Setting Interface BM5-V3WR.15.43.C18.B23 Version Information Update （ USB） [Version Setting] 1. Click “ ” ； View version information and upgrades；... -
Page 20: Camera Control Interface
Camera Control Interface HDMI Off 8.1V [Camera control interface gesture switching] Swipe down on any interface can be adjusted to the camera control settings interface； CxxxLong10toRec.. Wi-Fi / USB Z CAM E2(LANC) BMPCC(BLE) BMPCC(LANC) Canon(LANC) (the camera control settings interface) -
Page 21: Camera Model Settings
Camera Control Interface Wi-Fi / USB Z CAM E2(LANC) BMPCC(BLE) BMPCC(LANC) Canon(LANC) [Camera Model Setting] 1. Click “ ” ; Camera model options： Wi-Fi/USB、 Z CAM E2(LANC)、 BMPCC4K(BLE)、 BMPCC(LANC)、 Canon(LANC)、 Sony(MUTI)、 Sony(LANC)、 Panasonic （ Remote） . Currently selected “Wi-Fi/USB” Display the number of the page of camera brands.Swipe left or right in the bottom information area to switch pages;... -
Page 22: Bluetooth Connection
Camera Control Interface 4K DCI 4096×2160 Bmpcc My device Add new device Disconnect [Bluetooth Connection] 1. Select “ BMPCC4K(BLE)” ; 2. Click “ ” ; Select “ ” ， For bluetooth connection(Record of My device successful bluetooth connection); Select “ ”... -
Page 23: Function Usage
Camera Control Interface 4K DCI 4096×2160 Bmpcc FOCUS [Function Usage] 1. Click “ ” ; Adjust the parameter on the progress bar; Record;... -
Page 24: Wifi Connection
Camera Control Interface [Wi-Fi Connection] On the KOMODO camera, go to the Main menu, find Communication, select Wi-Fi, and then enable" Ad-Hoc". Make sure that the SSID setting starts with "KOMODO" or "komodo" and the frequency band is "2.4GHz"; Select the "Wi-Fi / USB"... -
Page 25: Motor Control Interface
Motor Control Interface HDMI Off 8.1V [Motor control interface gesture switching] Swipe up on any interface can be adjusted the motor control settings interface； NO： 1 NO： 2 NO： 3 (the motor control settings interface) -
Page 26: Motor Control
Motor Control Interface NO： 1 NO： 2 NO： 3 [Motor Control] 1. Click to select channel options “ ” ； Select the channel option to set the channel parameters； Record； Adjust the motor stroke；... -
Page 27: Warnings
Warnings Warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user’ s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
