LED Lights Canada SP105E Manual

SP105E Digital Bluetooth Controller
App: Magic LED
[1] Contents

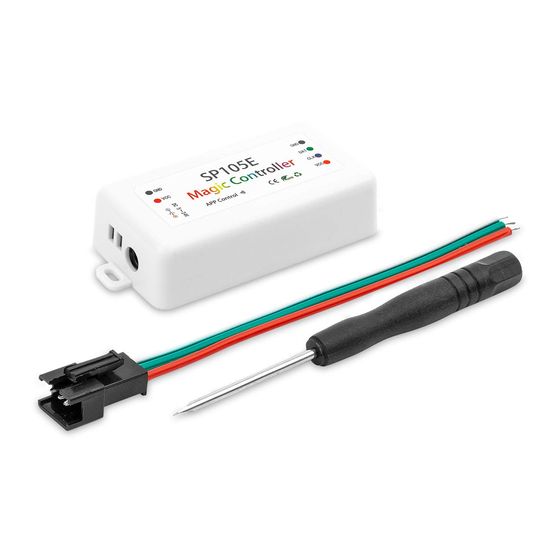

SP105E digital Bluetooth controller
Small flat head screwdriver

Wiring

2.1. To get started, unravel the LED strip from the roll. Connect the wires to the terminals in the controller
and tighten the screws to secure the connection. ​ ( Figure 1.)
Please be aware of the arrows on the flex strip. The direction indicates the flow of current. Make
sure that you are connecting from the back end of the arrow. Reversing this will result in the strip
not to illuminate.
2.2. You can now connect the driver into the controller as shown in ​ F igure 2.​ :
2.3. To confirm that all of your connections are successful, supplying 110V AC power to the driver should
result in the flex strip lighting up. If your lights are illuminated, please proceed.

[3] App Download and Setup

3.1. Download ​ M agic-LED
that your device's Bluetooth is turned on for Step 3.2.
3.2. Launch the app. The app will instantly display all available bluetooth devices. Select ​ S P105E​ . When
the connection is successful, the top of the next page should indicate that the controller is ​ C onnected​ .
LED Lights Canada
4404 97 St NW
Edmonton, AB T6E 5R9
​ f rom your device's app store (Google Play or App Store). Please ensure
​ 1
SKU:CTR700
The SP108E can control up to 2048 pixels.
This can be done by running the
in series from the end of the first strip to the
beginning of the last flex strip.

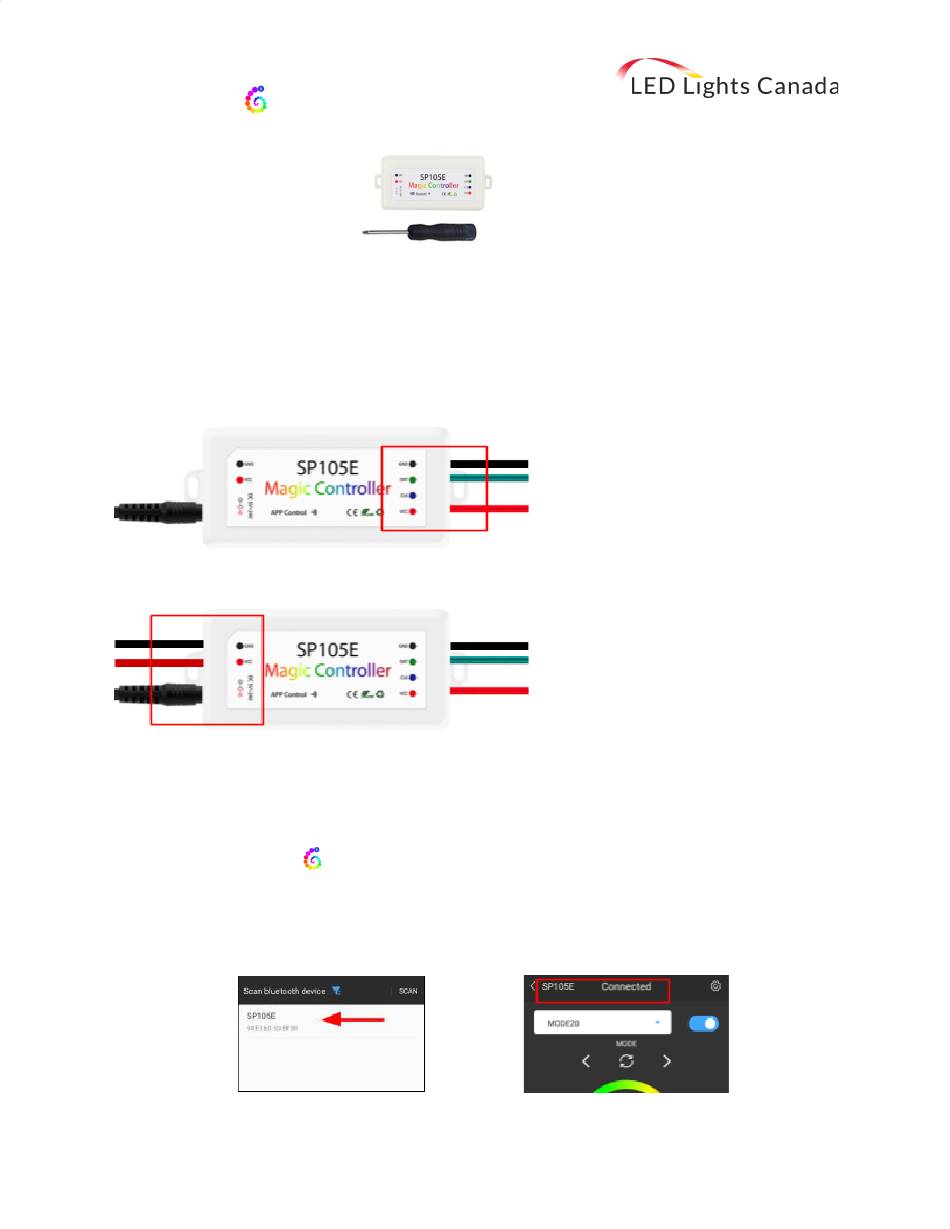

Figure 1.
Black​ wire to ​ G ND
Green​ wire to ​ D AT
Red​ wire to ​ V CC
Blue wire does not get connected
Figure 2.
Plug in the barrel connector OR wires from
the driver to the controller.
Negative​ to ​ G ND
Positive ​ t o ​ V CC
Toll Free​ : 1-800-677-2698
​ L ocal​ : 780-800-0059
​ E mail: ​
i nfo@ledlightscanada.com
DAT wire
