Operation Instructions of Controller
I. Specifications:
Working temperature: -20- 60 C
Output: TWO CMOS drain- open output
Max load current: 4A each color
Dimension: L120*W74*H38mm
RF frequency: 2.4GHz
II. Control Method:
1.

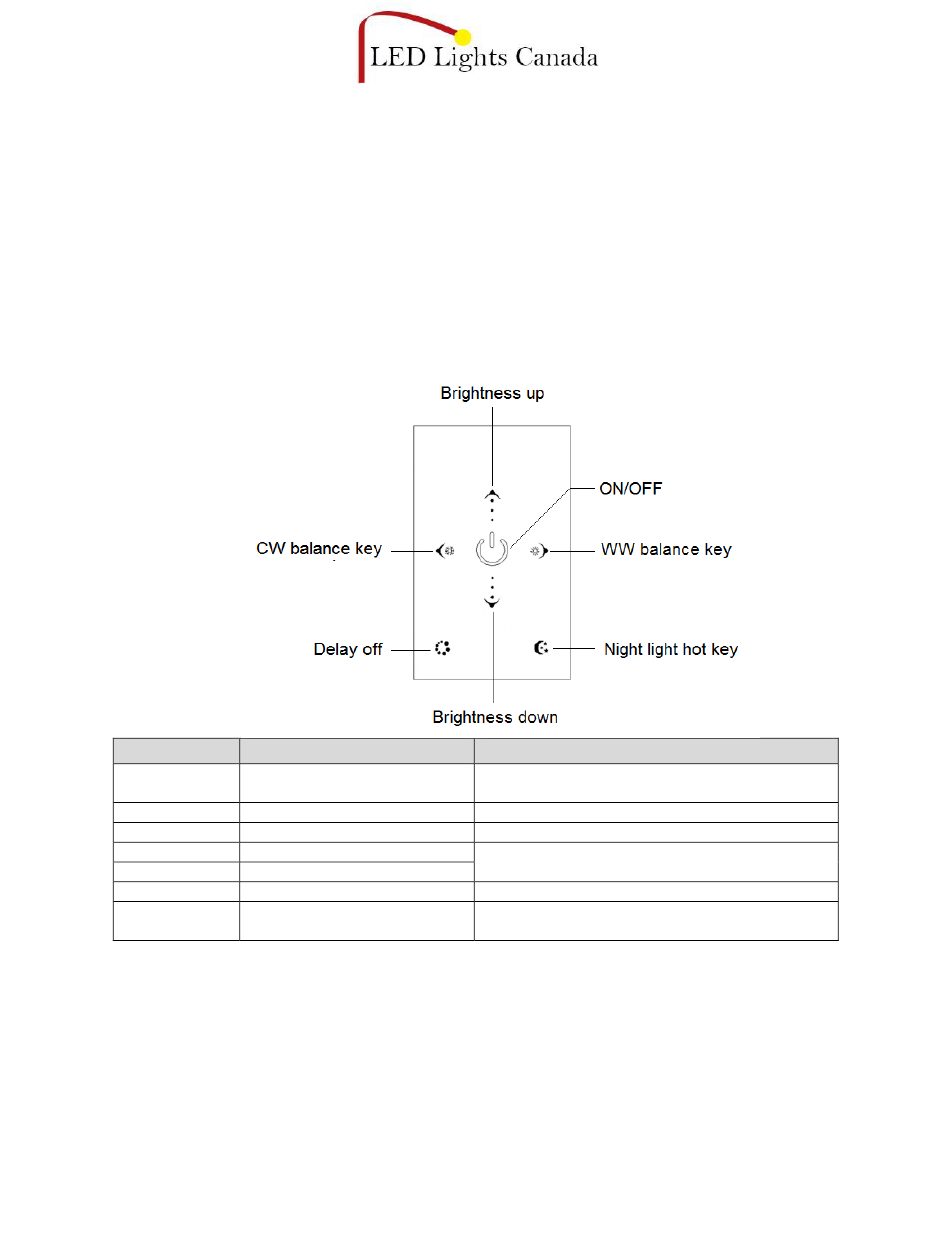

Function of the touch panel
Name
ON/OFF
Turn on/off the light.
Brightness +
Tap to increase brightness
Brightness -
Tap to decrease brightness
CW balance key
Balance to cool white
WW balance key
Balance to warm white
Delay off
Activates 30 second delay off
Night light hot key, the Brightness
Night light
is adjustable from 1%-10%.
Supply voltage: DC12~24V
Connecting Mode: Common anode
Net weight: 140g
Structure: 120-type US standards
Description
This button is backlit in blue making it easy to see in
the dark
Long- press for fast dimming
Long-press for fast dimming
Long-press for fast adjusting
output power remains constant when CCT balanced.
The brightness of night light can ONLY can be set
through the RF remote control.
Note
.
The sum of two channels
Advertisement
Related Manuals for LED Lights Canada CCT Wall Mount Touch Panel
Summary of Contents for LED Lights Canada CCT Wall Mount Touch Panel
- Page 1 Operation Instructions of Controller I. Specifications: Working temperature: -20- 60 C Supply voltage: DC12~24V Output: TWO CMOS drain- open output Connecting Mode: Common anode Max load current: 4A each color Net weight: 140g Dimension: L120*W74*H38mm Structure: 120-type US standards RF frequency: 2.4GHz II.
- Page 2 Each of the functions of the optional RF remote control is listed in the table below: Name Description For setting the night light and matching code with receiver. Under night light mode, press “Set Set button button” and hold on for 10 seconds will go into the night light setting. Press the set button again to save the setting and quit out.
- Page 3 Matching code operation If unique-control or new-coded-remote is needed, pairing the remote and the receiver as below operation instruction before using: 1. Step 1: Pressing key “set” and hold on, power on the controller, the load LEDs will be 50% brightness white as responding.
