Summary of Contents for 4x4 TOUGH 22-061229

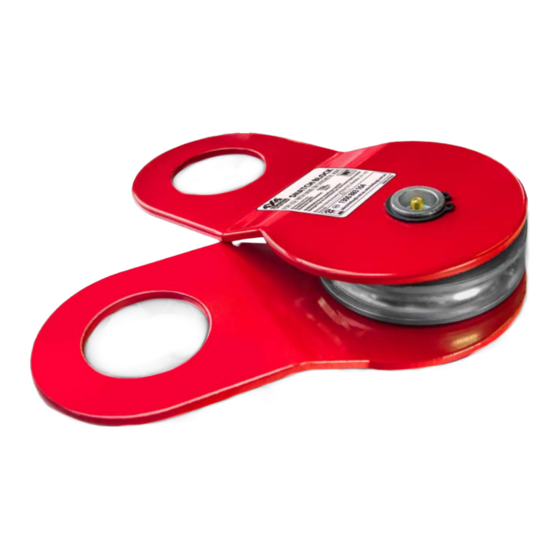

- Page 1 4WD SNATCH BLOCK INSTRUCTION MANUAL AFTER SALES SUPPORT www.4x4tough.com.au 1300 883 104 sales@4x4tough.com.au MODEL: 22-061229 PRODUCT CODE:709506 09/2022...
-
Page 2: Table Of Contents
Contents Page WELCOME ........................3 INTENDED USE .........................4 CONTENTS ........................4 SPECIFICATIONS.......................4 SAFETY WARNING ......................5 INSTRUCTIONS FOR USE ..................6-9 CARE AND MAINTENANCE ..................10 DISPOSAL ........................10... -
Page 3: Welcome
WELCOME Congratulations on choosing to buy a 4X4 TOUGH® product. In the event you require assistance with your purchase please contact one of our experienced customer service team on 1300 883 104, who will be happy to assist with your enquiry. -
Page 4: Intended Use
INTENDED USE The 4X4 TOUGH® Snatch block is designed to improve the functionality of a winch. If you have a winch, putting a snatch block in your recovery kit is essential. It provides a means to increase the winch’s pulling power, and also provides more options in self-recovery situations. -
Page 5: Safety Warning
SAFETY WARNING WARNING! Read and follow your Snatch Block instructions and safety precautions before using the snatch block. Under no circumstance should you exceed the snatch blocks rated working load. This could result in serious injury or death. • DO NOT use this product for lifting, climbing, or any life-safety use. -
Page 6: Instructions For Use
INSTRUCTIONS FOR USE “TFAS”; Think First Act Second. This is the golden rule with all recovery options. Take the time to access the situation before commencing the recovery. • To begin with nd a suitable anchor point. If the anchor point is a tree; place a tree trunk protector around the tree. - Page 7 BE AWARE! With every snatch block used in the winch pull, the overall pulling power of the winch is enhanced. With each additional pulley the speed with which the vehicle will move is decreased however, a slower and more controlled speed is often preferable when you’re stuck.
- Page 8 A snatch block has two primary functions in recovery winching. 1. Change the direction of your winch line when the anchor point is o set. 2. Increase the pulling power of your winch. USING A SNATCH BLOCK TO CHANGE PULLING DIRECTION Tree Tree Trunk Protector Winch hook...
- Page 9 USING A SNATCH BLOCK TO INCREASE WINCH PULLING POWER DOUBLE LINE SNATCH BLOCK Tree Winch Line Winch Hook Rated Bow Shackle Tree Trunk Protector Rated Bow Shackle Rated recovery point TRIPLE LINE SNATCH BLOCK Tree Trunk Protector Winch Line Rated Bow Shackle Tree SNATCH BLOCK Rated recovery point...
-
Page 10: Care And Maintenance
CARE AND MAINTENANCE STEP 1 Always inspect the Snatch Block before use for any damage. If the choker hole elongates (becomes oval-shaped), the maximum capacity has been exceeded and the Snatch Block should be immediately discarded and replaced. STEP 2 Using the grease nipple, grease the pulley pivot point with wheel bearing grease after each use. - Page 12 4WD SNATCH BLOCK...
