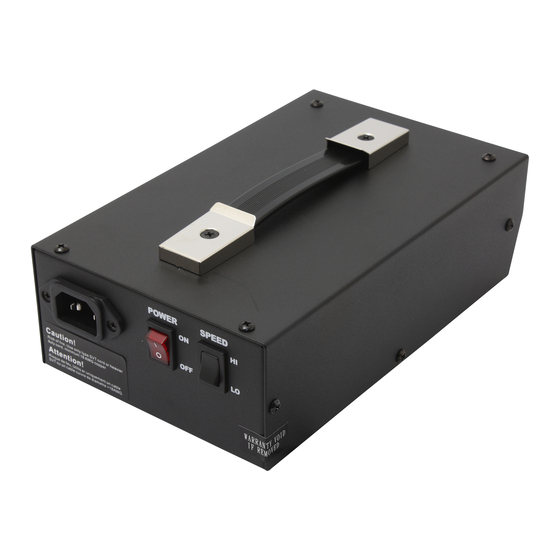

- Page 1 OPERATION AND MAINTENANCE MANUAL MYP40-500 (In: AC 100~240V Out: DC 40V) ANLIDAR INDUSTRIAL CO., LTD. http://www.anlidar.com Y2F040-3E-001...
- Page 3 WARNING Important safety information enclosed. Read all these instructions before placing tool in service or operation this tool and save these instructions. It is the responsibility of the employer to place the information in this manual into the hands of the operator. Failure to observe the following warnings could result in injury.
-
Page 4: Important Safety Instructions
Important Safety Instructions WARNING! Read all instructions Failure to follow all instructions listed below may result in electric shock fire and/or serious injure. The term “power tool” in all of the warning listed below refer to your mains operated (corded) power tool or battery operated (cordless) power tool. - Page 5 f) Keep cutting tools sharp and clean, properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. g) Use the power tools, accessories and tool bits etc., in accordance with these instructions and in the manner intended for the particular type of power tool, taking into account the working conditions and the work to be performed.
- Page 6 Operations Cautions Please read the operating manual thoroughly and comply with safety regulation to operate this Multi-Function Controller. Please grasp the plug of power cord while plugging in or out the plugs of connecting cord of Electric Screwdriver and power cord.
-
Page 7: Grounding Instructions
Grounding Instructions The tool should be grounded while in use to protect the operator from electric shock. The tool is equipped with a three-conductor cord and three-prong grounding-type plug to fit the proper grounding-type receptacle. The green (or green and yellow) conductor in the cord is the grounding wire. -
Page 8: Specifications
Specifications Model MYP40-500 Input AC 100~240V / 6.3A 50/60 Hz Output DC 40V , 220W Duty Cycle 1s ON / 3s OFF Outside Dimensions 213*133*68(mm) (mm) Weight (kg) 1.8 (main body) MYT-0320；MYT-0830；MYT-0205；MYT-TR0320；MYT-TR0830； MYT-TR0205 MY8-0205L；MY8-020P；MY8-TR0205L；MY8-TR020P Suitable Model MY8-EP0103L；MY8-EP0103LF；MYT-EP0205L；MY8-EP0103P； MY8-EP0103PF；MYT-EP0205P Servicing Maintenance and Inspection : The controller must be operated in top condition, one day working hour must be not more than eight hours. - Page 9 Anlidar is not responsible for customer modification of tools for applications on which Anlidar was not consulted. Repairs should be made only by authorized, trained personnel. Consult your nearest MYTORQ authorized service center. It is the responsibility of the employer to place the information in this manual into the hands of the operator.
- Page 10 MYP40-500...
