shelf
KING BED

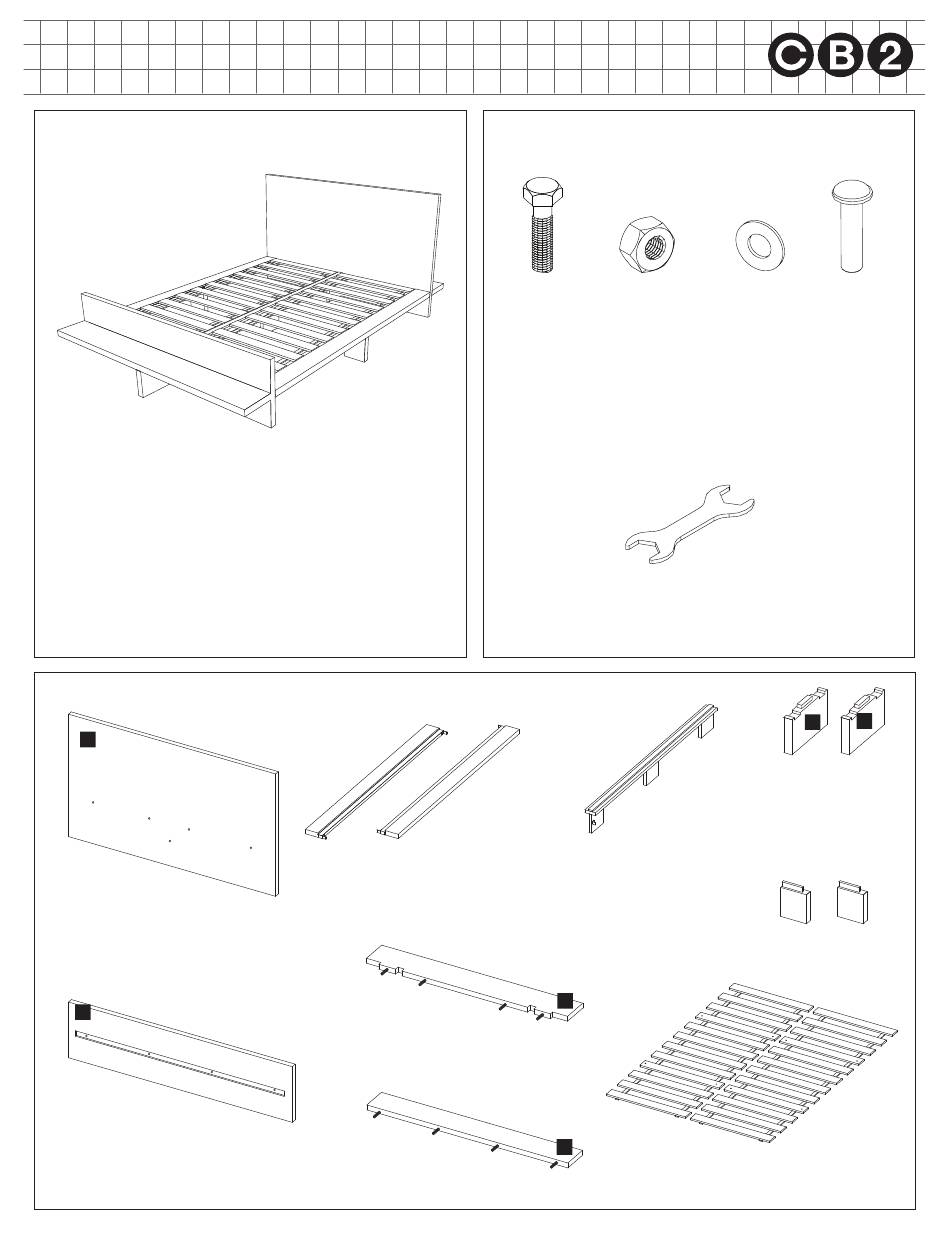

Thank you for purchasing the Shelf King Bed. This page
lists all the contents included in the box. Please take the
time to identify the hardware as well as the individual
components to this product. As you unpack and prepare
for assembly, place the contents on a carpeted or
padded area to protect them from damage.
Note: 2 people are required to safely assemble this product.
components
A
1- headboard
(
Labeled A)
B
1 - footboard
(
Labeled B)
Made in India - r06
2 - side rails
(1 left, 1 right)
1 - headboard
shelf (
Labeled A)
1 - footboard
shelf (
Labeled B)
Customer Service 800.606.6252 | Latest instructions available at www.cb2.com
hardware
2 - bolts
8 - nuts
Missing hardware?
Please call 800.606.6387 for replacements.
tools required
hex wrench (included)
1 - center rail
A
B
10 - washers
8 - pins
B
A
2 - shelf support
panels
(1 - Labeled A,
1- Labeled B)
2 - side rail
support panels
2 - slat assemblies
Page 1 of 4
Advertisement
Related Manuals for CB2 shelf
Summary of Contents for CB2 shelf
- Page 1 Missing hardware? Please call 800.606.6387 for replacements. tools required Thank you for purchasing the Shelf King Bed. This page lists all the contents included in the box. Please take the time to identify the hardware as well as the individual components to this product.
- Page 2 STEP 1: With assistance of another adult, carefully fit notched end of shelf support panel A into bottom of headboard shelf shown. STEP 2: Fit threaded studs of headboard shelf into corresponding holes and slot of head- board as shown.
- Page 3 Carefully fit notched end of shelf support panel B into bottom of footboard shelf shown. STEP 1: Fit dowels of footboard shelf into correspond- ing holes and slot of footboard as shown. Make sure headboard threaded stud is exposed on the other side of footboard.
- Page 4 KING BED Fit notched end of 1 side rail support into left and right side rails as shown. Make sure side rails are securely supported by side rail support panels. side rail support panel With assistance of another adult, place 2 slat assemblies onto side and center rails.
