1. Turn off the power before installation.
2. Drill two holes (6 mm Ø) and insert the
supplied dowels there. The distance
between the holes should be 67.5 mm
(Figure 1). Make sure that the dowels are
flush with the wall.
3. Open the base of the light by loosening
the three Allen screws (1) (Figure 1).
4. Pierce the rubber plug (2) and feed the
230 volt connection cable through the hole
that has now been created. Connect your
connection cable as shown in Figure 2.
5. Fix the luminaire to the wall using the
screws provided.
6. Now close the housing.
7. Turn the power back on. The installation
is now complete.
Subject to technical changes
LEDs Com GmbH, Dohrweg 2a, D-41066 Mönchengladbach, www.leds-com.de, Tel. +49 (0) 2161 - 5 75 99 76
English

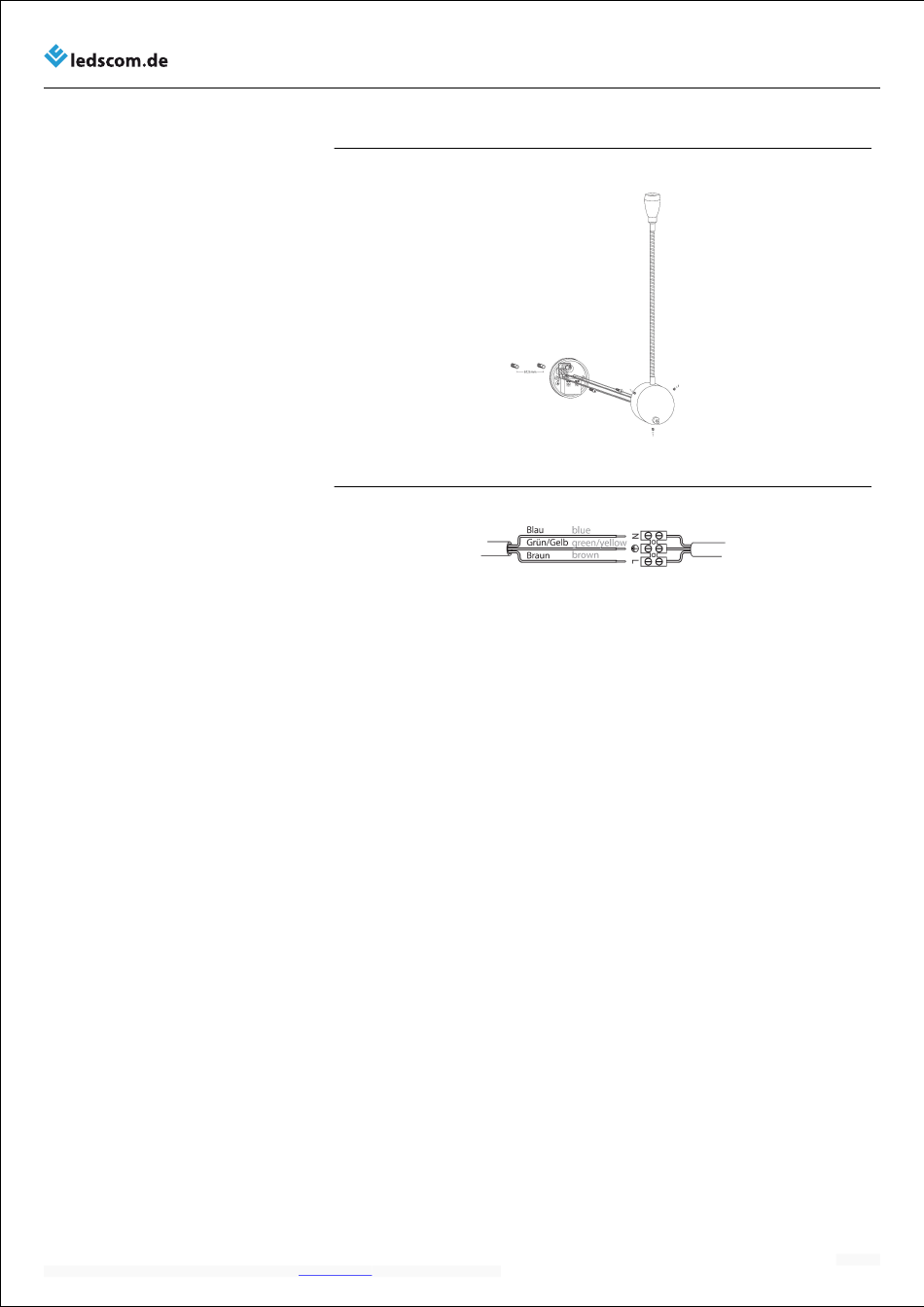

Figure 1
