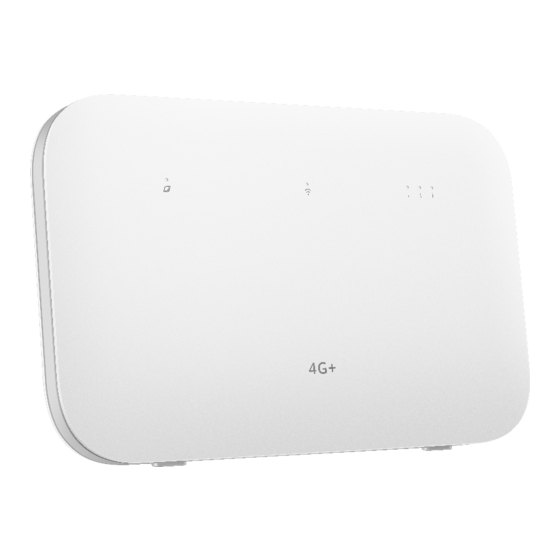

Soyea B622-335 Manual
  1. Manuals
  2. Brands
  3. Soyea Manuals
  4. Network Router
  5. B622-335
  6. Manual

Soyea B622-335 Manual

Hide thumbs Also See for B622-335:
Table of Contents

Advertisement

Quick Links

B622-335 LTE CPE
V100R001
Product Description
Issue
01
Date
2021-07-22
SOYEA TECHNOLOGY CO., LTD.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the B622-335 and is the answer not in the manual?

Questions and answers

NJOUONANG JUSTIN
March 11, 2025

Default admin password

0
1 comments:
Mr. Anderson
May 14, 2025

The default admin password for the Soyea B622-335 can be found on the nameplate on the router.

This answer is automatically generated

0

Subscribe to Our Youtube Channel

Related Manuals for Soyea B622-335

Summary of Contents for Soyea B622-335

  • Page 1 B622-335 LTE CPE V100R001 Product Description Issue Date 2021-07-22 SOYEA TECHNOLOGY CO., LTD.
  • Page 2 SOYEA TECHNOLOGY CO., LTD. Address: BUILDING 11th, SOYEA SOFTWARE PARK, NO.1 JIAO GONG ROAD, HANG ZHOU, 310012, CHINA Copyright © SOYEA TECHNOLOGY CO., Issue 01 (2021-07-22)
  • Page 3 The document is an invitation to offer but not an offer. It is intended to describe the general features and functions of a product. The features and functions of certain products may vary with the requirements of customers. History Issue Date Details 2021-07-22 Initial official release. Copyright © SOYEA TECHNOLOGY CO., Issue 01 (2021-07-22) LTD.
  • Page 4 Firmware Over the Air HSPA High Speed Packet Access HSPA+ High Speed Packet Access Evolution GPRS General Packet Radio Service IEEE Institute of Electrical and Electronics Engineers Internet Protocol IPSec Internet Protocol Security Copyright © SOYEA TECHNOLOGY CO., Issue 01 (2021-07-22) LTD.
  • Page 5 Real-time Transport Control Protocol Real-time Transport Protocol SAMBA System for Advanced Mobile Broadband Applications Secondary Component Carrier Service Control Point SDRAM Synchronous Dynamic Random Access Memory Session Description Protocol Serving Gateway Copyright © SOYEA TECHNOLOGY CO., Issue 01 (2021-07-22) LTD.
  • Page 6 Virtual Private Network Wide Area Network Wi-Fi Wireless Fidelity Wi-Fi Multimedia WPA/WPA2-PSK Wi-Fi Protected Access/Wi-Fi Protected Access II - Pre-Shared Key WPA2-PSK Wi-Fi Protected Access II - Pre-Shared Key Wi-Fi Protected Setup Copyright © SOYEA TECHNOLOGY CO., Issue 01 (2021-07-22) LTD.

  • Page 7: Table Of Contents

    3.8 Multi-APN .................................. 18 3.9 5GHz Preferred ................................18 3.10 HiLink ..................................18 3.11 Customer management .............................. 18 3.11.1 WebUI ..................................18 3.11.2 The device management app ..........................19 3.12 Operator maintenance ............................... 19 Copyright © SOYEA TECHNOLOGY CO., Issue 01 (2021-07-22) LTD.
  • Page 8 5.1 Standards and Communication Protocols ........................22 5.1.1 Standards and Communication Protocols of the Product ..................22 5.1.2 Standards and Communication Protocols of the Wireless Uu Interface ..............22 6 Packing List ..........................23 Copyright © SOYEA TECHNOLOGY CO., Issue 01 (2021-07-22) LTD.

  • Page 9: Product Overview

    1 Product Overview Product Overview The LTE CPE B622-335 is a Long Term Evolution (LTE) wireless gateway for multiple users in household or small office environments. It enables users to access the Internet. The B622-335 supports 3GPP Release 11 with LTE CAT 6+. The supported service functions are as follows: ...
  • Page 10 B622-335 LTE CPE Product Description 1 Product Overview Issue01 (2021-07-22) Copyright © SOYEA TECHNOLOGY CO., LTD.

  • Page 11: Technical Specifications

    B622-335 LTE CPE Product Description 2 Technical Specifications Technical Specifications 2.1 Hardware Specifications Table 2-1 Technical specifications of the B622-335 main unit Item Description Technical 3GPP Release 11 standard IEEE 802.3/802.3u Wi-Fi IEEE 802.11a/b/g/n/ac/ax Working B1/B3/B7/B8/B20/B38/B40/B41/B42/B43 band/frequency UMTS B1/B8 Wi-Fi 2.4 GHz: 2421 MHz -2483.5 MHz,...
  • Page 12 Flash slowly: A pairable HiLink device is detected. Flash quickly: HiLink pairing is in progress/WPS connection is in progress. Off: Wi-Fi is disabled.  The indicator starts to flash slowly only when B622-335 detects a new HiLink device.  One group of signal strength indicators Signal reception available (more indicators mean better reception).
  • Page 13 16.5 MCS7 18.5 18.5 MCS0 MCS7 11ac 16.5 16.5 MCS0 11ac 16.5 16.5 MCS8 11ac MCS0 11ac MCS9 11ac MCS0 11ac MCS9 11ax 16.5 16.5 MCS0 11ax MCS11 11ax MCS0 11ax MCS11 Issue01 (2021-07-22) Copyright © SOYEA TECHNOLOGY CO., LTD.
  • Page 14 5G 802.11ac 40M: -64 dBm  5G 802.11ac 80M: -60 dBm  5G 802.11ax 20M: -59 dBm  5G 802.11ax 40M: -57 dBm  5G 802.11ax 80M: -53 dBm Power < 24 W consumption Issue01 (2021-07-22) Copyright © SOYEA TECHNOLOGY CO., LTD.

  • Page 15: Antenna Specifications

    Frequency  B1: UL 1920-1980 MHz, DL 2110-2170 MHz  B3: 1710-1785 MHz, DL 1805-1880 MHz  B7: UL 2500–2570 MHz, DL 2620–2690 MHz  B8: UL 880-915 MHz, DL 925-960 MHz Issue01 (2021-07-22) Copyright © SOYEA TECHNOLOGY CO., LTD.
  • Page 16 B20: -2.5 dB  B38: -2.9 dB  B40: -1.9 dB  B41: -2.9 dB  B42: -2.9 dB  B43: -2.9 dB UMTS  B1: -1.8 dB  B8: -2.3 dB Issue01 (2021-07-22) Copyright © SOYEA TECHNOLOGY CO., LTD.

  • Page 17: Build-In Wi-Fi Antenna

    1.3 dBi TX/RX 1T2R Polarization Linear polarization 2.2.2 Build-in Wi-Fi Antenna Table 2-4 Wi-Fi 2.4 GHz antenna specifications Item Description Frequency 2421 MHz-2483.5 MHz 50 Ω Input impedance Standing wave ratio < 2 Issue01 (2021-07-22) Copyright © SOYEA TECHNOLOGY CO., LTD.

  • Page 18: Software Specifications

    The lease can be configured.  Supports the DHCP server and DNS relay.  Supports NAT and NAPT (compliant with RFC2663, RFC3022, and RFC3027).  Supports cone NAT.  Supports Symmetric NAT. Issue01 (2021-07-22) Copyright © SOYEA TECHNOLOGY CO., LTD.
  • Page 19 Supports RTP/RTCP (RFC1889/RFC1890/RFC3550). Supports in-band/SIP info/RFC2833 DTMF. Supports the following phone features:  Caller ID generation  Call waiting  Call forwarding (unconditional, busy, and no answer forwarding)  Call hold  Three-way conference Issue01 (2021-07-22) Copyright © SOYEA TECHNOLOGY CO., LTD.
  • Page 20 Port triggering (Special Application)  DMZ service  UPnP service  ALG settings  10/100/1000 Mbps auto-negotiation  MDI/MDIX auto-sensing  IEEE 802.3/802.3u-compatible Wi-Fi Broadcasts and hides service set identifiers (SSIDs) Complies with IEEE 802.11b/g/n/a/ac/ax Issue01 (2021-07-22) Copyright © SOYEA TECHNOLOGY CO., LTD.
  • Page 21 Chrome 60.0 with latest updates.  Safari 10.0 with latest updates.  Opera 51.2 with latest upgrades. Your computer's hardware system should meet or exceed the recommended system requirements for the installed OS version. Issue01 (2021-07-22) Copyright © SOYEA TECHNOLOGY CO., LTD.

  • Page 22: Services And Applications

    3.1 Data Services The B622-335 can access the Internet through mobile networks and Ethernet networks. By connecting to the B622-335 using Wi-Fi or a network cable, users can obtain access to high-speed Internet services and establish a local area network (LAN).

  • Page 23: Accessing The Internet Through An Ethernet Network

    Product Description 3 Services and Applications 3.1.2 Accessing the Internet through an Ethernet Network The B622-335's LAN/WAN port can be connected to a wall-mounted Ethernet port using a network cable. Figure 3-2 Accessing the Internet through an Ethernet network 3.2 Voice Services The B622-335 provides one telephone port that can be connected to telephones for calling.

  • Page 24: Mac Filtering

    B622-335 LTE CPE Product Description 3 Services and Applications 3.4.2 MAC Filtering The B622-335 supports configuration of the Media Access Control (MAC) address to restrict network access. 3.4.3 Wi-Fi Authentication The gateway supports the following user authentication protocols for Wi-Fi: ...

  • Page 25: Ip Pass-Through

    When the IPv6 only (CLAT) function is enabled, NAT-based functions (like DMZ/Port Forwarding/Port tigger) cannot be used. When an IPv4 device accesses the Internet, the performance is degraded because packets need to be packetized and unpacked. However, IPv6 devices are not affected. Issue01 (2021-07-22) Copyright © SOYEA TECHNOLOGY CO., LTD.

  • Page 26: Multi-Apn

    3.10 HiLink  Supports up to 5 HiLink devices to connect to B622-335 through the WPS button to create an expanded network.  Supports quick connection between a HiLink device and B622-335 through the WPS button.

  • Page 27: The Device Management App

    CPE software update/parameters configuration via TR-069. Internet IPv4 Auto - Configuration Server(ACS) 3.13 FOTA The B622-335 supports the FOTA feature, which allows users to remotely update the device firmware through the FOTA server. Issue01 (2021-07-22) Copyright © SOYEA TECHNOLOGY CO., LTD.

  • Page 28: System Structure And Scenario Constraints

    The following describes the modules shown in Figure 4-1.  LTE access function: The B622-335 adopts the LTE access technology at the WAN side.  Wired broadband access: Wired WAN ports are used on the WAN side, and PPPoE and DHCP access are supported.

  • Page 29: Scenario Constraints

    (SOHO). The B622-335 is not an enterprise-grade product. It cannot be used by medium- or large-sized enterprises or in scenarios with high network reliability requirements, such as banks, securities agencies, traffic control, and communications device backhaul.

  • Page 30: Technical References

    RFC791, RFC1122, RFC1071, RFC1141, RFC1624, RFC792, RFC950, RFC1256 ICMP RFC792, RFC950, RFC1256 RFC793 RFC768 DHCP RFC1531, RFC1533 RFC1631, RFC2663, RFC3022, RFC3027 5.1.2 Standards and Communication Protocols of the Wireless Uu Interface This device supports 3GPP Release 11. Issue01 (2021-07-22) Copyright © SOYEA TECHNOLOGY CO., LTD.

  • Page 31: Packing List

    Table 6-1 Packing list Description Quantity Remarks Wireless Gateway Standard Power supply adapter Standard Quick Start Standard Ethernet cable Optional Phone cable Optional Warranty card Optional The B622-335 wireless gateway has an optional external antenna. Issue01 (2021-07-22) Copyright © SOYEA TECHNOLOGY CO., LTD.
