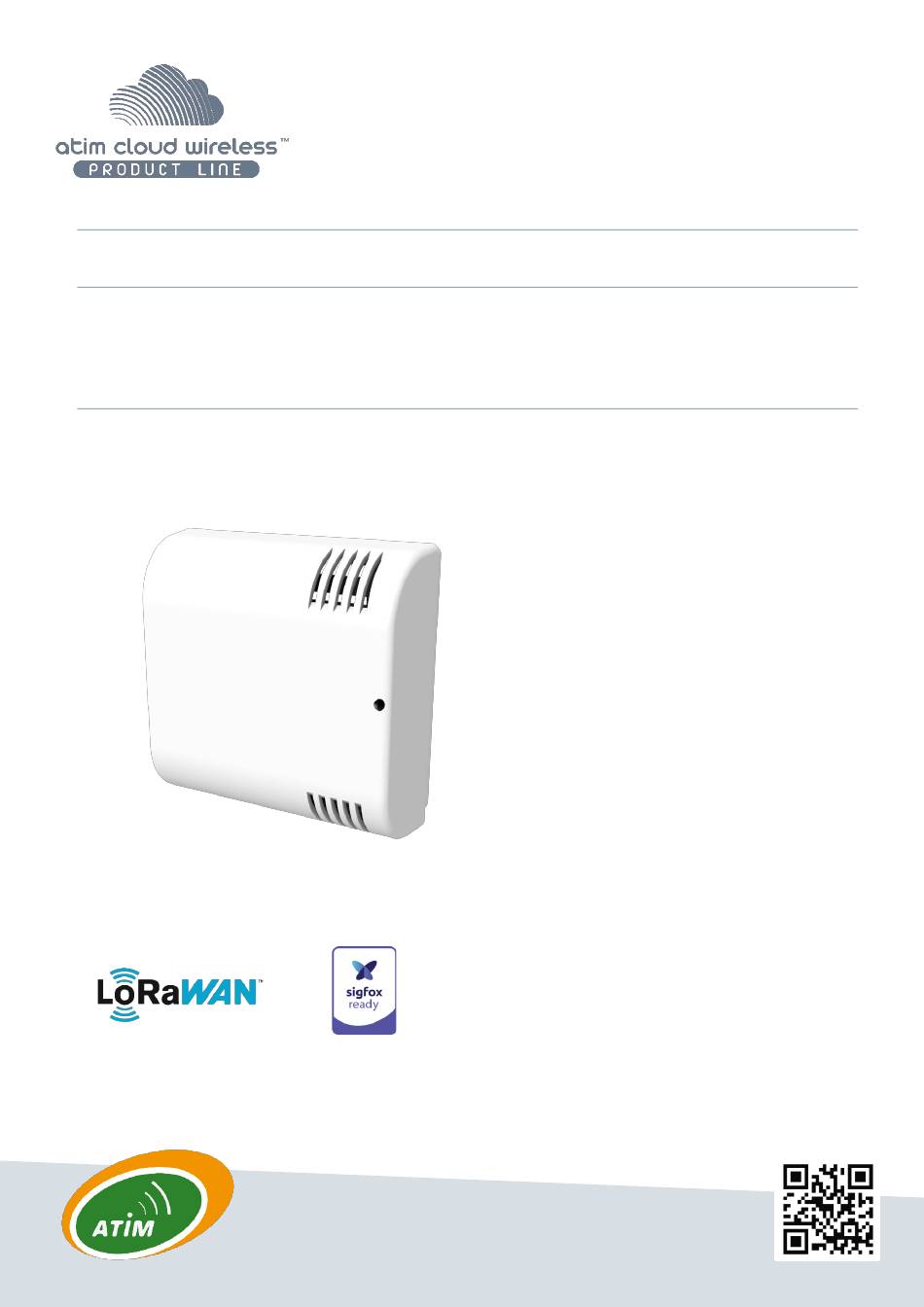

- Page 1 Atim Cloud Wireless ® Temperature, humidity and air quality (CO2, VOC) User Guide Concerned models: ACW/LW8-THAQ ACW/SF8-THAQ ATIM Radiocommunications www.atim.com Chemin des Guillets info@atim.com 38250 Villard de Lans France...
-
Page 2: Table Of Contents
Table of contents THIS USER GUIDE DEALS WITH THE FOLLOWING REFERENCES ...................... 4 DOCUMENT VERSION HISTORY ..............................4 DISCLAIMER ....................................5 TRADEMARKS AND COPYRIGHT ..............................5 DECLARATION OF COMPLIANCE ..............................5 ENVIRONMENTAL RECOMMENDATIONS ............................6 ................................6 XPLOSIVE ATMOSPHERE ................................... 6 NVIRONMENT ...................................... - Page 3 WAN ................................27 IGFOX AND Classic frame .................................... 27 Different frames’ type ................................28 Measurement’s frame ................................28 Alert measurement frame ............................... 30 Keep alive frame ..................................31 Error and alarm generic frame ..............................32 ................................34 XAMPLES OF FRAMES Measurement frame ................................
-
Page 4: This User Guide Deals With The Following References
This user guide deals with the following references Product Version (on the Product references product label) LoRaWAN ACW/LW8-THAQ Sigfox ACW/SF8-THAQ Document version history Concerned Version Date Description Author software version 23/11/2020 Document creation V0.0.1 Correction of the datalogging downlink frame 10/12/2020 V0.0.1... -
Page 5: Disclaimer
ATIM SARL in France. The other trademarks mentioned in this document are the property of their respective owners. Declaration of compliance All ACW Atim Cloud Wireless® products comply with the regulatory requirements of the R&TTE Directive (1999/5/EC), article 3: 1 SAFETY (Article 3.1a of the 1999/5/EC Directive) NF EN60950-1 Ed. -
Page 6: Environmental Recommendations
Environmental recommendations a. Explosive atmosphere Except for the ACW-ATEX line specifically intended for this purpose, do not use ACW radio modems in the presence of flammable gases or fumes. Using the equipment in such an environment constitutes a safety hazard. b. -
Page 7: Radio
General hazard – Failure to follow the instructions presents a risk of equipment damage. Electrical hazard – Failure to follow the instructions presents a risk of electrocution and physical injury. Direct-current symbol WARNING: do not install this equipment near any source of heat or any source of humidity. WARNING: for your safety, it is essential that this equipment be switched off and disconnected from mains power before carrying out any technical operation on it. -
Page 8: Technical Features
Technical features a. Product Dimensions 80 x 80 x 35 mm Antenna Integrated (¼ d’of wave) -40°C to +125°C (operation) Temperature -40°C to+150°C (storage) Mounts to Wall Casing Indoor Power supply 1 battery-pack [7,2 Ah] Weight 200 g Frequency 863 – 870 MHz Power 25 mW (14 dBm) Sigfox : 100 bits/s... - Page 9 VOC Index Plage 0 to 500 Resolution IMPORTANT NOTE The VOC index represents the overall concentration of all VOCs (volatile organic compounds) and not a specific concentration of a given compound. The index is defined on a scale from 0 to 500 (0 for almost zero VOC concentration and 500 for very high VOC concentration).
-
Page 10: Casing
Casing a. Space requirements <- Mounting holes -> fixations b. Mounts to ACW-THI modems are attached to a wall with two screws that fit into the two mounting holes on the back of the box. The vents on the cover must be on the right, in the same direction as the photo opposite. -
Page 11: Installation
c. Installation For optimal results, it is recommended to install the box without environmental obstruction and to place it at a height of approximately 1m50. For information, the antenna is integrated in the box. It must be mounted on a vertical support, or fixed to a wall. -
Page 12: Operation
Operation a. Mode of operation The new generation 2020 ACW (Atim Cloud Wireless®) products are all based on the same internal software (Firmware) and bring interesting new features such as the selection and visualization of their operating mode. To know the status of the product, you just must pass a magnet briefly (<2 sec) against the QRCODE label or on the Pepper... -
Page 13: Putting The Product Into Service
b. Putting the product into service Unless otherwise requested, ACW products are delivered with batteries connected and set to "deep sleep" mode. To place the product in its operating mode, hold a magnet against the QRCODE label for 6 seconds. During these six seconds, the product's LED should blink WHITE and then... -
Page 14: Sending A Test Frame
For a LoRaWAN product • In the default LoRAWAN Class A operating mode, (see Radio settings chapter), if at the end of the 5 minutes pairing phase, no network has been reached, then the product goes into standby and will restart a 5-minute pairing phase 24 hours later. -
Page 15: Substitution To The Magnet
g. Substitution to the magnet You can use the push button on the ACW-MR4 card to perform the same actions as the magnet (activate or deactivate the product, activate / deactivate Bluetooth). To do this, open the case and exert two simultaneous presses on the push button. A white flashing indicates that the button now acts as the magnet (button pressed = magnet approached, refer to Product commissioning,... -
Page 16: Night Mode
j. Night mode The ACW-THAQ allows to stop measurement and radio emission during a given time slot (this time slot is customizable). The primary purpose of this feature is to reduce the power consumption of the sensor throughout the day to increase its autonomy In operation, the sensor will therefore automatically stop the radio emission from the start time configured for this mode and will restart, again automatically, at the configured end time. -
Page 17: Acw Configurator
ACW configurator a. Compatible configurator version For a THAQ with the following application software version: Use the version of ACW Configurator: Sigfox: V0.0.1 V5.2.8 ot higher LoRaWAN: V0.0.1 Download and install the configuration software setup ’setupACW.exe‘ at: https://www.atim.com/wp-content/uploads/documentation/CONFIGURATEUR/ACW/configurateur-acw.exe NOTE The product must be in its Configuration mode to be able to be detected by the configurator. To do this, you must first put the product into deep standby mode (magnet close to 6 seconds), wait about twenty seconds for the entry into deep standby to take effect, then wake up the product (magnet 6 seconds to new). -
Page 18: Acw-Thaq Setup
b. ACW-THAQ setup Emission and sampling period of the frame The transmission period corresponds to the time interval between each sending of a measurement frame. This period can be configured from 10 min to 255 h and its default value is 1 hour. In addition, it is possible to configure the number of samples in a frame . -
Page 19: Keep Alive Frame Period
Keep alive frame period A life frame can be sent periodically . This frame will raise the supply voltage of the product. The value of this period can be configured from 1 hour to 1 month. By default, the value is set to 4 days. Frame timestamp It is possible to deactivate / activate the time stamping of all radio frames WARNING... -
Page 20: Product Clock
For a Sigfox device 1. Sigfox (default): Modulation and Sigfox Protocol used. This is the product's default mode. This mode requires access to the Sigfox network to operate. 2. Local mode: The modulation of the frames switches to FSK. In this mode, you must choose the radio channel on which the product will transmit. -
Page 21: Configuration Of Sensors
Configuration of sensors Temperature and humidity On the ACW-THAQ, there is an embedded temperature & humidity sensor. Here are the configuration parameters available for this sensor − Enabling/disabling of the sensor. − Temperature & humidity thresholds − Temperature compensation on two points The thresholds can be configured by a high and low threshold according to a configurable hysteresis and duration of overrun. -
Page 22: Air Quality (Voc And Co 2 )
Air quality (VOC and CO Two sensors are present for the quality measurement: a first for the measurement of the CO2 concentration, the second for the measurement of VOCs (Volatile Organic Compounds). For each one, you will find the following configuration elements: −... -
Page 23: Co 2 Calibration
Calibration Automatic calibration The CO sensor has an automatic self calibration process which enable the CO calibration every 48hours. We cannot disable the automatic self-calibration. WARNING In order to have a efficient automatic self-calibration, the product shall be exposes to fresh air (around 420ppm) between two self-calibration (it means once every 48hours). -
Page 24: Configuration Validation
Configuration validation After having filled in all the configuration parameters, it is imperative to click on the “Apply to ACW” button to send the configuration to the product It is also possible at any time to read the current configuration of the product which will update the parameters on the configurator or restore the default configuration of the product. -
Page 25: Factory Settings
c. Factory settings Radio frames settings Radio frame emission period: 10 minutes Number of samplings: 1 History depth: 1 General settings Keep alive frame emission period: 4 days Timestamp: disabled Radio parameters: LoRaWAN Class A (for a LoRAWAN product) / Sigfox (For a Sigfox product) Sensors’... -
Page 26: Update Of Acw
d. Update of ACW When you are connected via Bluetooth Low Energy to the product, it is possible to update the various software that makes it up. To do this, go to the menu Tools->Updater (CTRL+U) ATIM_ACW-THAQ_UG_FR_V1.7... -
Page 27: Uplink Frames Format
Uplink frames format a. Sigfox and LoRaWAN Trame Uplink Byte 1 Byte 2 . . . Byten Frame-header Frame-specific data We can differentiate three types of frames: • Classic frame; New generation: Very close to the old frames, the difference is that you can activate the timestamp. -
Page 28: Different Frames' Type
Different frames’ type Type of frme Size Description 0x00 Reserved 0x01 4 octets Keep alive frame 0x02 0 octets Downlink request for network testing (Only Sigfox) 0x03 Reserved 0x04 Reserved 0x05 1 octet Test frame with counter 0x06 Variable (Cfg box) Response to a setup frame. 0x07 Variable (Cfg box) Response to a command frame. - Page 29 For each channel, a header is inserted afterwards and is constituted as follows: Byte2 Channel header Bit7 Bit6 Bit5 Bit4 Bit3 Bit2 Bit1 Bit0 Reserved Numbers of channel Type of measurement Type of possible measure Measure Unit Data size Data type Descriptions type Temperature in hundredth of Celsius Degree...
-
Page 30: Alert Measurement Frame
WARNING A received temperature of 0x8000 corresponds to a measurement error. This is often due to an improperly connected cable. Alert measurement frame Byte1 - Header Bit7 Bit6 Bit5 Bit4 Bit3 Bit2 Bit1 Bit0 Timestamp Measure Reserved Alert frame generation ment = 0x0d frame... -
Page 31: Keep Alive Frame
Keep alive frame The life frame is sent at regular intervals according to the configuration applied (by default 4 days) and contains the battery levels of the product when empty (the product does nothing) and when charging (the product is transmitting a frame radio). -
Page 32: Error And Alarm Generic Frame
Error and alarm generic frame Byte1 - Header Bit7 Bit6 Bit5 Bit4 Bit3 Bit2 Bit1 Bit0 Timestamp Measureme Reserved Error frame generation nt frame = 0x0e If the Timestamp is activated, 4 bytes with the Timestamp value will be preceded by the header (byte 1). For each error message, a header is inserted and is formed as follows: Byte2 - Error frame header Bit7... - Page 33 0x8C ERR_ROM ROM is corrupted 0x8D ERR_RAM RAM is corrupted 0x8E ERR_ARM_INIT_FAIL Radio module initialization has failed 0x8F ERR_ARM_BUSY The module is already busy (possibly not initialized) 0x90 ERR_ARM_BRIDGE_ENABLE The module is in bridge mode, cannot send data by radio 0x91 ERR_RADIO_QUEUE_FULL Radio queue is full...
-
Page 34: Examples Of Frames
b. Examples of frames Measurement frame With disabled timestamp, there is no historic and the sampling number is 1 (Temperature and humidity exclusively): Octet 0xA0 0x08 0x09 (new generation (channel 0, measurement 0x08 0x85 (channel 0, measurement 0x17 0xDE measurement frame, no type: temperature) type: humidity) history, 1 sampling) -
Page 35: Alert Measurement Frame
Now with a sampling number of 2: Octet 2 et 3 0x08 0xA1 0x09 (channel 0, (new generation 0x003C (channel 0, measurement 0x01 0x2C 0x08 0xA4 0x22 0x13 0x17 0xDE measurement frame, no (emission period) measurement type: history, 2 samplings) type: humidity) temperature) Bytes 2 and 3 indicate the transmission period, here 60 minutes (so a sample is measured every 30 minutes). -
Page 36: Downlink
Downlink This functionality is available on ACW-THAQ fulfilling the following conditions: Application software: Radio firmware: Sigfox version V0.0.1 V5.9.3.2 LoRaWAN version V0.0.1 V5.1.1 The operation of the Downlink is explained in the document ATIM_ACW-DLConfig_UG_FR_v1.4, relating to version V1.2.0 of the ATIM Downlink Protocol (see this document for all parameters and commands common to all products). The parameters specific to ACW-THAQ are as follows: a. -
Page 37: Activation Of The Sensors
b. Activation of the sensors Byte 1 Byte 2 Parameter code Parameter code 0x15 0b00000XYZ For byte 2, the value of the x, y and z bits indicates whether a sensor is activated or not. When one of these bits is 1, the sensor is activated; when it is zero, the sensor is disabled. The Z field enables / disables the temperature-humidity sensor. -
Page 38: Threshold Configuration
c. Threshold configuration Byte 2 3 4 5 6 7 8 9 Parameter code 0xD6 (temperature threshold) 0xD7 (humidity Threshold Tx threshold) 0xDA (VOC threshold) 0XDE (CO threshold) High threshold value field: value (in hundredths ° C or% RH) triggering the high threshold (Little Endian encoding) Low threshold value field: value (in hundredths °... -
Page 39: Coefficient
For an offset of -1°C, the value will be -100 = 0x9CFF. Coefficient Parameter code (Byte 1) Byte 2 Byte 3 0x59 (temperature coefficient) Value The multiplication coefficient is represented by the "Value" field in the table above. The coefficient value must be sent in Little Endian encoding and can be between 0 and 10,000 (this value is divided by 1000 by the product). -
Page 40: Led Indicator Threshold Configuration
g. LED Indicator threshold configuration Byte 1 Byte 2 Byte 3 Byte 4 Byte 5 Parameter code Parameter value Parameter value Parameter value Parameter value 0x9F 0xaa 0xbb 0xcc 0x00 The value of byte 2 represents the limit value between GREEN and YELLOW flashing. -
Page 41: Reserved Codes For Futures Software Evolutions
Byte 6 => 0x06 / Byte 7 => 0x15 for end time i. Reserved codes for futures software evolutions Byte 1 Byte 2 Parameter code Parameter value 0x10 0x08 0x11 0x00 WARNING Do not modify these values. ATIM_ACW-THAQ_UG_FR_V1.7... -
Page 42: Technical Support
Technical support For any further information or technical question, you can open a ticket on our technical support dedicated webpage. ATIM_ACW-THAQ_UG_FR_V1.7...
